AMMCO • 3

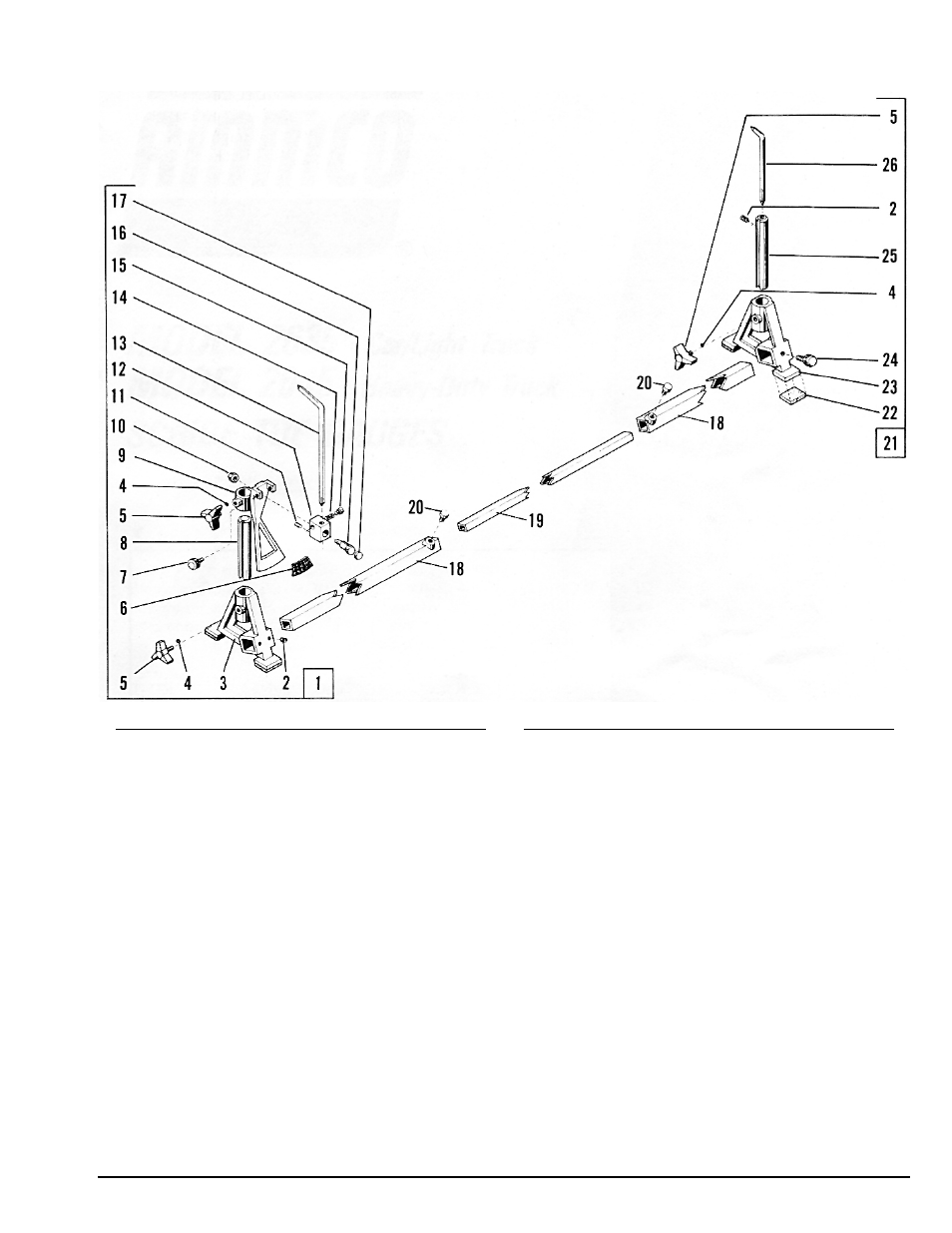

Parts Identification
Item
Part No.
Qty.
Description
1
924222
1
Gauge Head Assembly,
Car
924217
1
Gauge Head Assembly,
Truck
2
903180
2
Screw, Set Cup Point
3
924221
1
Leg, Car
924216
1
Leg, Truck
4
910745
3
Plug
5
906854
3
Screw, Lock
6
924210
1
Scale
7
907838
1
Screw, Thumb
8
924220
1
Post, Pointer Car
924214
1
Post, Pointer Truck
9
924215
1
Quadrant
10
925640
1
Nut, Lock
11
900212
1
Screw, Set
12
924212
1
Pivot, Pointer
13
924213
1
Pointer
14
920688
1
Spring, Plunger
15
907824
1
Plunger, Pointer
16
924211
1
Screw, Shoulder
17
923584
1
Cover, Lock Knob
Item
Part No.
Qty.
Description
18
907881
*2
Bar, Head
19
907888
1
Bar, Scribe
20
907890
*2
Screw, Thumb
21
924227
1
Scribe Assembly, Car
924226
1
Scribe Assembly, Truck
22
925142
4
Pad, Foam
23
924223
1
Leg, Car
924216
1
Leg, Truck
24
907838
1
Screw, Thumb
25
924228
1
Shaft, Scriber Car
924225
1
Shaft, Scriber Truck
26
924224
1
Scriber
*Quantity 1 For Cars
