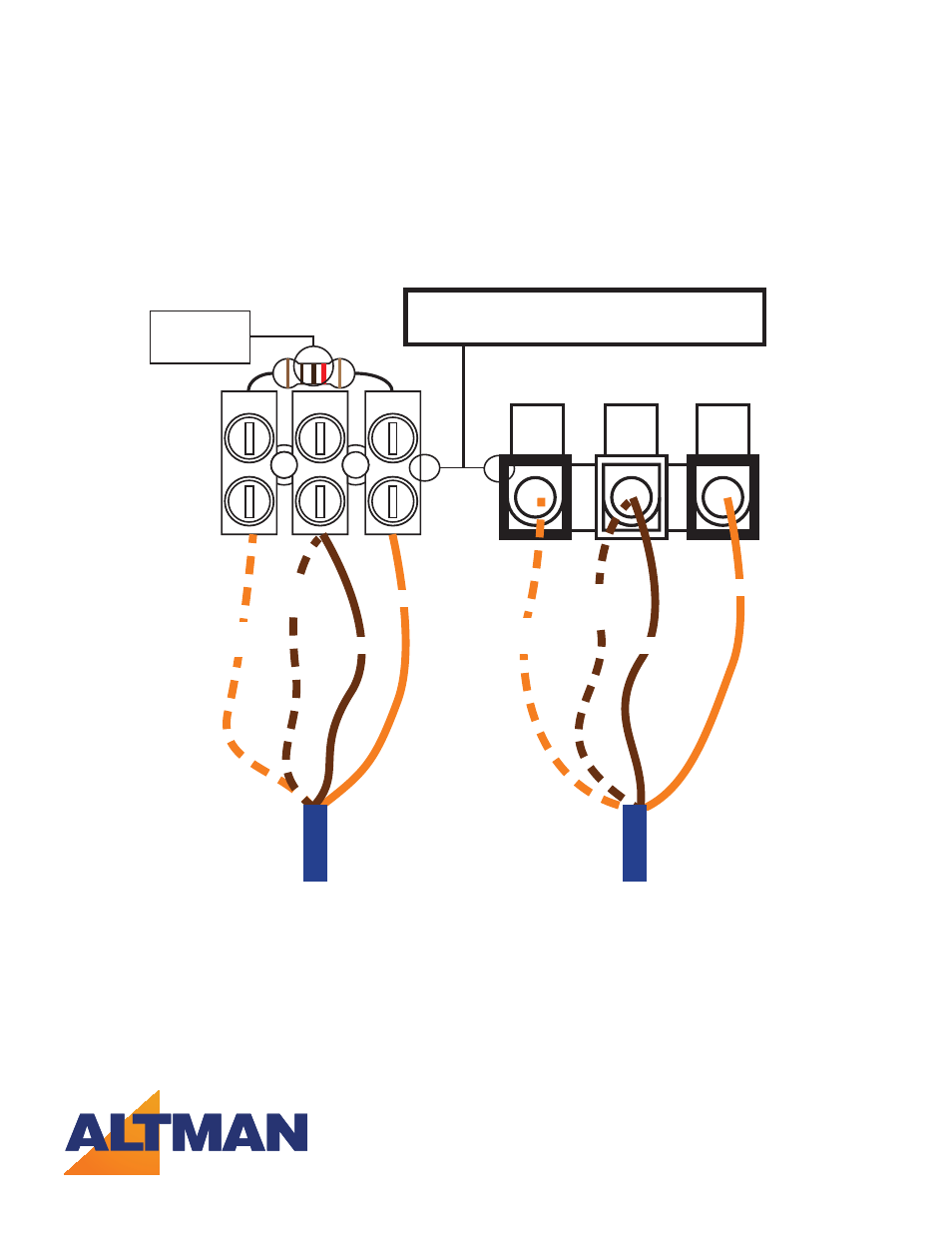

Chalice DMX Terminator Wiring
Chalice DMX Terminator
120 Ohm
Resistor
White/
Orange
White/
Orange
White/
Brown
White/
Brown
Brown
Brown
Orange
Orange
Cat5 Cable from last
Chalice in the line.
FRONT
TOP
DMX termination for Chalice should be installed on
the DMX Cat5 cable bare end on the last fi xture in the
communication line.
