L I G H T I N G E L L I P S O I D A L

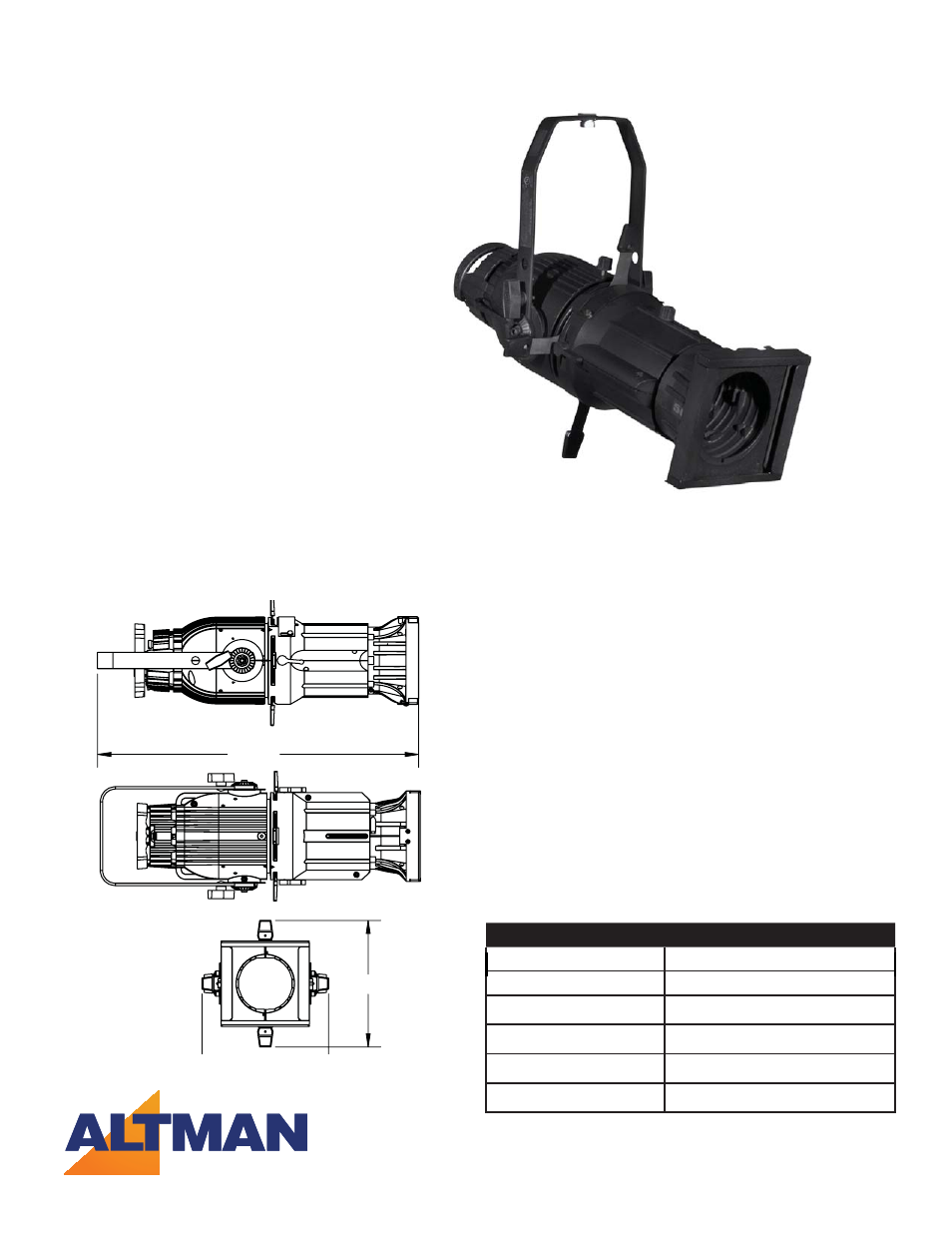

PHOENIX ELLIPSOIDAL
57 Alexander St., Yonkers, NY 10701 Tel: 914-476-7987 Visit our website at www.altmanlighting.com
© 2012 Altman Stage Lighting, Inc.
The 5°, 10°, 19°, 26°, 36° and 50° fi xed focus Phoenix
ellipsoidals are state of the art luminaires in function, style,
and effi ciency. These ellipsoidals have been designed
and engineered with a number of innovative details and
features enhancing versatility and effi ciency without
sacrifi cing performance. To broaden the capabilities of the
fi xture we off er it with the choice of either a HPL or GLA
series lamp, HPL being standard. Fully locking shutters
and a 360° rotating barrel help keep your keep the artistic
part of your fi xture’s focus intact and easy to attain, and
with virtually no light leak from the fi xture itself you
wont have to worry about any extra light illuminating
unwanted parts of the ceiling. The aesthetic appearance
and ergonomically designed function controls only
add to the appeal. All of these new and innovative
options are what makes the Phoenix ellipsoidals ideal
for theatres, night clubs, television studios, or wherever
superior, energy effi cient lighting performance is required.
• Compatible with HPL or GLA series in 375W, 575W and
750W compact fi lament lamps, HPL as standard.
• 360 degree rotating barrel
• Locking shutter
• Completely enclosed accessory holder
• Heat resistant Plano-Convex Lensing
• Die cast aluminum and sheet metal fabrication
• Color frame and spring clip safety cable included
• Tool free interchangeable barrels
• 3 foot power cable
• C-Clamp included with fi xture
• 16 lbs.
• ETL & cETL listed.
• Made in the USA
PHX-5-BK
PHX-10-BK
PHX-19-BK
PHX-26-BK
PHX-36-BK
PHX-50-BK
Lens Degree Model Number
5 Degree PHX-5-*, PHXC-5-*
10 Degree PHX-10-*, PHXC-10-*
19 Degree PHX-19-*, PHXC-19-*
26 Degree PHX-26-*, PHXC-26-*
36 Degree PHX-36-*, PHXC-36-*
50 Degree PHX-50-*, PHXC-50-*
* - Add the following suffi x for body color:
B-Black, W-White, S-Silver
Use PHXC for CDM Lamping of fi xtures
Catalog Numbers
PHX-5-*
PHX-10-*
PHX-19-*
PHX-26-*
PHX-36-*
PHX-50-*
575 & 750 WATT
PHOENIX ELLIPSOIDAL
F e a t u r e s
Please note, 5 and 10 degree fi xtures are shipped with an HD C-Clamp.
