USB AUDIO SYSTEM
SOUNDCARD
OUTPUTS
SOUNDCARD
INPUTS
The 16-channel USB2.0, 96kHz/24bit audio system built into the XONE:DB4 makes it the perfect
interface for use with Digital Audio Workstation software. The mixer deals with the processor
intensive effects work, leaving the computer lightly loaded to better stream the audio data. Another
advantage is that all processing is kept in the digital domain, especially if the DAW is used to
simultaneously record the mix. MIDI compatible DAWs can be controlled from the DB4 via MIDI.
The supplied low-latency drivers must be installed before connecting the
XONE:DB4 to a computer; see page 35 for PC installation, or page 38 for
Mac installation.

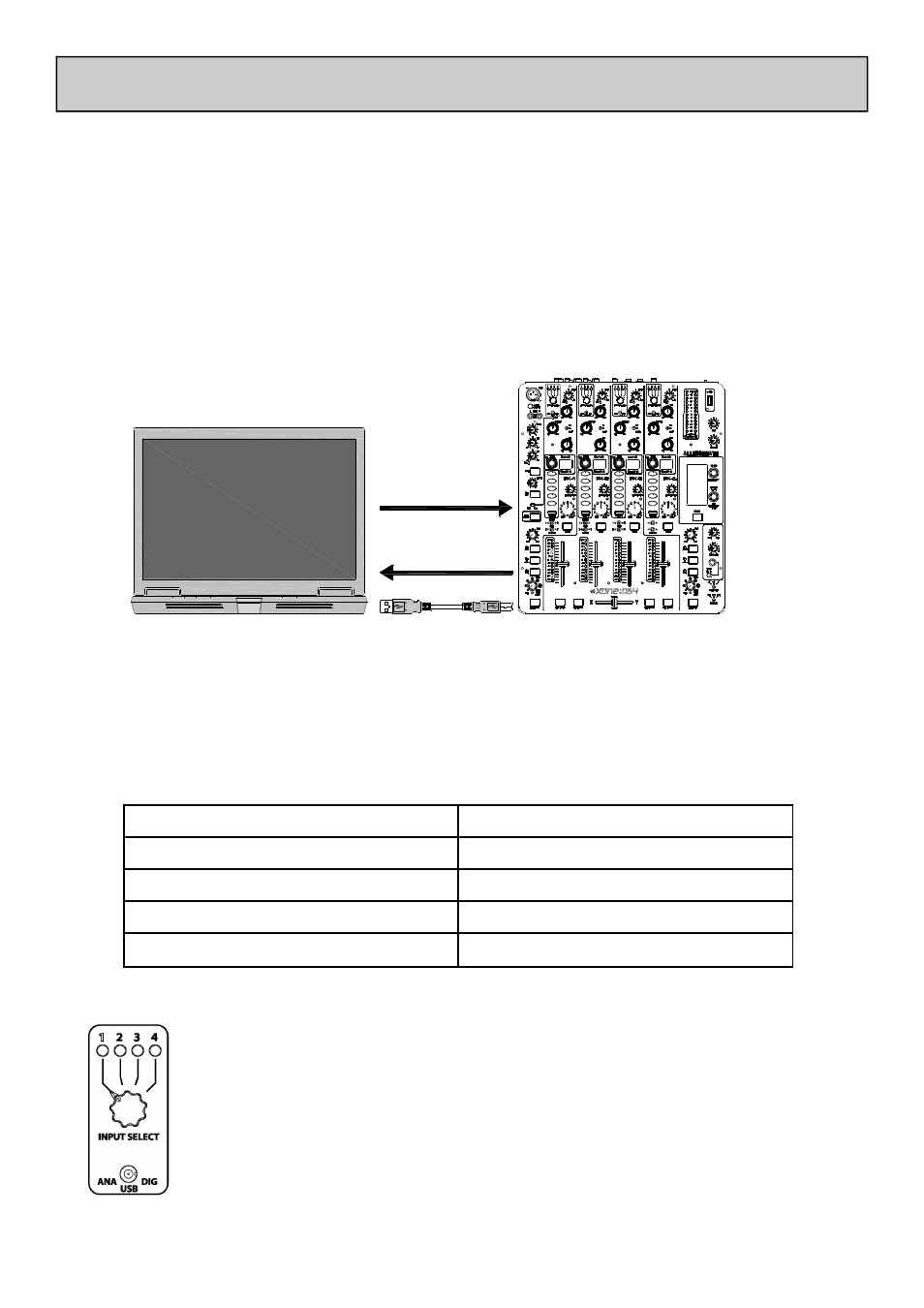

SOUNDCARD NOMENCLATURE
Referencing the above diagram, Soundcard Inputs are from the XONE:DB4 to the PC/MAC and
Soundcard Outputs are from the PC/MAC to the XONE:DB4.
SOUNDCARD OUTPUTS
The XONE:DB4 has eight (four stereo) soundcard outputs that will appear in your chosen DAW
application. The outputs are arranged as follows:
DAW XONE:DB4
SOUNDCARD OUTPUT 1-2 USB 1
SOUNDCARD OUTPUT 3-4 USB 2
SOUNDCARD OUTPUT 5-6 USB 3
SOUNDCARD OUTPUT 7-8 USB 4
SELECTING A USB AUDIO CHANNEL
To select USB audio on one of the XONE:DB4 input channels, set the source switch to
USB and then use the Input Select switch to choose which USB channel you wish to
use.
