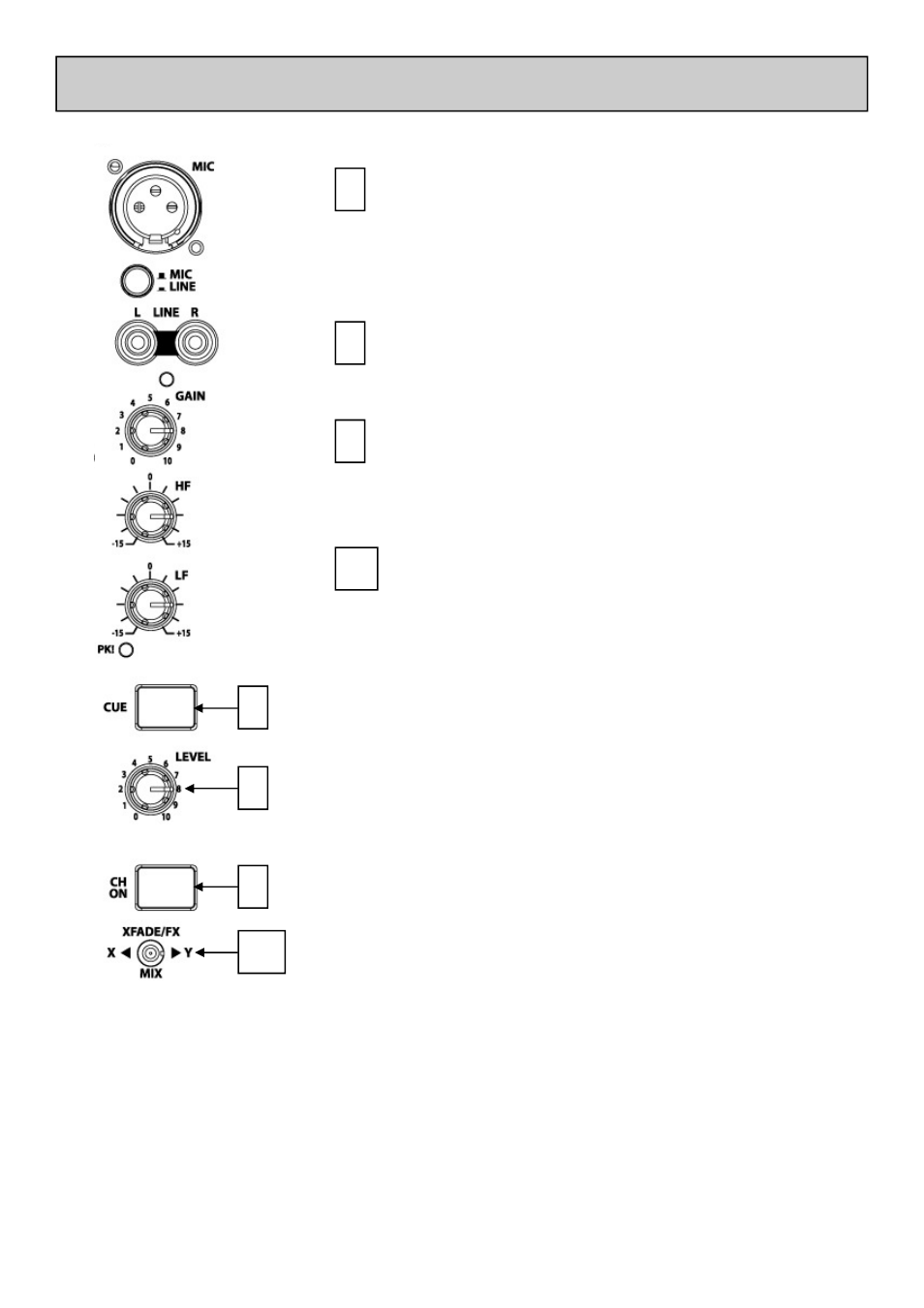

MIC / LINE CHANNEL
CHANEL CUE SWITCH
Press the Cue switch to listen to the channel pre-fade signal
in the headphones and view its level on the main meters.
The backlit switch lights red when selected. Press the
switch again to deselect cue.
7
CHANNEL LEVEL CONTROL
Sets the level of the channel signal in the main mix.
8
7
8
10
CHANNEL ON SWITCH
Turns the channel On or Off. This feature is useful
if a microphone is being used to switch it in and out
of the mix.
9
XFADE / FX SWITCH
Selects where the channel output will be routed:
MIX (Centre) - Routes the signal directly to the mix
X - Routes the signal to the input of FX-X or to X xfader
Y - Routes the signal to the input of FX-Y or to Y xfader
