GLD User Guide 33 AP8561 iss.4
Mix Processing
20 Mix Channels Configure as mono/stereo Groups, Aux, Main, Matrix
Mains = None, LR, LCR. LR+M(bus), LR+M(sum)
External Input Assignable source
Trim +/‐24dB digital trim
Polarity Normal/Reverse
Insert Assign to any sockets, In/Out, +4dBu/‐10dBV level
Delay Up to 170ms, Bypass switch
Mix global setting ‐ ms, feet, meters, samples
GEQ
Type
Constant 1/3 octave, 28 bands 31Hz ‐16kHz
Gain +/‐12dB
GEQ Fader Flip Mode 2 overlapping frequency banks on strip faders
SEL key resets frequency band to 0dB
RTA following PAFL is displayed on strip meters
PEQ
Type
4‐Band fully parametric, +/‐15dB
Frequency Range Global setting for Mixes = 20‐20kHz or 'Analogue'
Analogue Ranges 20‐200Hz, 35‐1kHz, 500‐15kHz, 2k‐20kHz
Band 1 Selectable LF Shelving, Bell, Hi‐Pass
Band 2 Bell
Band 3 Bell
Band 4 Selectable HF Shelving, Bell, Lo‐Pass
Bell Width Non‐constant Q, variable, 1.5 to 1/9th octave
Shelving Type Classic Baxandall
Hi‐Pass, Lo‐Pass Filter 12dB/octave
Compressor
Sidechain
Self key, In/Out, Sel 'listen'
Sidechain Lo‐Cut Filter 12dB/octave, Freq 20Hz – 5kHz
Sidechain Hi‐Cut Filter 12dB/octave, Freq 120Hz – 20kHz
Threshold ‐46dBu to 18dBu
Ratio 1:1 to infinity
Attack 300us – 300ms
Release 100ms – 2s
Knee Soft/Hard
Manual Types Peak Manual, RMS Manual
Auto Types VocalAuto, OptoAuto, PunchBag
filter in/out with sel ‘listen’
Mains Power
GLD‐80 100‐240V AC, 50/60Hz, 95W max
GLD‐112 100‐240V AC, 50/60Hz, 110W max
GLD‐AR2412 100‐240V AC, 50/60Hz, 70W max
GLD‐AR84 100‐240V AC, 50/60Hz, 20W max

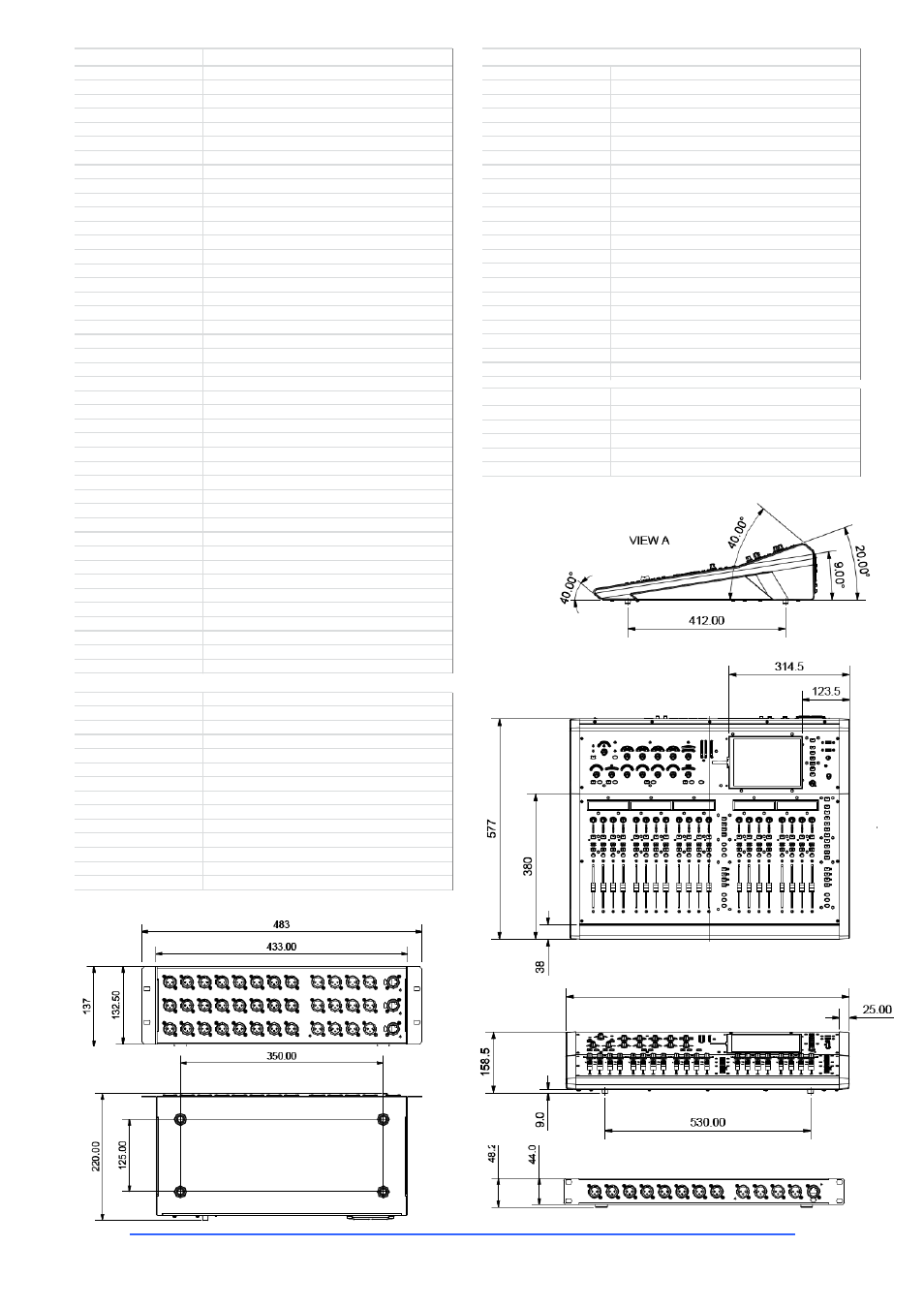

Dimensions and Weights
GLD‐80 Mixer Width x Depth x Height
Unpacked 730 x 577 x 159mm (28.7" x 22.7" x 6.2")
Packed in shipping box 930 x 730 x 290mm (36.6" x 28.6" x 11.4")
Unpacked weight 16.5kg (36lbs)
Packed weight 21.2kg ( 46.6lbs)
GLD‐112 Mixer Width x Depth x Height
Unpacked 1000 x 577 x 159mm (39.4" x 22.7" x 6.2")
GLD‐AR2412 AudioRack Width x Depth x Height
Unpacked 483 x 220 x 137mm (19" x 8.6" x 5.4") 3U rack
Packed in shipping box 600 x 350 x 250mm (23.6" x 13.7" x 9.8"
Unpacked weight 5kg (11lbs)
Packed weight 6.4kg (14lbs)
GLD‐AR2412 AudioRack Width x Depth x Height
Unpacked 483 x 220 x 48mm (19" x 8.6" x 1.9") 1U rack
Packed in shipping box 600 x 330 x 143mm (23.6" x 12.9" x 5.6")
Unpacked weight 3kg (6.6lbs)
Packed weight 4.4kg (9.7lbs)
GLD-80 = 730
GLD-112 = 1000
Talkback Assignable source
Mode Latched/Momentary, PAFL Dim option
High Pass Filter 12dB/octave, 20Hz‐2kHz
Routing To Groups, Aux, Main, Matrix
Level Trim +/‐24dB
Signal Generator Sine, White Noise, Pink Noise, Bandpass Noise
Sine, Bandpass sweep 20‐20kHz
Controls Level, Mute
Routing To Groups, Aux, Main, Matrix
RTA 31‐Bands 1/3 octave 20‐20kHz
Source Follows selected PAFL source
Peak Band Indication Option to display dominant frequency
