GLD User Guide
11
AP8561 iss.4

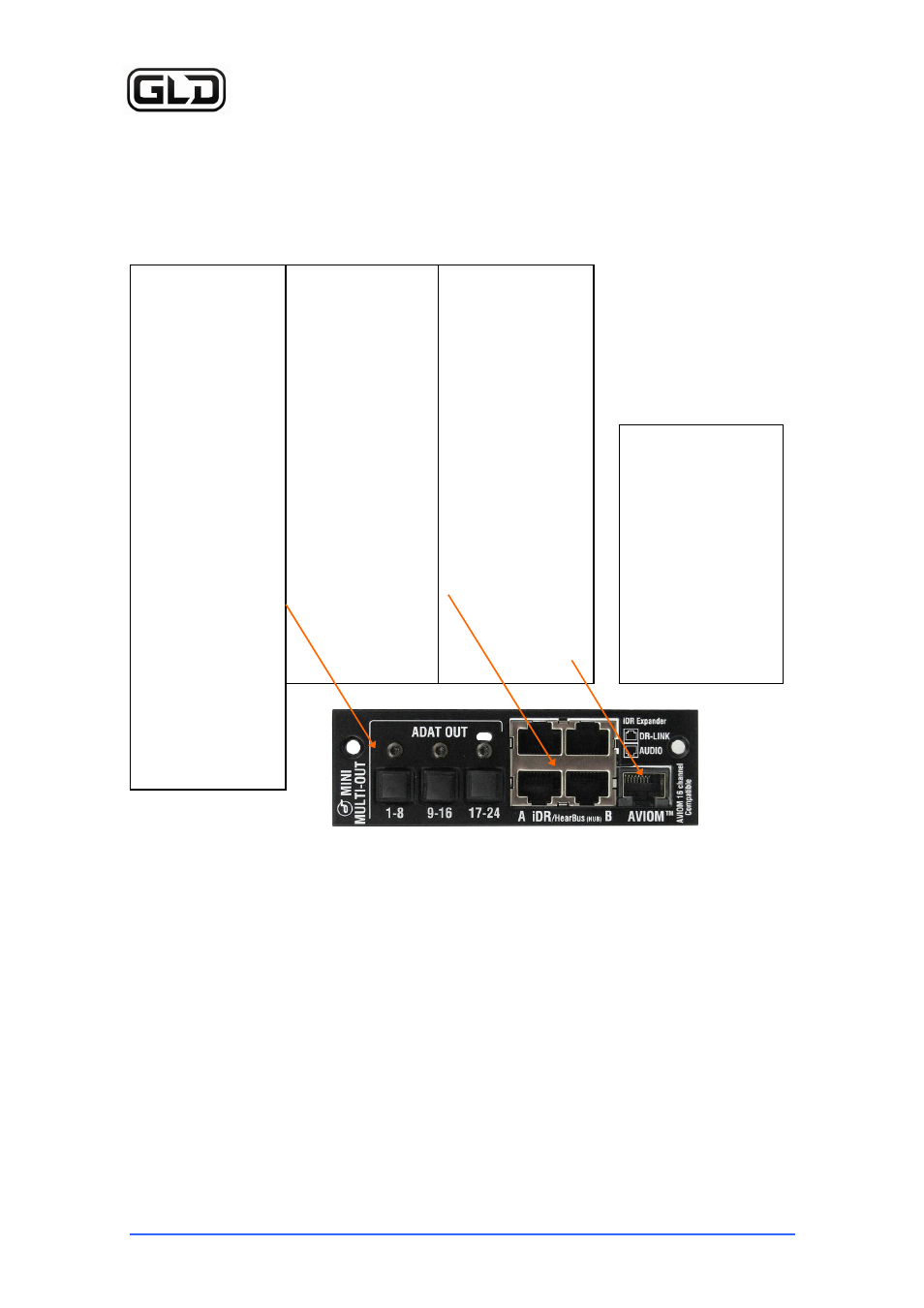

I/O Port fitted with MMO card option
Up to 64 GLD inputs and 64 outputs can be assigned to an audio option card fitted to the GLD rear panel
I/O Port. The MMO (Mini Multi Out) card provides several output formats – 24 channels of ADAT optical
out, two 8 channel iDR links to connect the Allen & Heath iDR-8 or iDR-4 mix processors, or the iDR-Out
or iDR-Dout output expander, and also compatible with the HearBus hub, and a 16 channel output
compatible with Aviom
®
A-Net 16 or the Allen & Heath ME personal mixing system running in Aviom mode.
The card uses 56 channels from the port. These are assigned using the
I/O / Port Out
screen. The port
channels map to the MMO sockets as below:
GLD Port Map
Port Out: MMO:
ADAT
1
ADAT 1
2 ADAT
2
3 ADAT
3
4 ADAT
4
5 ADAT
5
6 ADAT
6
7 ADAT
7
8 ADAT
8
9 ADAT
9
10
ADAT
10
11
ADAT
11
12
ADAT
12
13
ADAT
13
14
ADAT
14
15
ADAT
15
16
ADAT
16
17
ADAT
17
18
ADAT
18
19
ADAT
19
20
ADAT
20
21
ADAT
21
22
ADAT
22
23
ADAT
23
24
ADAT
24
GLD Port Map
Port Out: MMO:
iDR A
25
iDR-A
1
26
iDR-A
2
27
iDR-A
3
28
iDR-A
4
29
iDR-A
5
30
iDR-A
6
31
iDR-A
7
32
iDR-A
8
iDR B
33
iDR-B
1
34
iDR-B
2
35
iDR-B
3
36
iDR-B
4
37
iDR-B
5
38
iDR-B
6
39
iDR-B
7
40
iDR-B
8
GLD Port Map
Port Out: MMO:
Aviom
®
41
Aviom 1
42
Aviom
2
43
Aviom
3
44
Aviom
4
45
Aviom
5
46
Aviom
6
47
Aviom
7
48
Aviom
8
49
Aviom
9
50
Aviom
10
51
Aviom
11
52
Aviom
12
53
Aviom
13
54
Aviom
14
55
Aviom
15
56
Aviom
16
Assign each output:
• Unassigned
• Input Direct Out
• Group
• Aux
• Main Mix
• Matrix
• Rack FX
• USB playback
• Input socket
• I/O Port input
• PAFL monitor
• Wedge/IEM monitor
