Input and output sockets

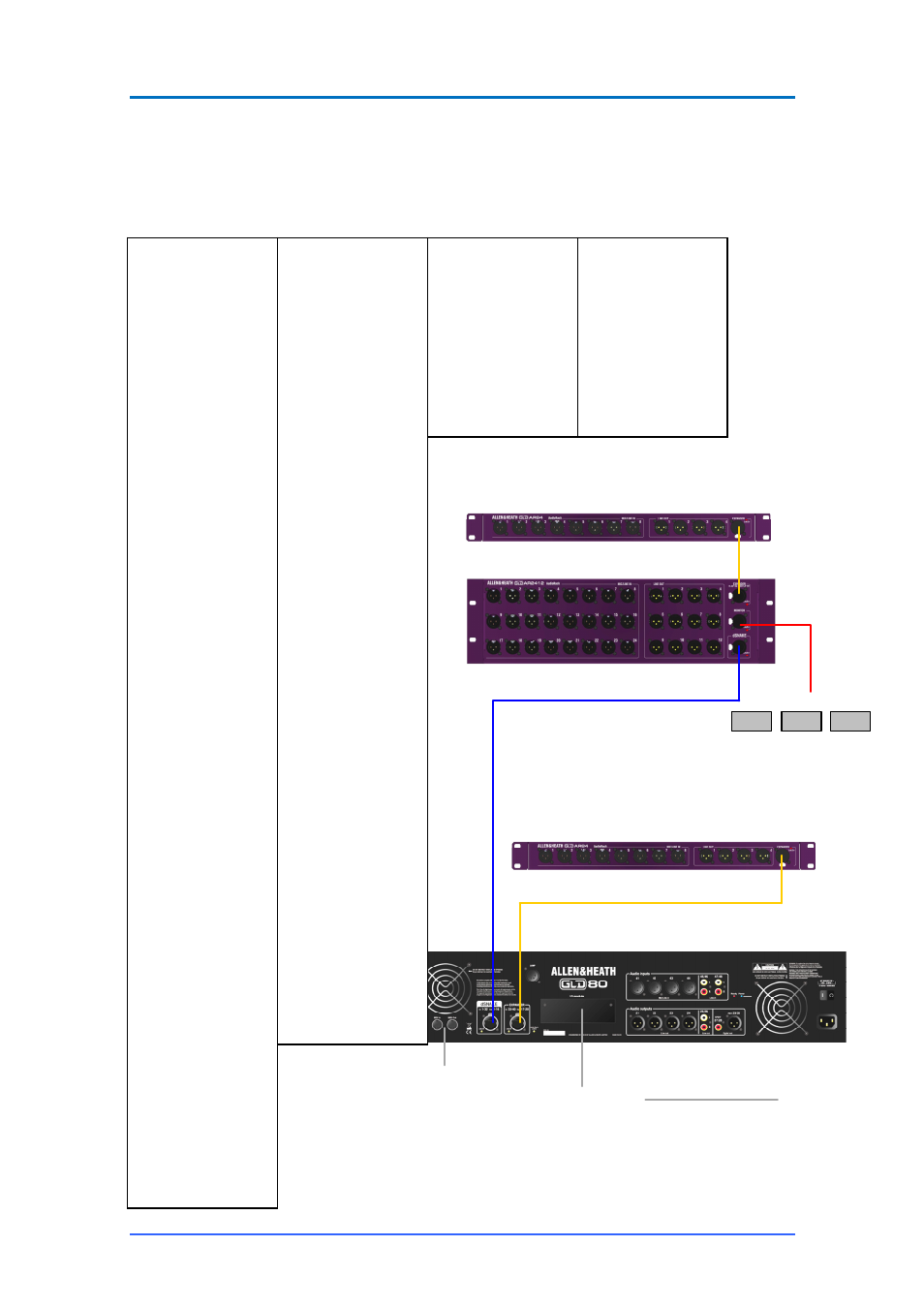

The diagram here shows the interconnection and socket numbering of the fully expanded system.
Each socket has a unique number. The physical socket numbers are shown below. Any input socket or
source can be patched to any of the 48 channels. Any mix or other GLD signal can be patched to any of
the output sockets.
The default is one-to-one mapping, ie. Socket 1>CH1, Socket 2>CH2 and so on.
GLD-AR2412 AudioRack
In 1-24 Out 1-12
GLD-AR84 AudioRack
In 25-32 Out 13-16
GLD-AR84 AudioRack
In 33-40 Out 17-20
dSNAKE
EXPANDER
EXPANDER
In 41-48 Out 21-30
GLD-80 Mixer
Network
I/O Module Port
Accepts any iLive Port B card option
For audio networking, digital mic split, recording, link to iLive
In 1-64 Out 1-64
Includes SPDIF and
AES digital output
Future
control
application
EXPANDER
MONITOR
Personal monitoring system
Aviom compatible
M sends 1-16
MIDI
ACE
MADI
Dante
EtherSound
Waves
MMO
Cat5 up to 120m (400')
Cat5 up to 120m (400')
Digital snake to/from stage
Input Sockets
Mixer dSNAKE:
GLD-AR2412
Main rack:
1 XLR
mic
2
XLR mic
3
XLR mic
4
XLR mic
5
XLR mic
6
XLR mic
7
XLR mic
8
XLR mic
9
XLR mic
10
XLR mic
11
XLR mic
12
XLR mic
13
XLR mic
14
XLR mic
15
XLR mic
16
XLR mic
17
XLR mic
18
XLR mic
19
XLR mic
20
XLR mic
21
XLR mic
22
XLR mic
23
XLR mic
24
XLR mic
GLD-AR84
Expander at rack:
25
XLR mic
26
XLR mic
27
XLR mic
28
XLR mic
29
XLR mic
30
XLR mic
31
XLR mic
32
XLR mic
Mixer EXPANDER:
GLD-AR84
Expander at mixer:
33
XLR mic
34
XLR mic
35
XLR mic
36
XLR mic
37
XLR mic
38
XLR mic
39
XLR mic
40
XLR mic
Mixer REAR:
GLD
41
XLR mic
42
XLR mic
43
XLR mic
44
XLR mic
45/46 RCA stereo line
47/48 RCA stereo line
Output Sockets
Mixer dSNAKE:
GLD-AR2412
Main rack:
1 XLR
line
2
XLR line
3
XLR line
4
XLR line
5
XLR line
6
XLR line
7
XLR line
8
XLR line
9
XLR line
10
XLR line
11
XLR line
12
XLR line
GLD-AR84
Expander at rack:
13 XLR
line
14 XLR
line
15 XLR
line
16 XLR
line
MONITOR
Port at rack:
ME-1 Mode:
21-60 = ME 1-40
Aviom Mode:
1-16 = Aviom 1-16
Mixer EXPANDER:
GLD-AR84
Expander at mixer:
17 XLR
line
18 XLR
line
19 XLR
line
20 XLR
line
Mixer REAR
GLD
21 XLR
line
22 XLR
line
23 XLR
line
24 XLR
line
25/26 RCA line
27/28 SPDIF digital
29/30 AES digital
Additional Inputs
GLD mixer
Rear I/O Port:
1-64 Input channel
Surface USB port:
From USB key
L-R Stereo
playback
Additional Outputs
GLD mixer
Rear I/O Port:
1-64 Output channel
Surface USB port:
To USB key:
L-R Stereo
record
