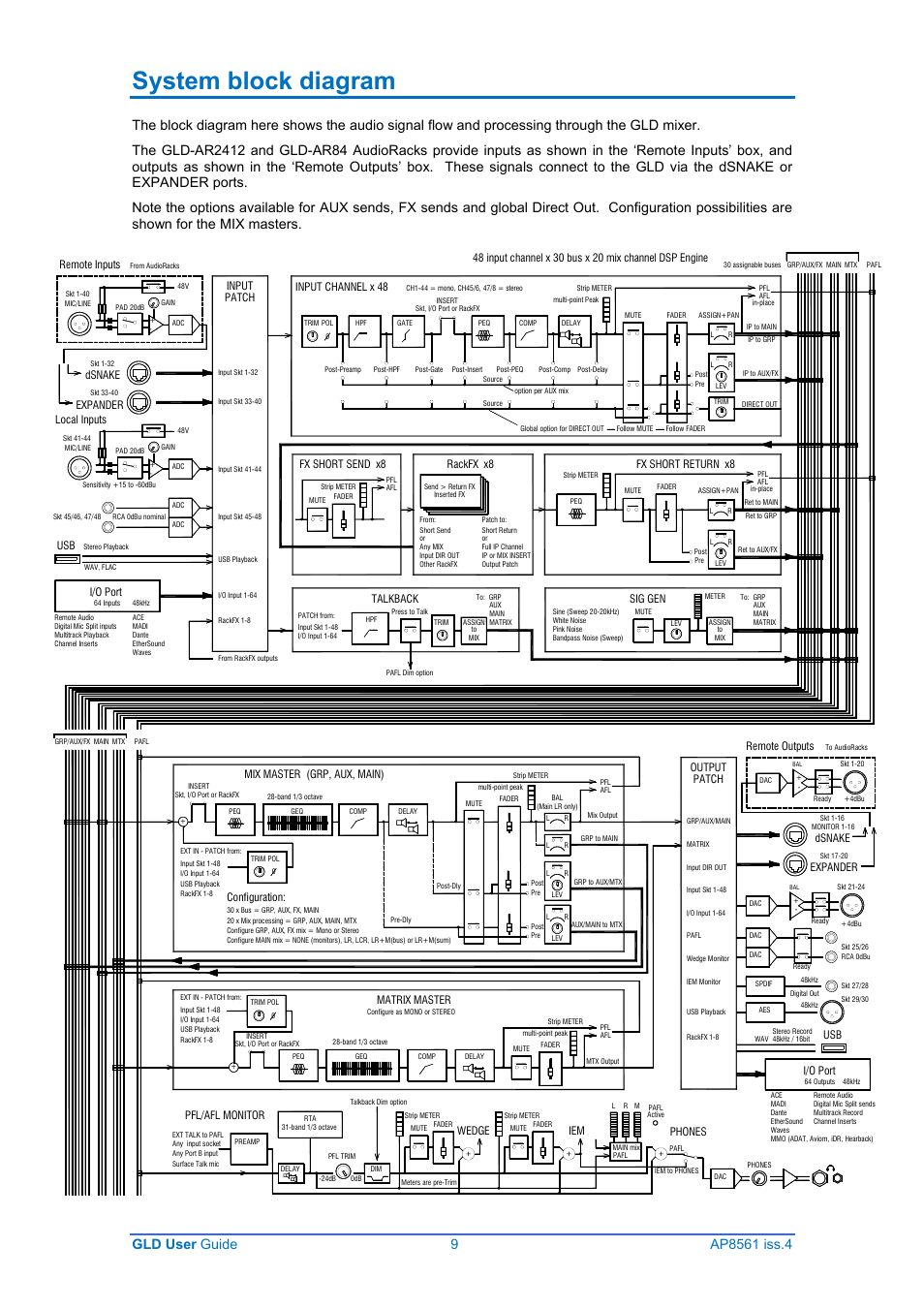

System block diagram, Mix master (grp, aux, main), Matrix master – Allen&Heath GLD-80 User Manual

Page 9: Output, Patch, Dsnake expander, I/o port, Configuration: remote outputs, Input channel x 48, Local inputs

Text mode
Original mode

System block diagram, Mix master (grp, aux, main), Matrix master | Output, Patch, Dsnake expander, I/o port, Configuration: remote outputs, Input channel x 48, Local inputs | Allen&Heath GLD-80 User Manual | Page 9 / 36
