Page 4: Icon, Series

background image

4

icon

series

The ICON Series

Powered and Un-Powered Digital Live Consoles

DL1000

10 Input Un-Powered Digital Live Mixing Console

DP1000

10 Input Powered Digital Live Mixing Console

Options

DL1000-RK 19” Rack Mount Kit for both DL1000 and DP1000 consoles

AP3521

Icon Carry bag

Flightcasing the console

If the console is to be regularly moved we recommend that it is installed in a foam-lined flightcase. At all
times avoid applying excessive force to any knobs or connectors. Do not obstruct the ventilation slots or
position the

icon where the air-flow required for ventilation is impeded.

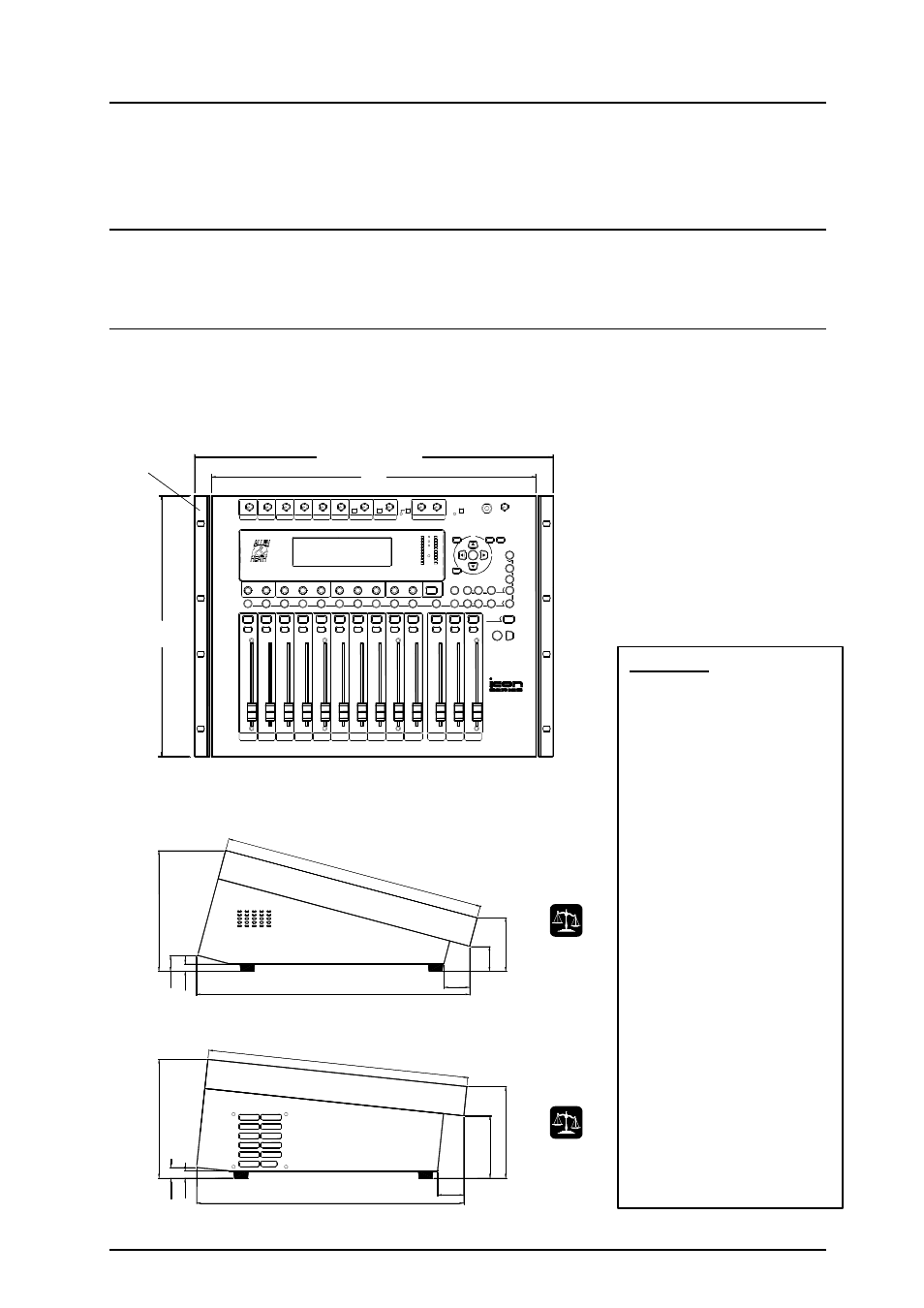

Dimensions for flightcasing the console are shown below: (All dimensions in mm)

MIC 48V

482 with rack ears fitted

442

355

164

21

10

373

355

73

34

35

8U rack

36

85

125

162

355

364

15

10

DL1000

DP1000

19" rack mounting

option

9 kg

20 lbs

18 kg

40 lbs

DIMENSIONS

Unpacked

..................................... Width

DL1000 ........................ 442 (17”)

DP1000........................ 442 (17”)

..................................... Depth

DL1000 ........................ 373 (15”)

DP1000........................ 364 (14”)

..................................... Height

DL1000 ........................ 164 (6”)

DP1000........................ 162 (6”)

..................................... Weight (kg)

DL1000 ........................ 9 (20lbs)

DP1000........................ 18 (40lbs)

Packed

..................................... Width

DL1000 ........................ 550 (22”)

DP1000........................ 550 (22”)

..................................... Depth

DL1000 ........................ 505 (20”)

DP1000........................ 505 (20”)

..................................... Height

DL1000 ........................ 300 (12”)

DP1000........................ 300 (12”)

..................................... Weight (kg)

DL1000 ........................ 11 (24lbs)

DP1000........................ 20 (44lbs)
