AirLive WL-2000CAM User Manual
Page 20
AirLive WL-2000CAM User’s Manual
17

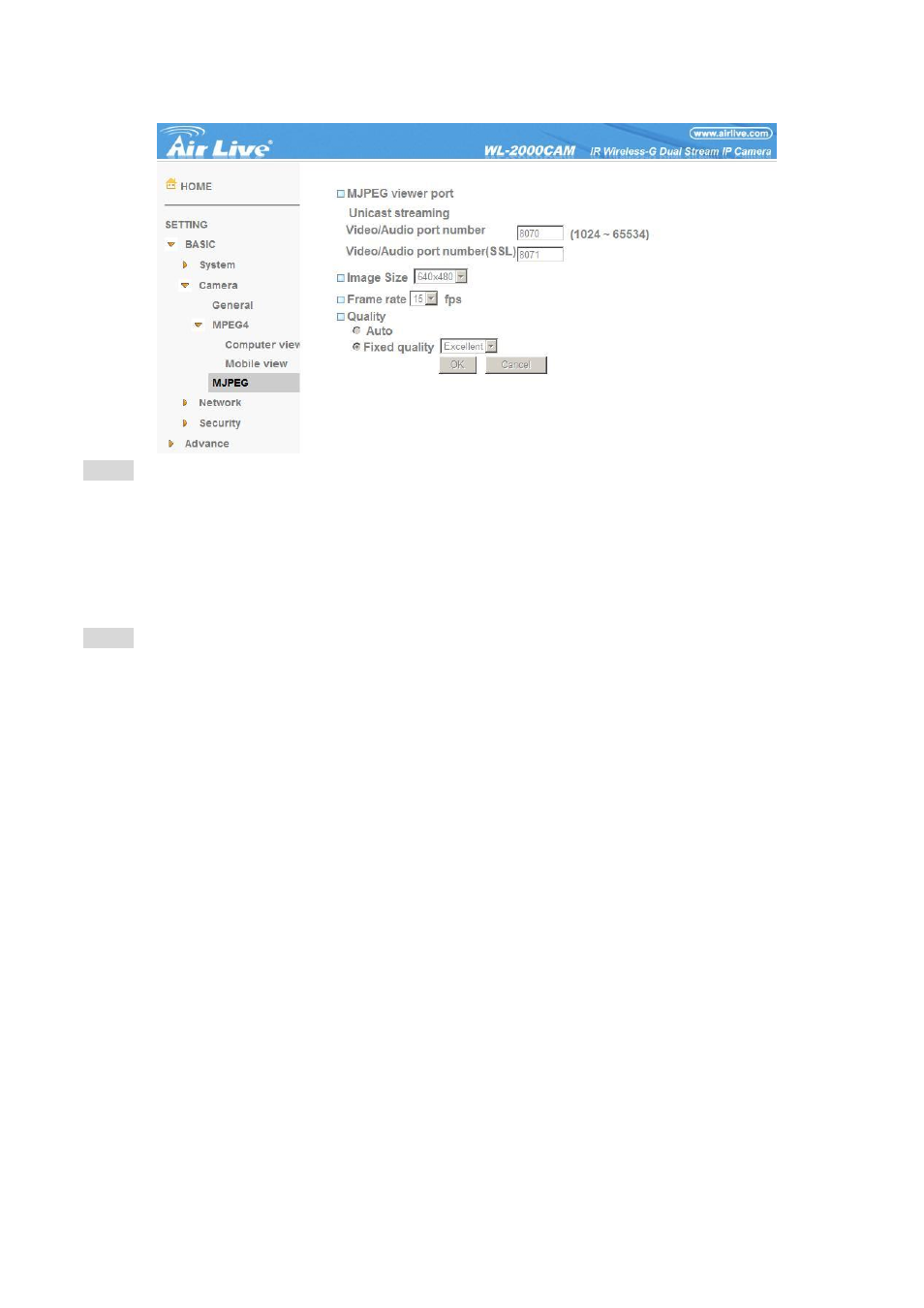

6-1-2-3 MJPEG
Note：
• MJPEG settings are unavailable if the RTSP mode is ON, which means the MJPEG streaming is closed.
MJPEG viewer port
Unicast streaming Video/Audio port number
:
Specify the transmission port number of the video data. It is
initially set to 8070. Specify an even number from 1024 to 65534.
Note：
• Unicast streaming：Specify the transmission port number of the video data and audio data used when
UDP (Unicast) is selected with the TCP/UDP transmission switching icon in the main viewer.
Image Size：Specify the image size the network camera transmits. You can choose among 704 Ч 480, 352 Ч
240 and 176 × 120 for NTSC mode and 704 Ч 576, 352 Ч 288 and 176 × 144 for PAL mode.
Frame rate：
Set the frame rate of the MJPEG image. Selectable values are 5, 10, 15 fps. The unit “fps” stands
for “frames sent per second”.
Quality
Auto：The quality will be automatically decided.
Fixed quality：The selectable values are Medium, Standard, Good, Detailed and Excellent.
