AirLive WL-2000CAM User’s Manual
14
Overlay：Select to add Text Overlay or Privacy Mask on/off the display screen.
Text Overlay：Enables users to see some information on the display screen, including Date/Time and
user-defined text. You can also change the background color.
Privacy Mask：Enables users to conceal an area of the video image.

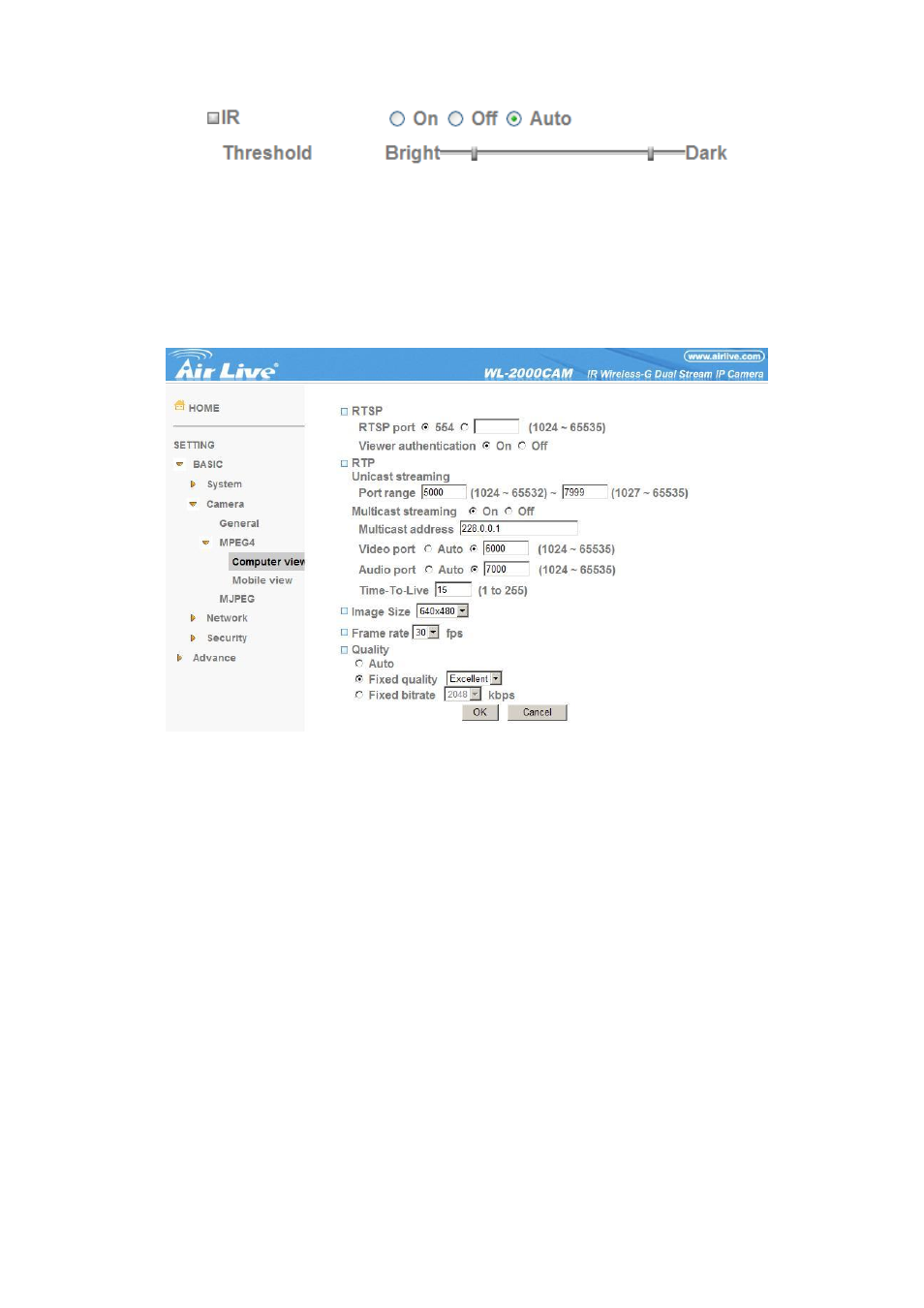

6-1-2-2 MPEG4
Computer View
RTSP (If RTSP mode is ON)
RTSP port: Specify the transmission port number of RTSP streaming video. Default value is 554.
Viewer authentication: If the viewer authentication is ON, users viewing through RTSP will be requested to
key-in username and password.
RTP (If RTSP mode is ON)
Unicast streaming:
Unicast streaming Video/Audio port range: Specify the transmission port range of RTP streaming video. RTP
will select a port randomly from the range.
Multicast streaming:
Multicast address: Specify the multicast server address.
Video / Audio Port: Specify the transmission port number of the video data. Specify an even number from 1024
