2.1 Package Content
1. CoreNVR 9ch or CoreNVR 16ch X1
2. 12V / 5A adapter X1
3. SATA data cord X2
4. SATA power cord X2
5. Hard disk holder X4 pcs
6. Quick install guide X1
7. Manual disc X1

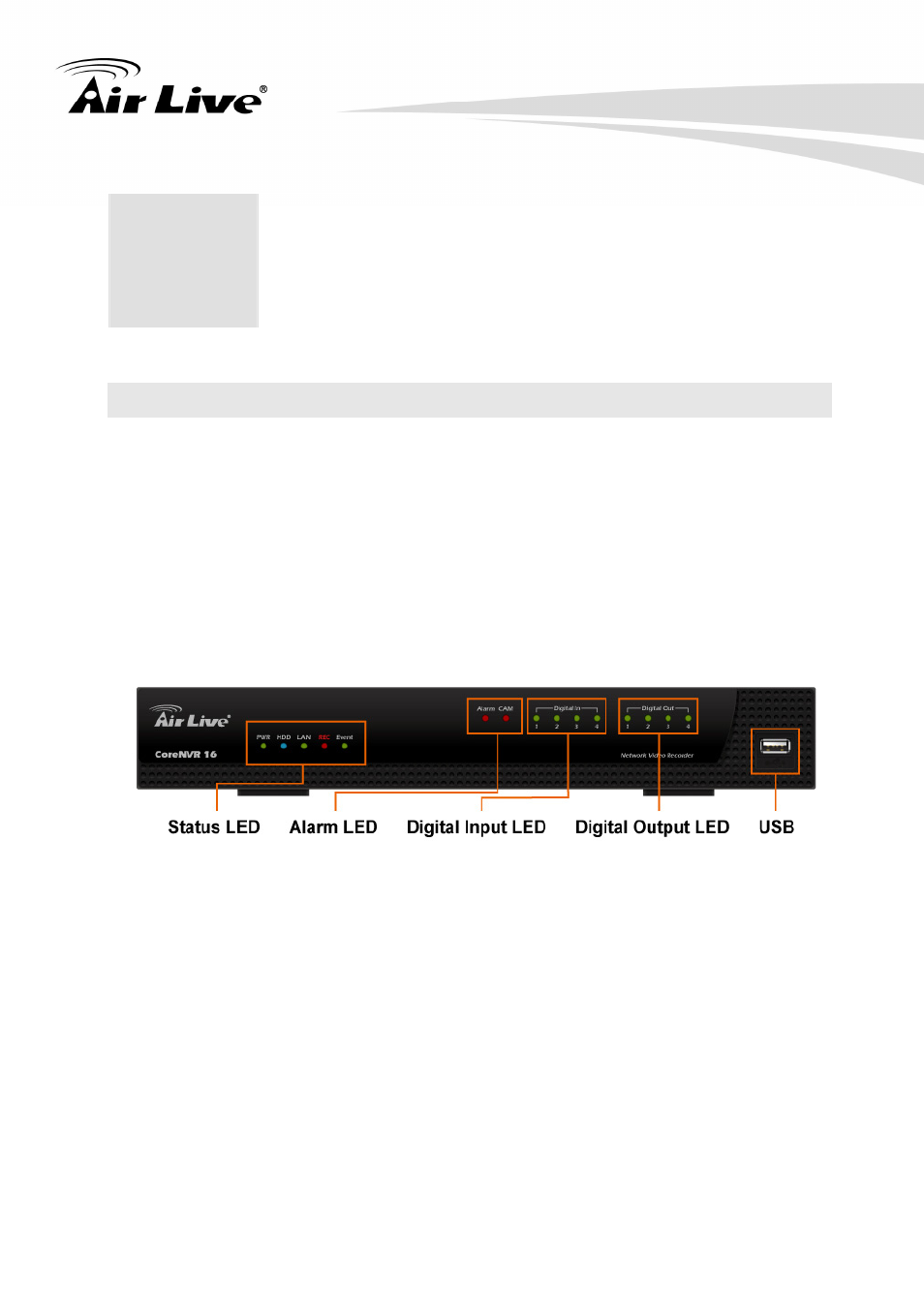

Front:
1. Status LED:
PWR: LED on when system is ready.
HDD: LED on when Hard Disk is reading or writing.
LAN: LED on when network is on communication.
REC: LED on when Record schedule is on.
Event: LED on when
alarm monitoring is on.
2. Alarm LED:
Alarm: LED on when Hard Disk write error.
CAM: LED on when system have camera disconnected.
3. Digital Input LED: LED on means Digital Input is triggered.
4. Digital Output LED: LED on means Digital output device is reacting.
5. USB: For connect USB stick or mouse.
