Chapter 2 – How to install and connect MyChron Expansion
MyChron Expansion allows MyChron4 to sample temperatures, displacements and –
configuring channel 1 as digital – a speed. A correct installation of this expansion and its
sensors is thereby mandatory to sample correct and consistent data.
7

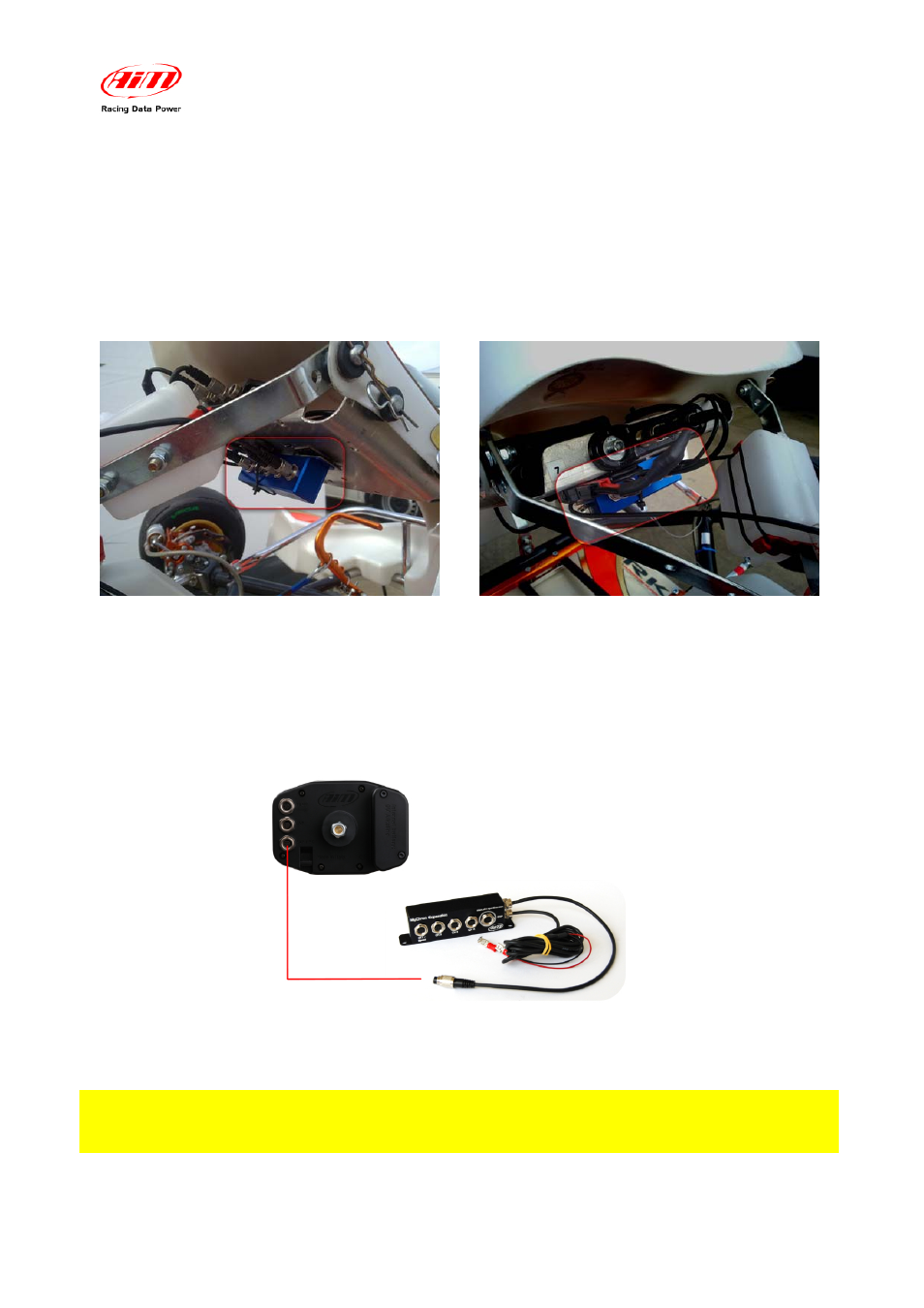

2.1 – How to install MyChron Expansion on the kart
Below images show how to install MyChron Expansion.
8
2.2 – How to connect MyChron Expansion to MyChron4
Once correctly installed, MyChron Expansion is to be connected to MyChron4 to be
configured. The connection comes plugging MyChron Expansion cable in MyChron4
connector labelled Exp/PC as shown here below.
Warning: connect MyChron Expansion to MyChron4 OFF.
