MyChron Expansion
User Manual
Release 1.02
10
www.aim-sportline.com
1 4
3.4 – Setting 0-100 generic sensors (expert users only)
This function manages custom sensors. Values are linked following this calibration curve:
• 0 counts – 0 Volt
• 100 counts – 5 Volt
Calibration curve is already set and needs no calibration.
Always refer to the sensors user manuals and datasheets supplied by the sensor
manufacturers for any further information.
1 8

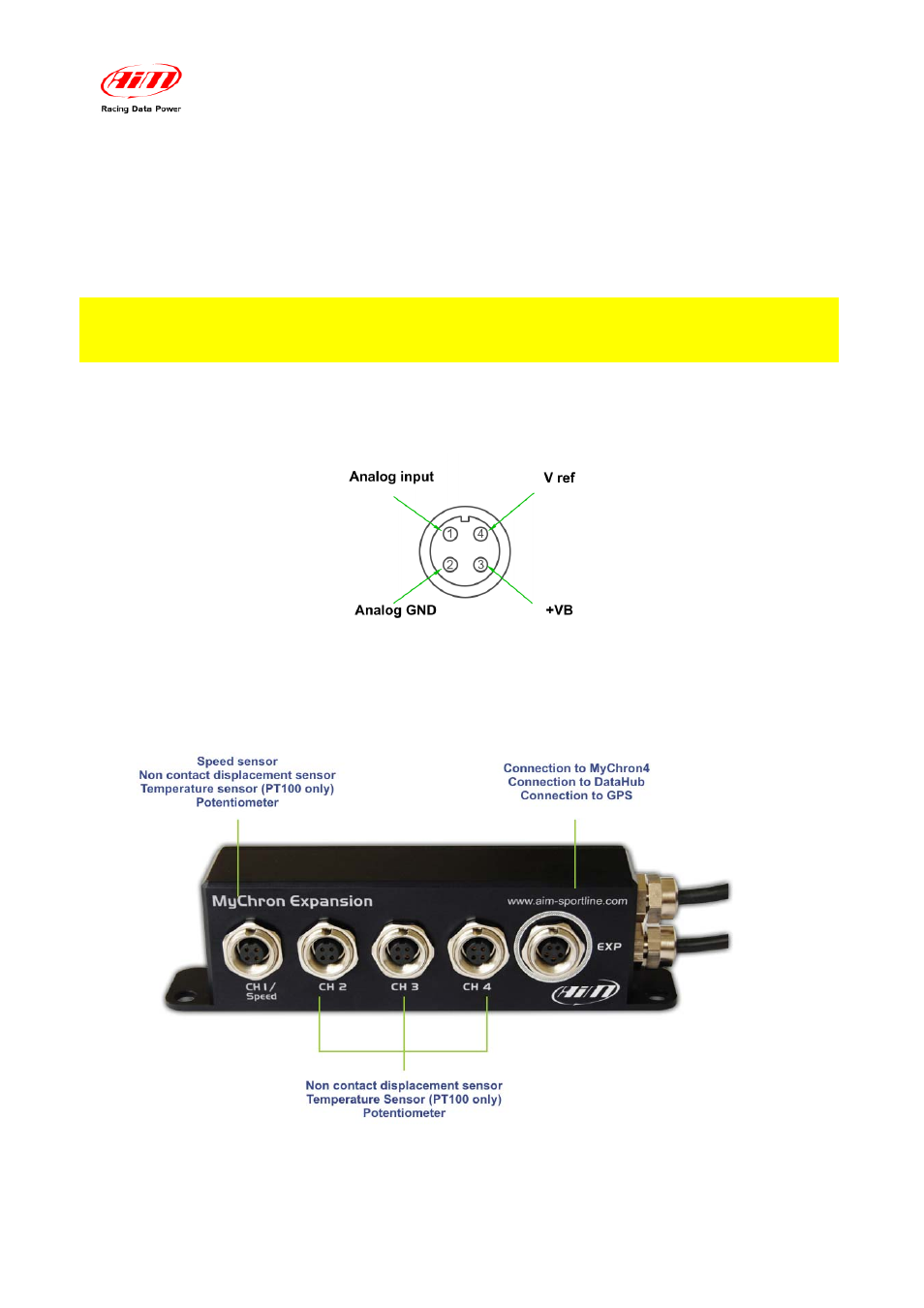

3.4.1 – Analog channels connectors pinout
5 pins female Binder connector of CH1, CH2, CH3 and CH4 analog channels is shown
here below.
1 5
3.5 – Where to connect MyChron Expansion additional sensors
Additional sensors are connected to MyChron Expansion screwing them in their own
connectors. Below image shows connectors position and function.
