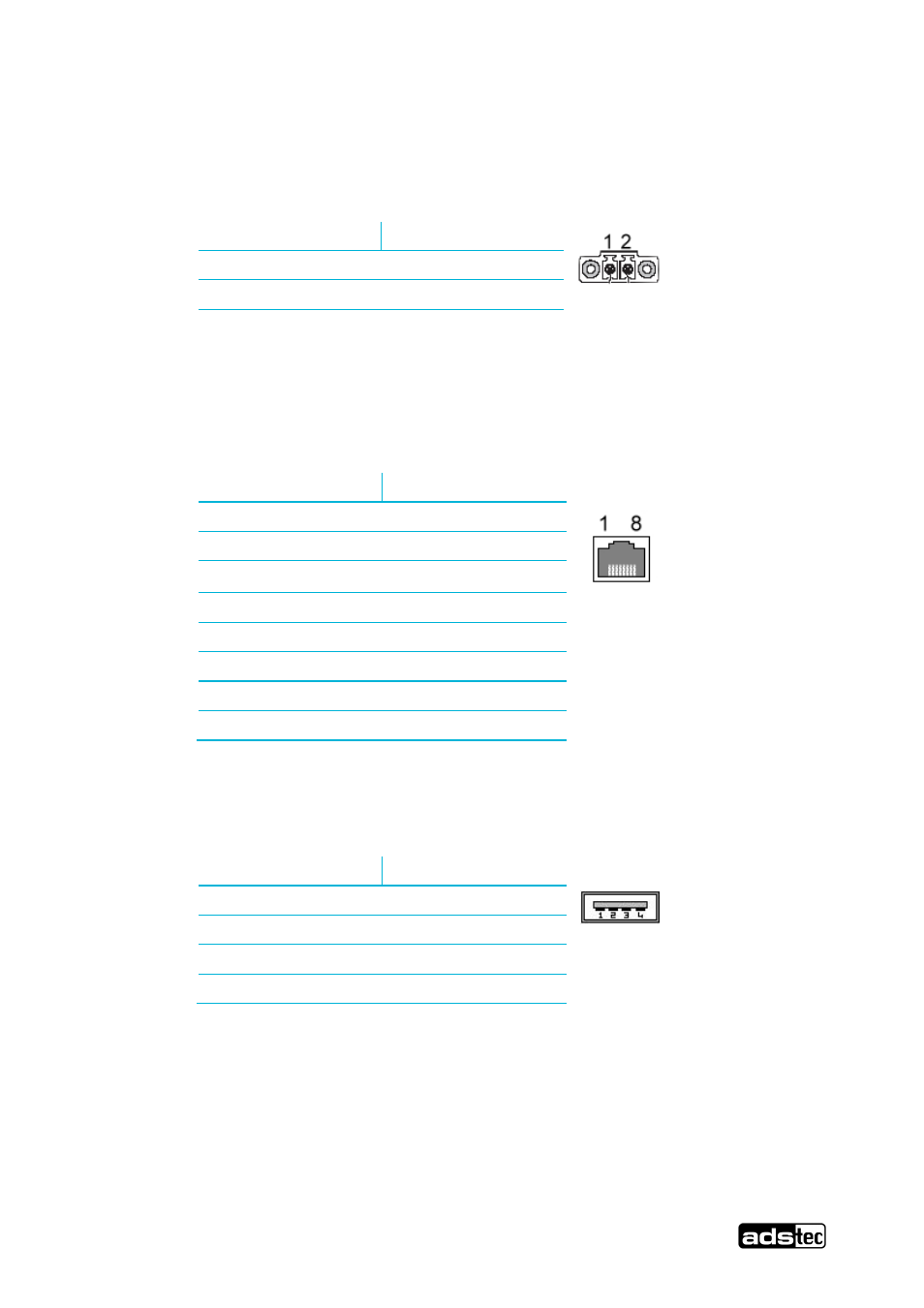

4.3.1 24 VDC Power Supply
The power supply voltage is supplied via a feed‐through clamp including screw
connection (figure shows socket in the device).
Pin‐Number
Signal‐Name
1
24V DC
2
0V DC
Technical Data of the Power Supply
•
Input:
7…36V DC
4.3.2 HOST (RJ45)
Pin‐Number
Signal‐Name
1
TX +
2
TX ‐
3
RX +
4
NC
5
NC
6
RX ‐
7
NC
8
NC
4.3.3 USB‐Connections
The SIM card reader is used for storing configuration data.
Pin‐Number
Signal‐Name
1
VDC
2
D ‐
3
D +
4
GND
