LOG SPLITTER

ENGLISH

SAFETY

warnInG

21. When the ram of the log splitter is in the return mode,

keep your hands off the machine—the log splitter

is designed to automatically stop the ram when the

cylinder is fully retracted.

22. Do not step across the log splitter while the engine is

running.

23. Do not straddle or reach across the splitting area when

operating the machine.

24. When splitting logs in the vertical position, stablize the

log before engaging the control. Split as follows:

a. Place log on the end plate and turn until it leans
against the beam and is stable.
b. When splitting extra large or uneven logs, the
log must be stablized with wooden shims or split
wood between the log and end plate or ground.
25. When at all possible, keep log splitter attached to a

towing vehicle. If you are unable to do this, secure

the hitch.

1.5 maInTenanCe & sToraGe saFeTY

1. Before inspecting, servicing, storing or changing an

accessory, shut off the machine and make sure all

moving parts have come to a complete stop. Disconnect

the spark plug.

2. Replace any missing or unreadable safety decals.

Refer to the safety decal section for part numbers.

3. Allow machine to cool before storing in an enclosure.
4. Store the machine out of reach of children and where

fuel vapors will not reach an open flame or spark.

5. Never store this machine with fuel in the fuel tank

inside a building where fumes may be ignited by an

open flame or spark. Ignition sources can be hot water

and space heaters, furnaces, clothes dryers, stoves,

electric motors, etc.

6. Drain the fuel and dispose of it in a safe manner for

storage periods of three months or more.

7. Replace any worn, cut, abraded, flattened or crimped

hydraulic hoses.

8. Wear proper hand and eye protection when searching

for a hydraulic leak. Instead of using your hands, use

a piece of wood or cardboard as a backstop to identify

a leak.

1.6 TowInG saFeTY

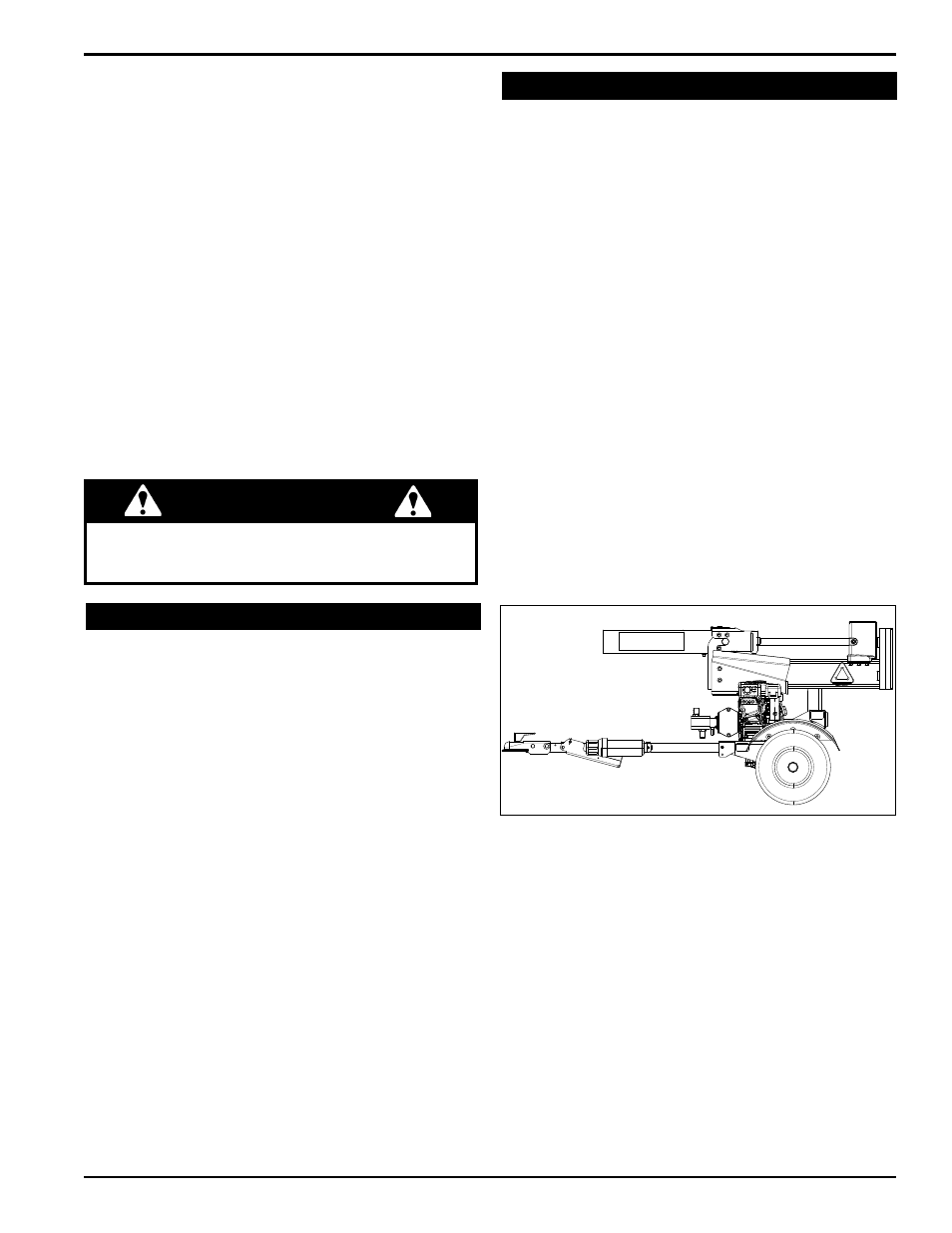

Correct towing configuration with ram extended and jack stand up.

*Shown with optional fenders and trailer lights kit, PN 77200-00.

1. Ensure the log splitter is locked in the horizontal position

before towing.

2. Extend log splitter ram all the way before towing to help

maintain stability (see picture below).

3. Connect hitch safety chains. Tighten trailer hitch bolts.

Do not attempt to tow the trailer if the vehicle is not

equipped with a 2 inch ball.

4. Inflate tires to manufacturer’s specifications as stated

on the tire sidewall.

5. Do not tow machine faster than 45 mph (72 kph).
6. Optimum towing performance can be achieved by

maintaining a horizontal trailer hitch.

7. Make sure the jack stand is in the uP position during

towing. Place the jack stand on a level surface and

secure it in the DOWN position before using.

8. Never allow passengers to ride on the machine.
9. Shut off fuel supply when towing.
10. Towing laws may vary in different countries/regions/

states. It is recommended that you contact your local

motor vehicle department for any special regulations

that pertain to towing and know the laws of any country/

region/state you travel through.

When splitting large and heavy material it is possible for

the log splitter to tip. Secure the stand before operating.
