Debris Loader Owner’s Manual

16

SERVICE AND MAINTENANCE

Briggs & Stratton engines

Use unleaded gasoline with a pump octane of 85 or higher,

or a research octane of 90 or higher.
Do not use gasoline containing methanol

Kohler engines

Use unleaded gasoline with a pump octane of 87 or higher,

or a research octane of 90 or higher.
Gasohol (up to 10% ethyl alcohol, 90% unleaded gasoline

by volume) is an approved fuel. Other gasoline/alcohol

blends are not approved.
Methyl Tertiary Butyl Ether (MTBE) and unleaded gasoline

blends (up to a maximum of 15% MTBE by volume) are

approved. Other gasoline/ether blends are not approved.

To Add Gasoline:

1. Stop engine, wait for all parts to stop moving and dis-

connect spark plug wire. Remove key from key switch.

Allow the engine and muffler to cool for at least three

minutes.

2. Clean area around fuel fill cap and remove cap.
3. Using a clean funnel, fill fuel tank to 1/2" below bottom

of filler neck to provide space for any fuel expansion.

Install fuel fill cap securely and wipe up any spilled

gasoline.

5.2 REFUELING INFORMATION

5.3 ENGINE OIL

Check the oil level before each use. If needed, fill the engine

with the type and amount of oil specified in the engine

owner's manual. Do not overfill.

Check the condition of the drive belt annually or after every

25 hours of operation, whichever comes first. Replace a

cracked, frayed, worn or stretched drive belt. To adjust the

drive belt, proceed as follows:
1. Move the engagement lever to the start position.
2. Shut engine off.
3. Disconnect spark plug wire.
4. Remove the belt shield by removing the 11 bolts secur-

ing the belt shield to the rotor weldment.

5. Loosen the 5/16" bolt attaching the belt guide to the

engine (Figure 14).

6. Move the engagement lever to vacuum position.
7. To increase tension on the belt, do the following:

a. Loosen the four carriage bolts attaching the engine

plate to the trailer (Figure 15).

5.4 ADJUSTING DRIVE BELT (670cc MODEL)

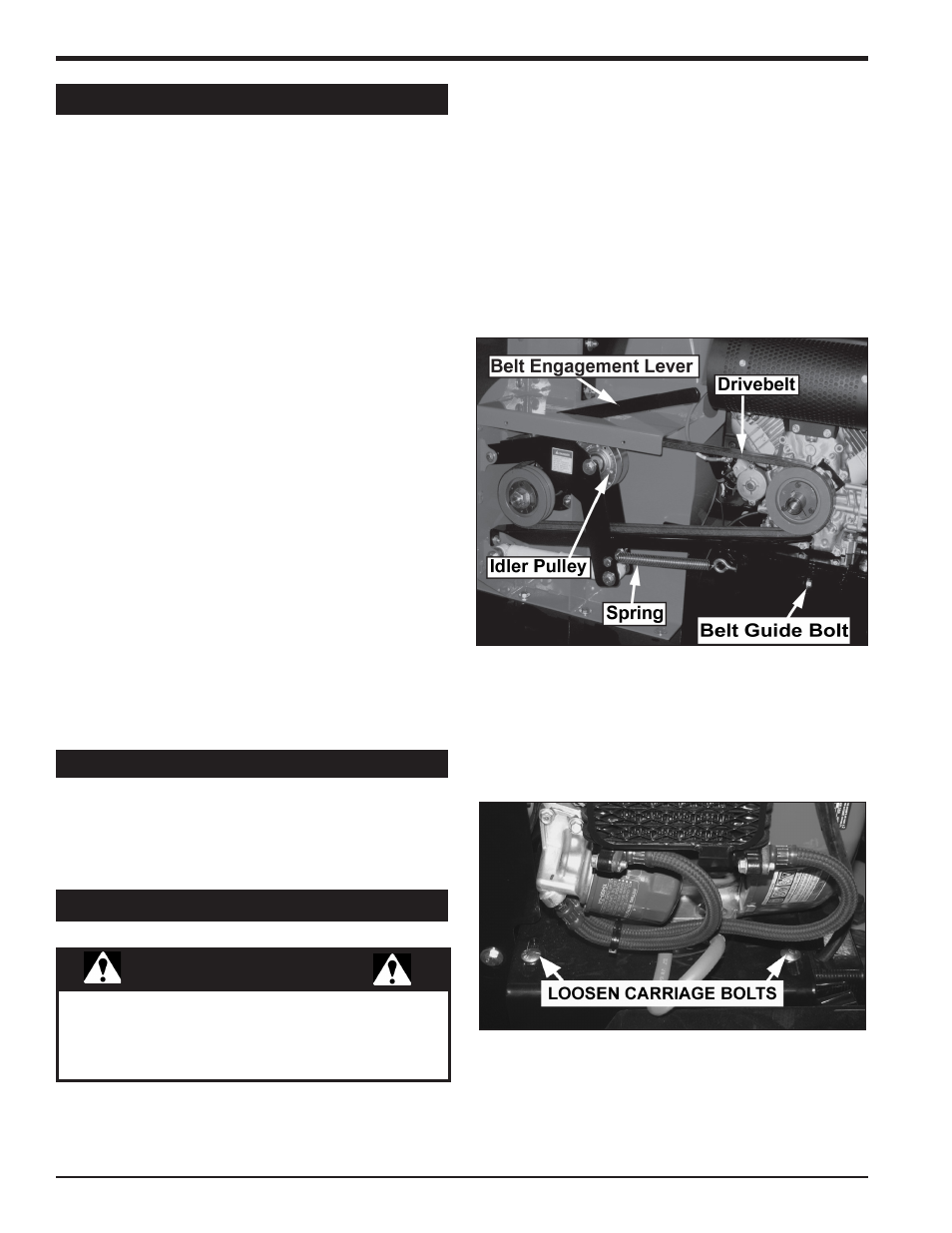

Figure 14, Drive belt, DL12670 (75124)

Figure 15, Engine plate carriage bolts

Before inspecting or servicing any part of this machine,

shut off power source, disconnect spark plug wire from

spark plug and make sure all moving parts have come

to a complete stop.

WARNING
