Debris Loader Owner’s Manual 8
ASSEMBLY
2.3.1 670cc HONDA MODELS
1. Connect the hose to the hose support. To do so, place
an end link from each chain through the hooks provided
in the hose support weldment as shown in Figure 3.
2.3.2 725cc KOHLER MODELS
1. Use the hose clamp to fasten the hose on the fan intake
weldment (Figure 4).
2. Connect the hose wraps to the hose support. To do so,
place a chain link from each chain wrap in the hose
support hooks.
2.3 ATTACH THE VACUUM HOSE

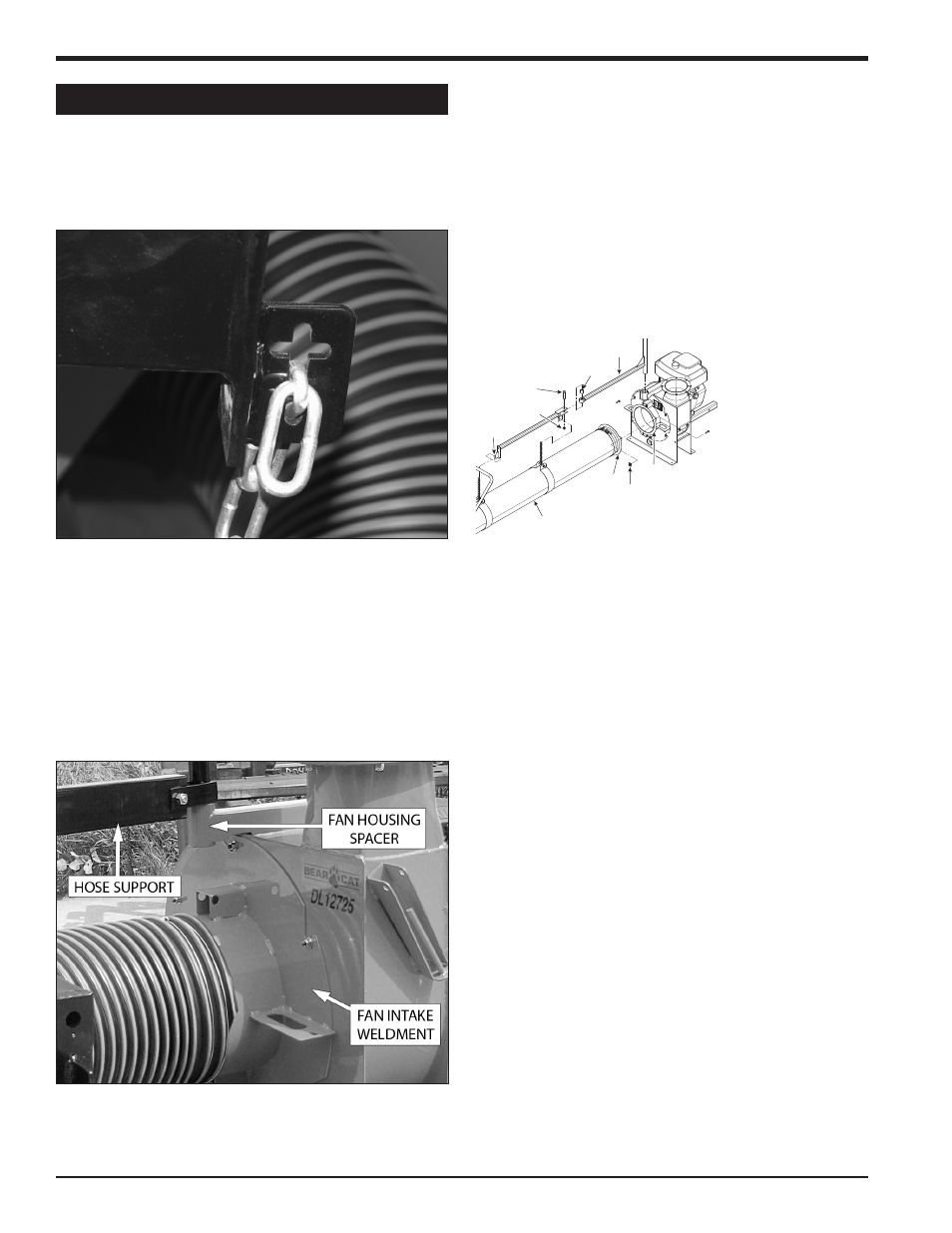

Figure 3, Attaching hose to hose support
Figure 4, Hose attachment, DL12725
1/2” X 2-3/4”
BOLT
SPACER
1/2” NUT
HOSE INLET
ADAPTER
FAN INTAKE
WELDMENT
KNOB
HOSE
SUPPORT
HOSE
HOSE
SUPPORT
HOOKS
2.3.3 HITCH MOUNT MODELS
1. Fasten the hose inlet adapter to the fan intake weld-
ment with the two provided knobs.
2. Assemble the two hose support weldments together
by using the 1/2" x 2-3/4" bolt, spacer and 1/2" center
lock nut provided in the owner's kit (Figure 5).
3. Insert the hose support assembly into the fan housing
spacer (Figure 4).
4. Connect the hose wraps to the hose support. To do so,
place a chain link from each chain wrap in the hose
support hooks.
Figure 5, Hose support assembly (Hitch mount models)
