4.5" BearCat Chipper Operator's Manual

Your chipper may arrive totally or partially assembled.
Perform the steps in this section if your chipper arrives
partially assembled.

2.1 ASSEMBLING THE MACHINE

1. Remove the chipper from the shipping crate.

2. Place the unit on a firm, level surface before attempting

to assemble it.

3. Assemble and attach the Hitch, Axle and Wheels (Sec-

tion 2.2).

4. Attach the Chipper Deflector (Section 2.3) or Optional

Discharge Tube (Section 2.4). The Optional Discharge
Tube is purchased separately.

5. Attach the Chipper Chute (Section 2.5).

6. Attach the Chipper Chute Extension Chute (S Models)

(Section 2.6).

7. Connect the Battery (Models 77412, 77412S) (Section

2.7).

8. Check engine oil (see engine owner's manual) and fill the

gas tank with fresh gasoline.

IMPORTANT

DO NOT ATTEMPT TO START THE ENGINE AT THIS
TIME. Wait until you have read the complete Owner's
Manual.

Section

Assembly

2

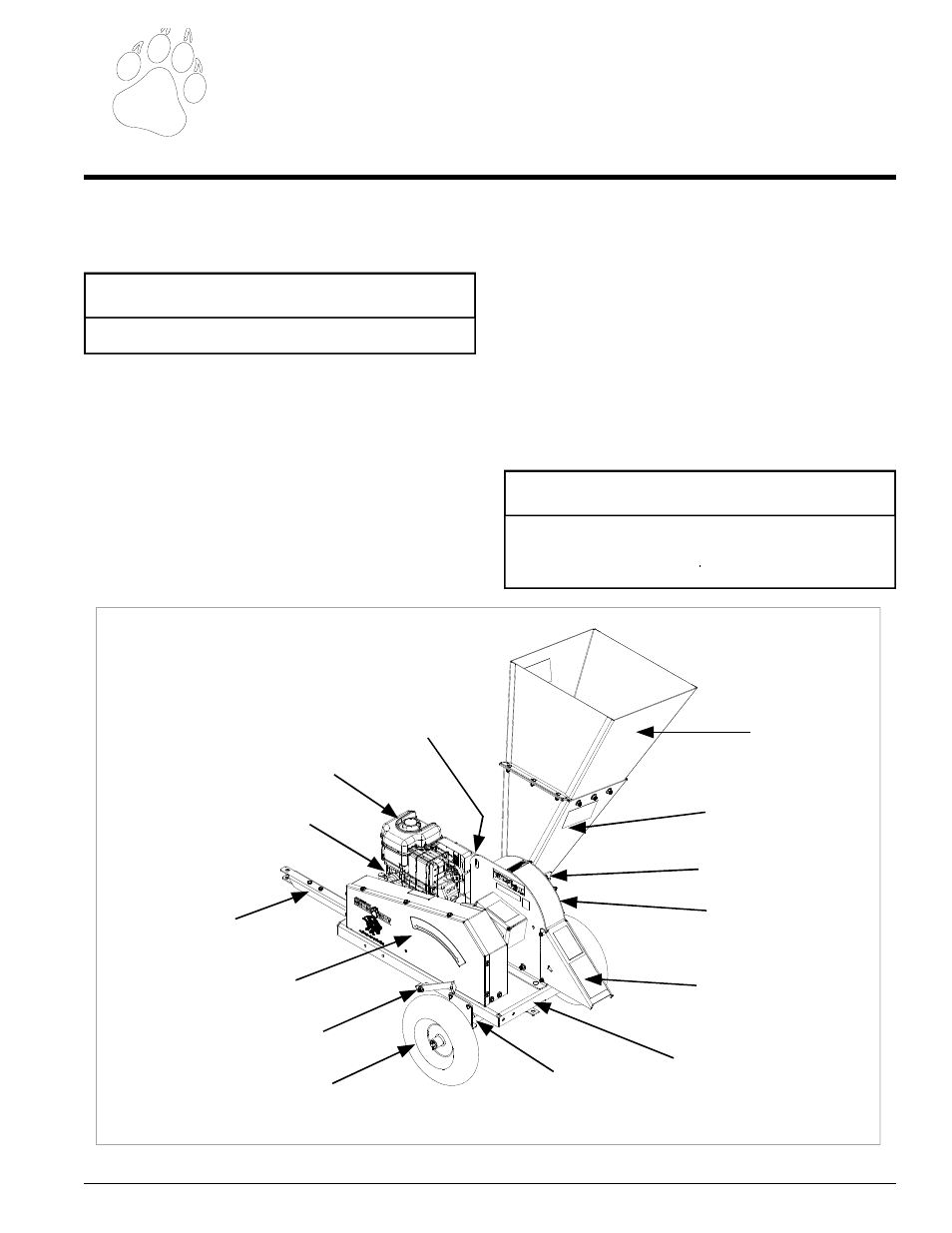

Figure 2.1 - Chipper Assembly

Chipper Chute
Extension Chute
(S Models only)

Chipper Chute

Chipping Anvil

Disk Cover

Wheels

Drive Belts and
Belt Guard

Hitch

Engine

Fuel Tank

Battery

Chipper Deflector

Chipper Engagement Lever

Axle

Trailer

NOTE

REFER TO THE PARTS BOOK DURING ASSEMBLY
