4 INCH CHIPPER

11

ENGLISH

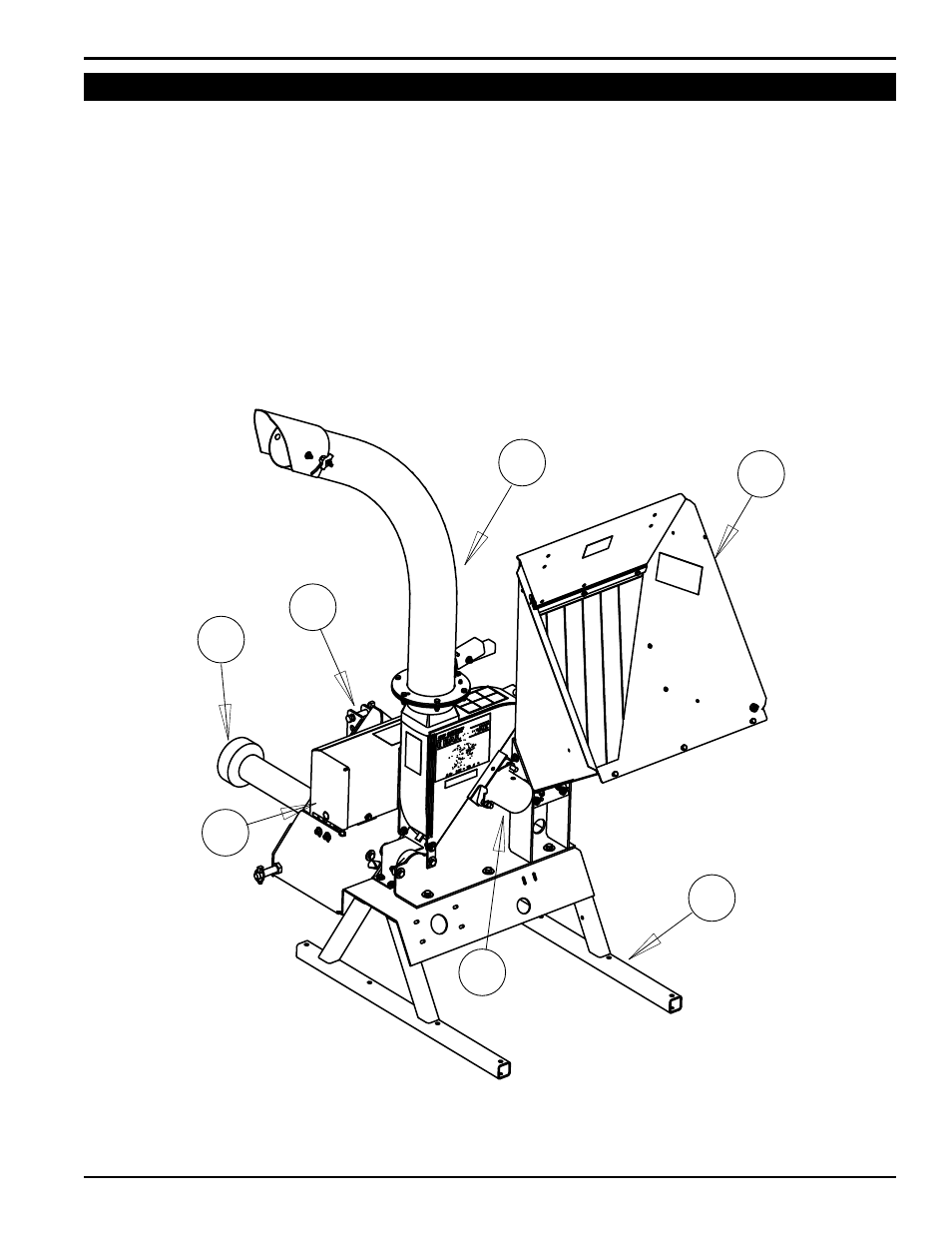

FEATURES AND CONTROLS

3.2 pTo modEL CoNTRoLS

1. Three point hitch connection: Mounts chipper to

tractor three point hitch.

2. pTo driveline: Connects chipper to tractor pto

shaft. Avoid driveline angles over 20 degrees on PTO

when unit is in use. NOTE: Minimum and maximum

telescoping on the PTO driveline are 18.11" and 24.49".

This will leave a 6.43" overlap. See Section 2.10 for

instructions on checking driveline length.

3. belt guard: never remove shield while machine is

running.

1

2

6

4

5

7

3

4. Chipper chute: Feed materials to be chipped through

the chipper chute.

5. Leg stands: never move machine unless the 3 point

is lifted and legs clear the ground.

6. discharge tube: Chipped materials exit through the

rotatable discharge chute.

7. Rotor shaft bearing cover: Covers rotor shaft and

bearing.
