4 attach chipper chute, 5 attach extension tray (euro model only), 6 attach discharge tube – Echo 73413 Owners Manual v.3 User Manual
Page 11: English, Warning

4 INCH CHIPPER
7
ENGLISH
ASSEMBLY
EXTENSION
TRAY HINGE
3/8” x 1-1/4”
BOLT
3/8” NUT
3/8” WASHER
5/16”
NUT
EXTENSION
TRAY LIPS
3/8” x 1”
CARRIAGE
BOLT
STUD
GAS
SPRING
STUD
CHIPPER
CHUTE LIPS
3/8”
WASHER 3/8”
NUT
5/16”
NUT

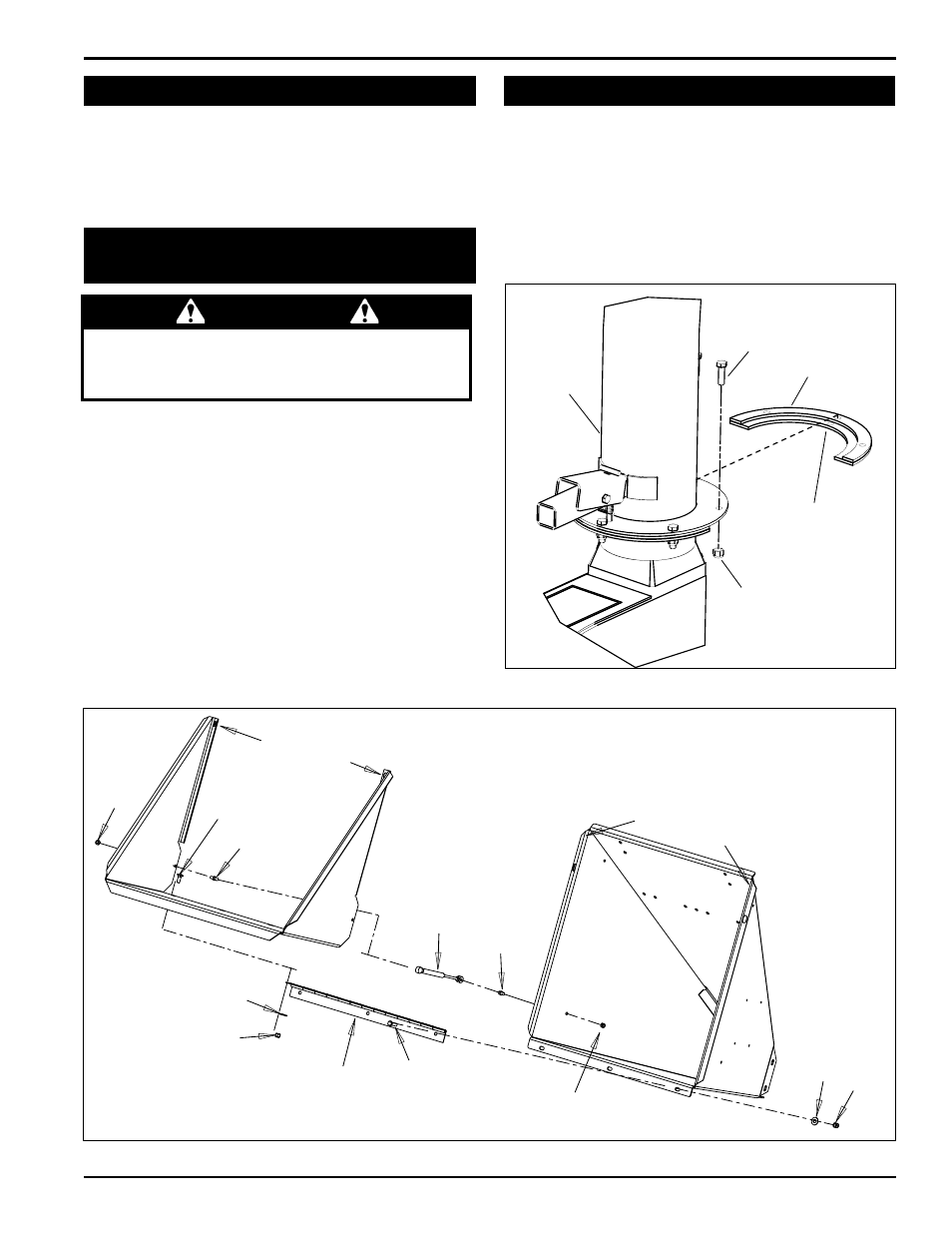

Figure 2.4, Chipper discharge assembly
Figure 2.3, Attaching the extension tray
WaRNING
do not operate this unit without the chipper chute
correctly installed. Rotating cutting blades can cause
serious personal injury.
BLOWER
DISCHARGE
TUBE
3/8” x 1-1/4”
BOLT
3/8” NYLOCK
NUT
DISCHARGE
CLAMP
SPACER
2.4 aTTaCH CHIppER CHuTE
2.5 aTTaCH ExTENSIoN TRaY
(EuRo modEL oNLY)
2.6 aTTaCH dISCHaRGE TubE
1. Slide the blower tube discharge clamp underneath the
mounting flange on the chipper frame.
2. Install the second half of the spacer and clamp
(included in owner's kit) to the tube and flange with 3/8"
x 1-1/4" bolts and nylock nuts (Figure 2.4). Rotate the
tube 360 degrees to make sure it is mounted correctly.
lock it in place with the lock lever.
1. use a support or hoist to hold the chipper chute in
place on the chipper frame.
2. Mount the chute to the chipper housing using six 3/8"
x 1" carriage bolts and nylock nuts.
1. attach the extension hinge to the chipper chute with
three 3/8 x 1-1/4" bolts, washers and nylock nuts.
2. Slide the chute extension tray over the chipper chute.
position the lip of the extension tray behind the lip on
the chipper chute (Figure 2.3). Align the three bolt
holes in the chute extension tray with the bolt holes
in the hinge.
3. Insert three 3/8 x 1" carriage bolts through the tray and
the extension hinge. Secure the bolts with washers
and nuts.
4. Connect the gas spring to the side of the chipper chute
and extension tray with ball studs and 5/16" nylock nuts
as shown in Figure 2.3.
