4 INCH CHIPPER

8

ASSEMBLY

gasoline and diesel fuels are highly

flammable and their vapors are

explosive. To prevent personal injury or

property damage:
Store fuel only in approved containers,

in well ventilated, unoccupied buildings,

away from sparks or flames. A container

with a capacity of 2 gallons or less with

a pouring spout is recommended. Do not fill the fuel

tank while the engine is hot or running, since spilled

fuel could ignite if it comes in contact with hot parts

or sparks from ignition. Do not start the engine near

spilled fuel. Never use fuel as a cleaning agent. DO

NOT MIX OIl WITH FuEl.

To install the battery:

use the battery cover, battery angle bracket, two 5/16"

1.

l-type battery bolts, nylock nuts and washers from the

owner's kit to install the battery between the chipper

frame and engine mount (Figure 2.5).
Place the cover over the battery (non-terminal side)

2.

and set on trailer with the cover positioned between

the chipper frame and the battery.
Place the angle bracket over the opposite side of the

3.

battery (terminal side).
Run the two battery bolts through the bolt holes in the

4.

bottom of the trailer frame and angle bracket. Secure

with washers and nuts on the tops of the bolts.
Connect the positive battery cable to the positive

5.

battery terminal and the negative cable to the negative

terminal.

WaRNING

BATTERY

COVER

5/16” x 8-3/4”

L-TYPE BOLT

5/16”

WASHER

5/16”

NUT

BATTERY

ANGLE

Check the oil level. If needed, fill the engine with the

type and amount of oil specified in the engine owner's

manual.

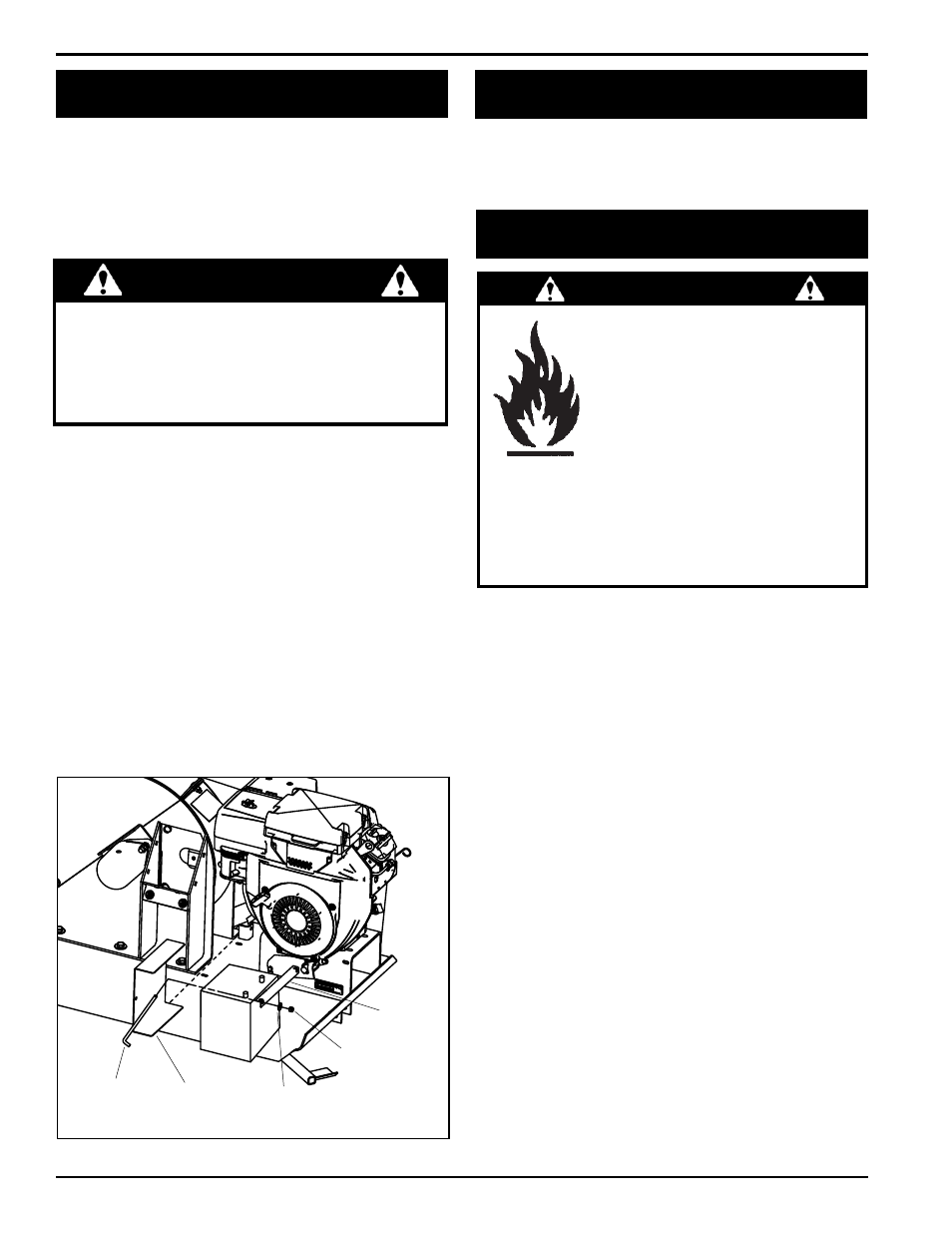

Figure 2.5, Installing the battery

2.7 INSTaLL baTTERY

(ENGINE modEL oNLY)

2.8 CHECk/add moToR oIL

(ENGINE modEL oNLY)

2.9 FILL THE FuEL TaNk

(ENGINE modEL oNLY)

use only those types of fuels that are recommended in

your engine owner’s manual.

To add fuel:

Stop engine, wait for all parts to stop moving and

1.

disconnect spark plug wire. Remove key from key

switch. Allow the engine and muffler to cool for at least

three minutes.
Clean area around fuel fill cap and remove cap.

2.

using a clean funnel, fill fuel tank to 1/2” below bottom

3.

of filler neck to provide space for any fuel expansion.

Install fuel fill cap securely and wipe up any spilled

gasoline.

you will need to purchase a battery. Choose a battery that

meets or exceeds the following specifications:
Nominal voltage: 12 volt

CCa@ Zero degree: 250

Size: 7-1/8" x 3" x 6-9/16"

Rated Capacity:18 aH

WaRNING

To avoid sparks and a possible explosion or fire due

to a short circuit, do not touch the positive (+) battery

terminal and any surrounding metal with tools, jewelry

or other metal objects. When installing battery cables,

connect the positive (+) cable first and the negative (-)

cable last.
