10

6 INCH CHIPPER

ASSEMBLY

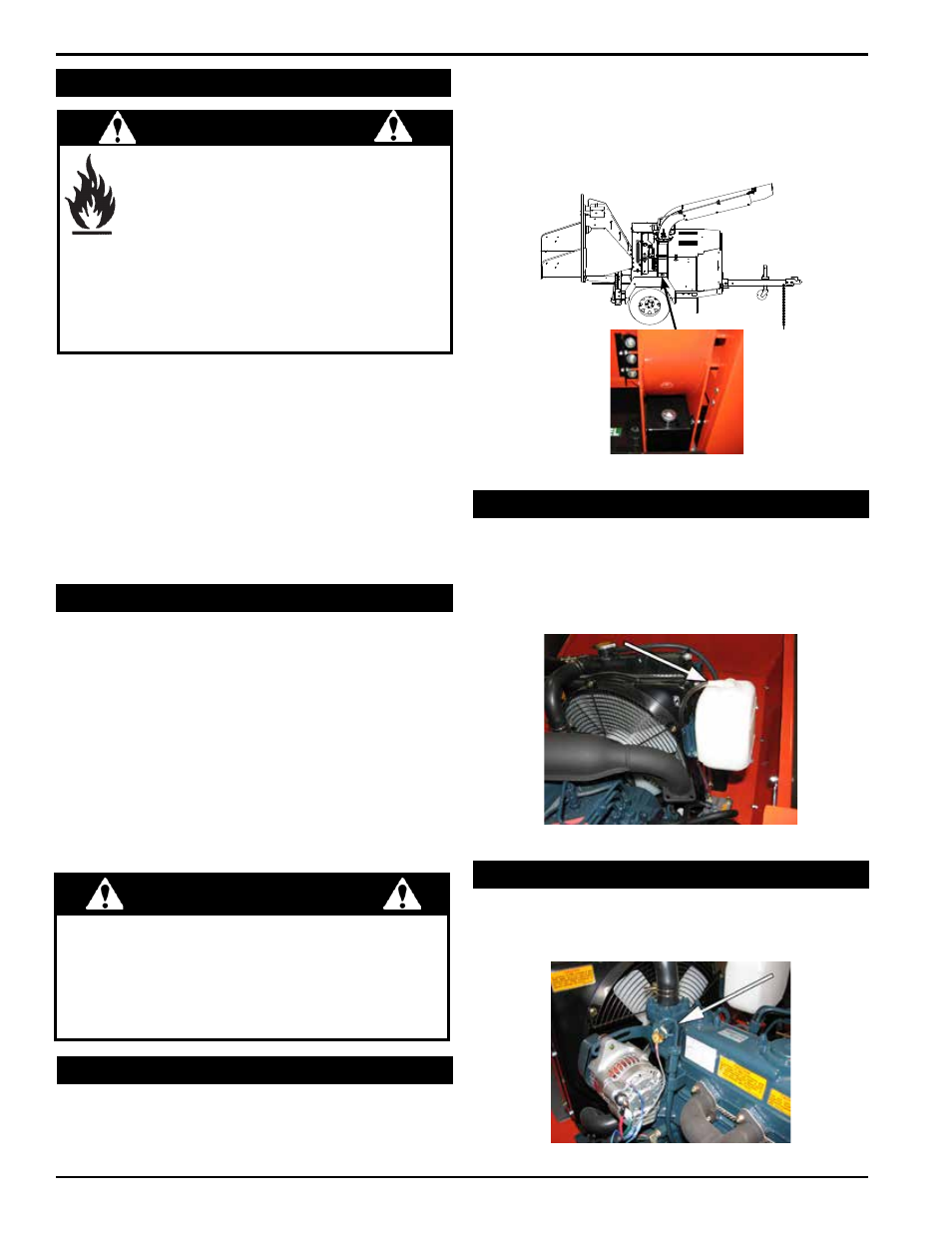

2.10 aDD hYDraulic FluiD

2.11 checK coolanT

you may need to add coolant before you start the diesel

engine. While operating, make sure the fluid is between the

full and the low marks, add if necessary.
Refer to Kubota engine manual for coolant information and

maintenance.

Figure 2.12, Coolant tank

Figure 2.13, Oil level indicator

Figure 2.11, Hydraulic fluid tank

2.12 aDD oil To enGine

Hydraulic fluid drives the feed roller. The machine was

shipped with fluid, as it was tested at the factory. However,

check the fluid levels before initial operation and add if

necessary.

Check the oil level and, if needed, fill the engine crankcase

with the type and amount of oil specified in the engine

owner’s manual.

2.9 connecT BaTTerY

To avoid sparks and a possible explosion or fire due

to a short circuit, do not touch the positive (+) battery

terminal and any surrounding metal with tools, jewelry

or other metal objects. When installing battery cables,

connect the positive (+) cable first and the negative (-)

cable last.

warninG

you will need to purchase a battery. Choose a battery that

meets or exceeds the engine manufacturer’s specifications.

Consult your engine owner’s manual or authorized dealer

for specification details.
To install the battery:

1. Open the battery box and insert battery into the battery

box.

2. Attach the positive (red) battery cable from the engine

to the positive (+) battery terminal.

3. Attach the negative (black) battery cable from the

engine to the negative (-) battery terminal.

4. Secure the cover on the battery box with the strap.

The hydraulic pump requires premium hydraulic fluids

containing high quality rust, oxidation, and foam inhibitors.

These include premium turbine oils, API CD engine oils

per SAE J183, M2C33F or g automatic transmission

fluids meeting Allison C-3 or Caterpillar TO-2, and certain

specialty agricultural tractor fluids.

2.8 Fill The TanK

use only those types of fuels that are recommended in

your engine owner’s manual.

To add fuel:

1. Stop engine, wait for all parts to stop moving and

disconnect spark plug wire. Remove key from key

switch. Allow the engine and muffler to cool for at least

three minutes.

2. Clean area around fuel fill cap and remove cap.

3. using a clean funnel, fill fuel tank to 1/2” below bottom of

filler neck to provide space for any fuel expansion. Install

fuel fill cap securely and wipe up any spilled gasoline.

warninG

gasoline and diesel fuels are highly flammable and

their vapors are explosive. to prevent personal

injury or property damage:
Store fuel only in approved containers, in well

ventilated, unoccupied buildings, away from sparks

or flames. A container with a capacity of 2 gallons

or less with a pouring spout is recommended. Do not fill the

fuel tank while the engine is hot or running, since spilled fuel

could ignite if it comes in contact with hot parts or sparks from

ignition. Do not start the engine near spilled fuel. Never use

fuel as a cleaning agent. DO NOT MIX OIl WITH FuEl.
