6 INCH CHIPPER 7
ASSEMBLY

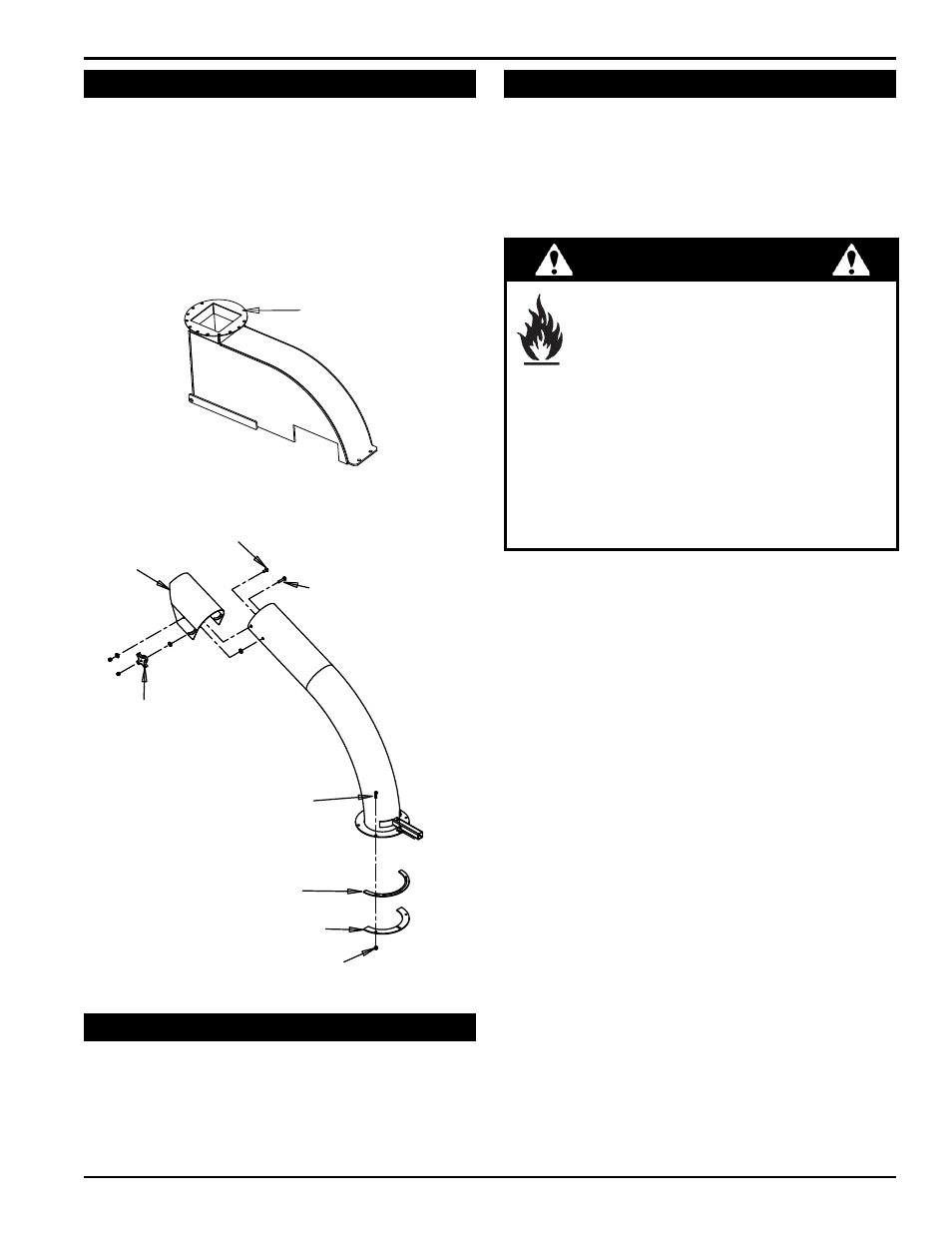

2.4 aTTach discharge Tube
Attach the blower discharge tube to the chipper 1.
frame mounting flange shown in Figure 2.4. Half of
the mounting clamp is already attached to the blower
tube. Slide the tube onto the flange and tighten the
bolts to secure it.
Install the second half of the spacer and clamp to the
2.
tube and flange. Rotate the tube 360 degrees and lock
it in place with the lock pin to make sure it is mounted
correctly.
DISCHARGE
CAP
3/8” x 1” BOLT
3/8” x 2” BOLT
KNOB, 3/8”
INSERT
3/8” x 1-1/4”
BOLT
SPACER
DISCHARGE CLAMP
3/8” NUT
Figure 2.5, Attaching the discharge tube
MOUNTING
FLANGE
Figure 2.4, Mount the discharge to the mounting flange
2.6 add fluids
2.6.2 gasoline
2.6.1 moTor oil
Check the oil level and, if needed, fill the engine crankcase
with the type and amount of oil specified in the engine
owner’s manual.
Use only those types of fuels that are recommended in
your engine owner’s manual.
To add fuel:
Stop engine, wait for all parts to stop moving and 1.
disconnect spark plug wire. Remove key from key
switch. Allow the engine and muffler to cool for at least
three minutes.
Clean area around fuel fill cap and remove cap.
2.
Using a clean funnel, fill fuel tank to 1/2” below bottom 3.
of filler neck to provide space for any fuel expansion.
Install fuel fill cap securely and wipe up any spilled
gasoline.
Warning
Gasoline and diesel fuels are highly
flammable and their vapors are explosive.
To prevent personal injury or property
damage:
Store fuel only in approved containers, in well
ventilated, unoccupied buildings, away from sparks
or flames. A container with a capacity of 2 gallons or
less with a pouring spout is recommended. Do not fill
the fuel tank while the engine is hot or running, since
spilled fuel could ignite if it comes in contact with hot
parts or sparks from ignition. Do not start the engine
near spilled fuel. Never use fuel as a cleaning agent.
do Not MIX oIl WIth fuel.
2.6.3 hYdraulic fluid
Check the fluid levels before initial operation and add if
necessary.
The hydraulic pump requires premium hydraulic fluids
containing high quality rust, oxidation, and foam inhibitors.
these include premium turbine oils, API Cd engine oils
per sAe J183, M2C33f or g automatic transmission
fluids meeting Allison C-3 or Caterpillar TO-2, and certain
specialty agricultural tractor fluids.
2.5 insTall a baTTerY
You will need to purchase a battery. Choose a battery that
meets or exceeds the following specifications:
Nominal Voltage:12 Volts
Size: 7-1/8" x 3" x 6-9/16"
Rated Capacity:18 Ah
Type: MKES17-12
