10 6 INCH CHIPPER

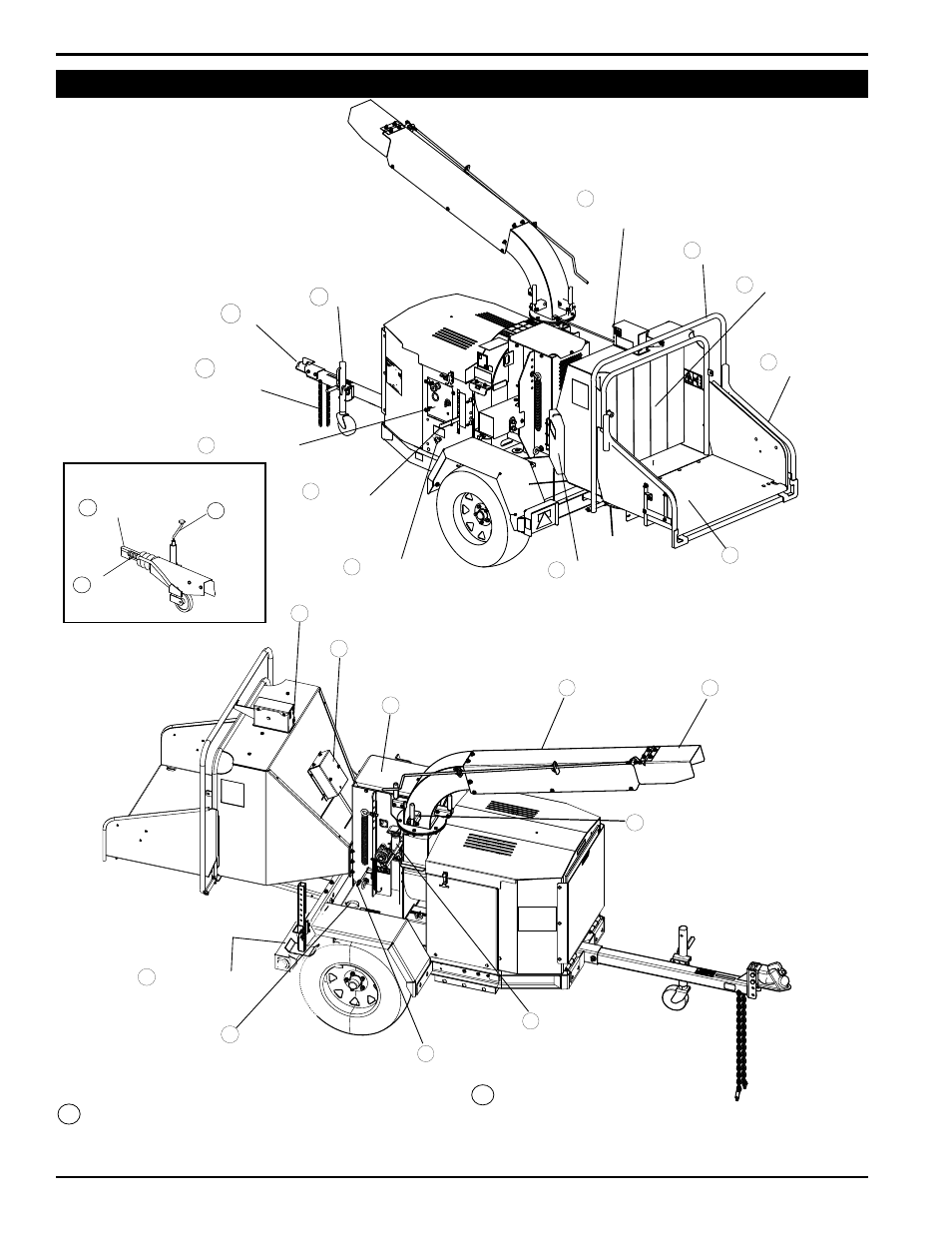

FEATURES & CONTROLS
1 Control Panel
4 Chipper
Engagement
Handle
5 Speed Control 6 Manual Box
7 Chute Extension Tray
10 Feed Roller Control Bar
9 Feed Chute
8 Safety Bar *
11 Reset/Override
Button*
Hitch Jack*
Coupler*
Safety
Chains*
*Items not
available in
all areas.
12
13
14
3.2 CHIppER FEaTuRES
Park
Brake
Coupler Hitch
Jack
European-Style Hitch
13
15
12
1 CoNTRoL paNEL
The fuel gauge, throttle, choke and ignition are located on
the control panel (see Sec 3.1).
2 pLuS 1 CoNTRoLLER
the Plus 1 Controller detects when the chipper blades
are rotating fast enough to begin chipping and allows the
feed roller to engage.
23 Rear Stabilizer
22 Fuel Tank Cover
21 Feed Roller Snap Pin
20 Feed Roller Lift Jack
2 Plus 1 Controller
3 Controller Light
16 Discharge Cap Adjuster
18 Discharge Cap 17 Discharge Chute
19 Chute Turn Handles
