9 INCH CHIPPER
9
Chipper Chute:
1.
Feeds materials to the chipper blades
for chipping.
Discharge Tube:
2.
Chipped material exits through this
tube. It is adjustable 360 degrees.
Rotor Access Cover:
3.
Tilts up to expose rotor.
Drive belt Shield:
4.
Never remove shields when in
use.
Fuel Tank:
5.
Fuel level indicator is located on top.
Pintle Hitch:
6.
Always use safety chains when towing.

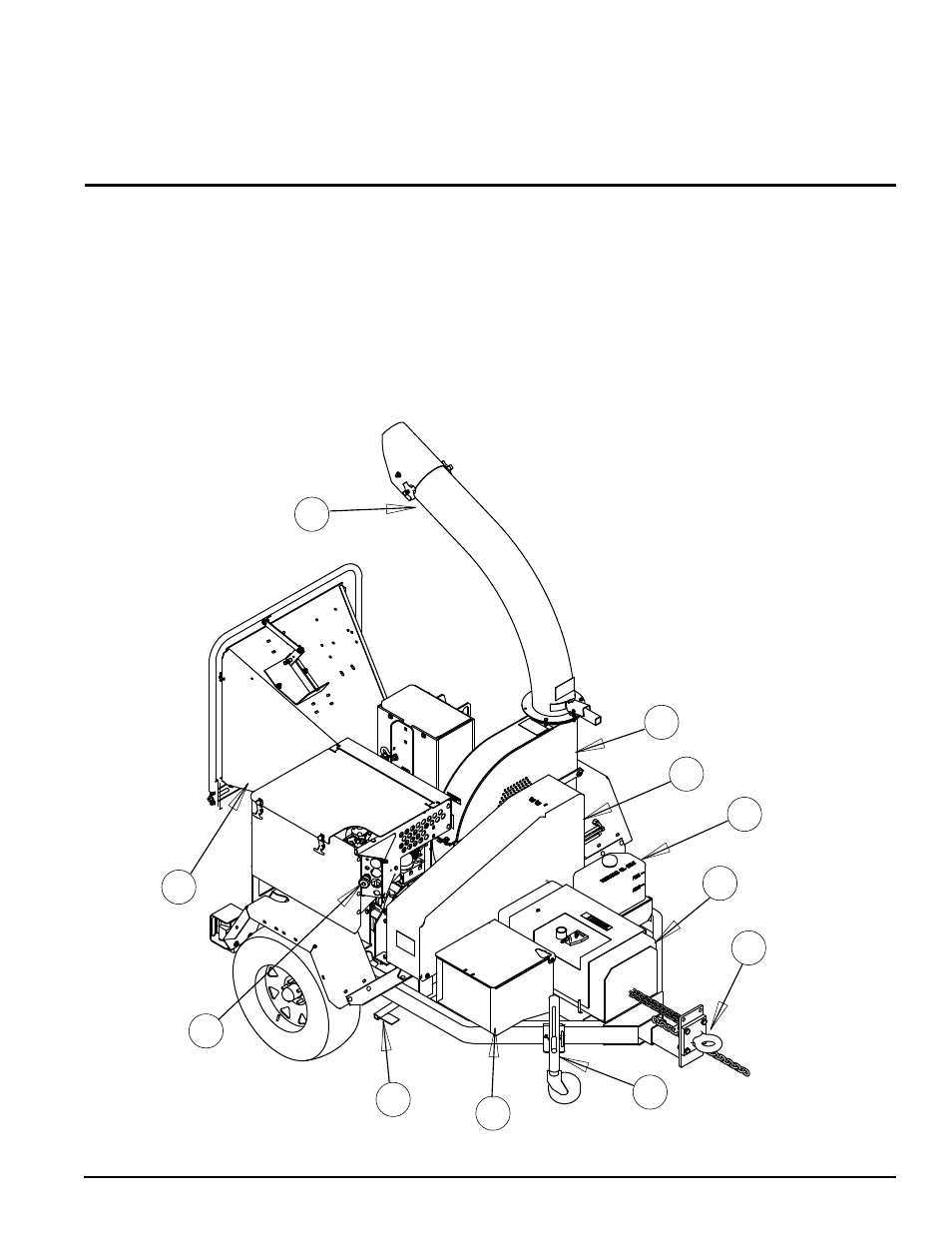

Figure 3.1, 9 inch chipper controls
Section
FEATuRES & CoNTRoLS
3
3
10
2
1
9
8
7
6
5
4
11
Pivoting Tongue Jack:
7.
Always have in uP position
and clear from ground when moving. When in use,
place in DOWN position on a level surface. Turn handle
to raise or lower wheel.
battery box:
8.
Use group 22F 300 CCA min.
belt Engagement Pedal:
9.
Used to disengage rotor
assembly drive belt.
Control Panel:
10.
Contains the key switch, throttle con-
trol, Murphy switch and gauges.
Hydraulic Fluid Tank:
11.
Check level of hydraulic fluid
before each use.
