9 INCH CHIPPER 8
ASSEMBLY
2.8 ATTACH DISCHARGE TubE
2.12 ADD CooLANT
Check the level of coolant before you start the diesel
engine. While operating, make sure the fluid is between
the full and the low marks. Add if necessary. Refer to the
engine owner's manual for further coolant information.
Slide the tube onto the mounting flange on the chipper 1.
frame (Figure 2.6). The discharge clamp should slide
underneath the lip of the flange. Tighten the bolts to
secure it.
Install the second half of the spacer and clamp on the
2.
discharge tube with 3/8" x 1-1/4" bolts and nuts. Rotate
the tube 360 degrees and lock it in place with the lock
pin to make sure it is mounted correctly.
Attach the discharge deflector to the discharge tube.
3.
Connect the cap with 3/8" x 2" bolts through the bottom
hole in the discharge tube. Run these bolts through
the inside of the tube, the cap, washer, knob, and
then nut. Finish bolting the cap to the tube with 3/8"
x 1" bolts through the end hole in the discharge tube
(Figure 2.7).
2.9 FILL THE FuEL TANk
use only those types of fuels that are recommended in
your engine owner’s manual.
To add fuel:
Stop engine, wait for all parts to stop moving and dis- 1.
connect spark plug wire. Remove key from key switch.
Allow the engine and muffler to cool for at least three
minutes.
Clean area around fuel fill cap and remove cap.
2.
using a clean funnel, fill fuel tank to 1/2” below bottom 3.
of filler neck to provide space for any fuel expansion.
Install fuel fill cap securely and wipe up any spilled
gasoline.
WARNING
gasoline and diesel fuels are highly
flammable and their vapors are
explosive. To prevent personal injury or
property damage:
Store fuel only in approved containers,
in well ventilated, unoccupied buildings,
away from sparks or flames. A container
with a capacity of 2 gallons or less with a pouring spout
is recommended. Do not fill the fuel tank while the
engine is hot or running, since spilled fuel could ignite if
it comes in contact with hot parts or sparks from ignition.
Do not start the engine near spilled fuel. Never use fuel
as a cleaning agent. DO NOT MIX OIl WITH FuEl.
2.10 ADD oIL
2.11 CHECk/ADD HYDRAuLIC FLuID
Check the oil level and, if needed, fill the engine crankcase
with the type and amount of oil specified in the engine
owner’s manual.
Hydraulic fluid drives the feed roller. The machine was
shipped with fluid, as it was tested at the factory. However,
check the fluid levels before initial operation and add if
necessary.
The hydraulic pump requires premium hydraulic fluids
containing high quality rust, oxidation, and foam inhibitors.
These include premium turbine oils, API CD engine oils
per SAE J183, M2C33F or g automatic transmission
fluids meeting Allison C-3 or Caterpillar TO-2, and certain
specialty agricultural tractor fluids.

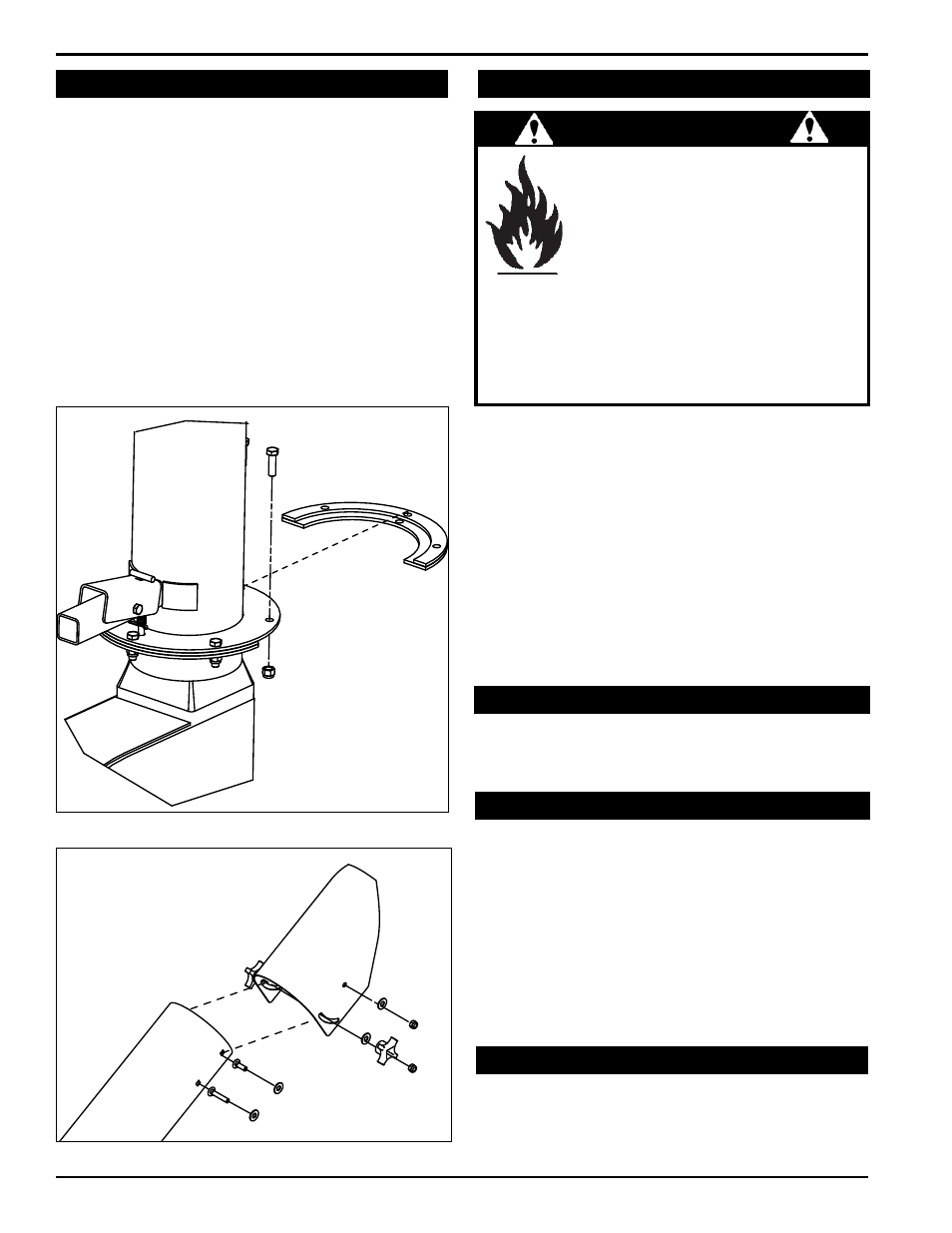

Fig. 2.6
