SECTION 5 - HYDRAULICS

5-10

– JLG Lift –

3121139

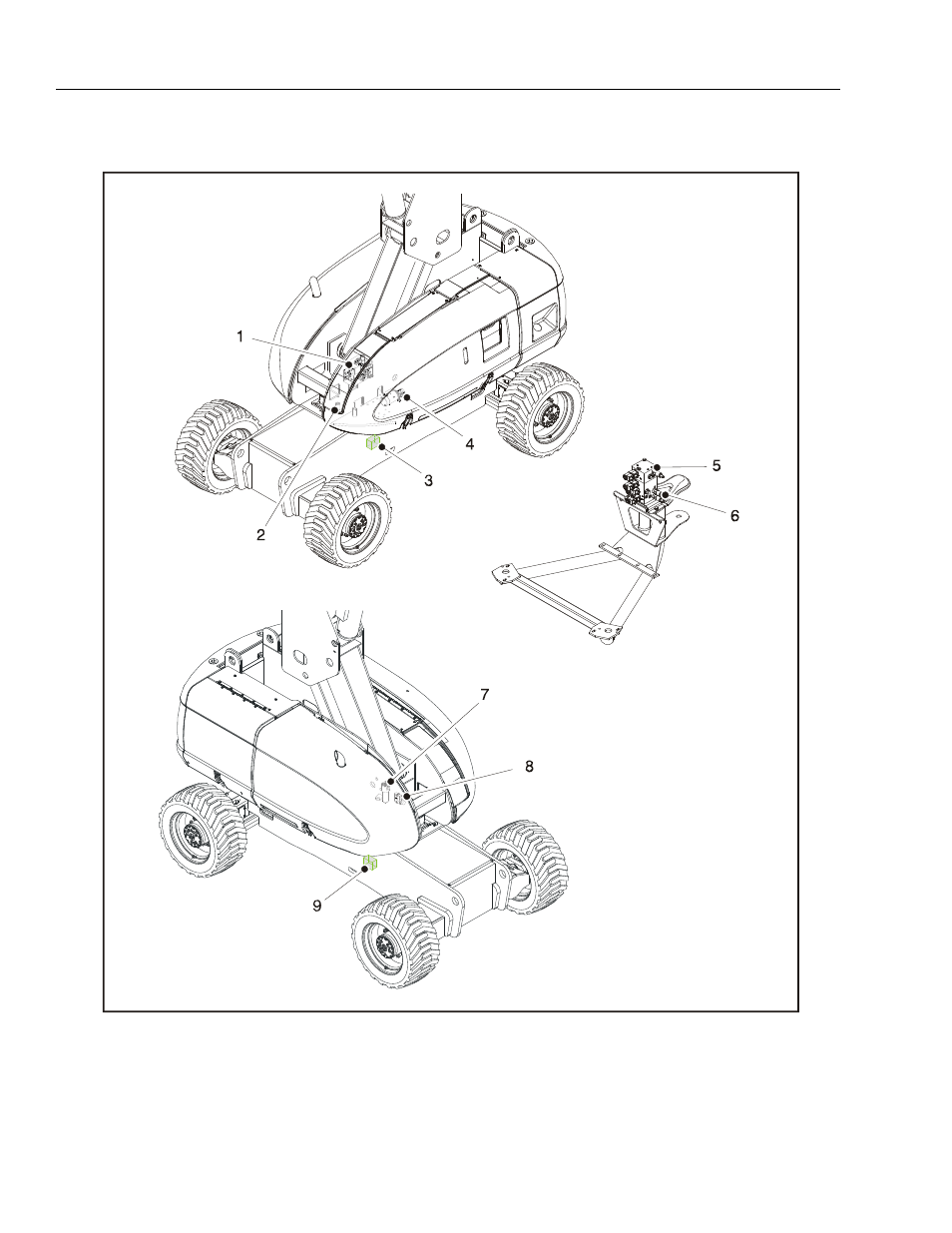

1. Main Valve
2. Platform Valve Filter
3. Dual Flow Divider (4WD)

4. Auxiliary Pump
5. Jib Valve
6. Platform Valve

7. Hydraulic Filter
8. Dual Select Valve
9. Flow Divider (2WD)

Figure 5-14. Control Valve Installation
