SECTION 4 - BOOM & PLATFORM

4-36

– JLG Lift –

3121139

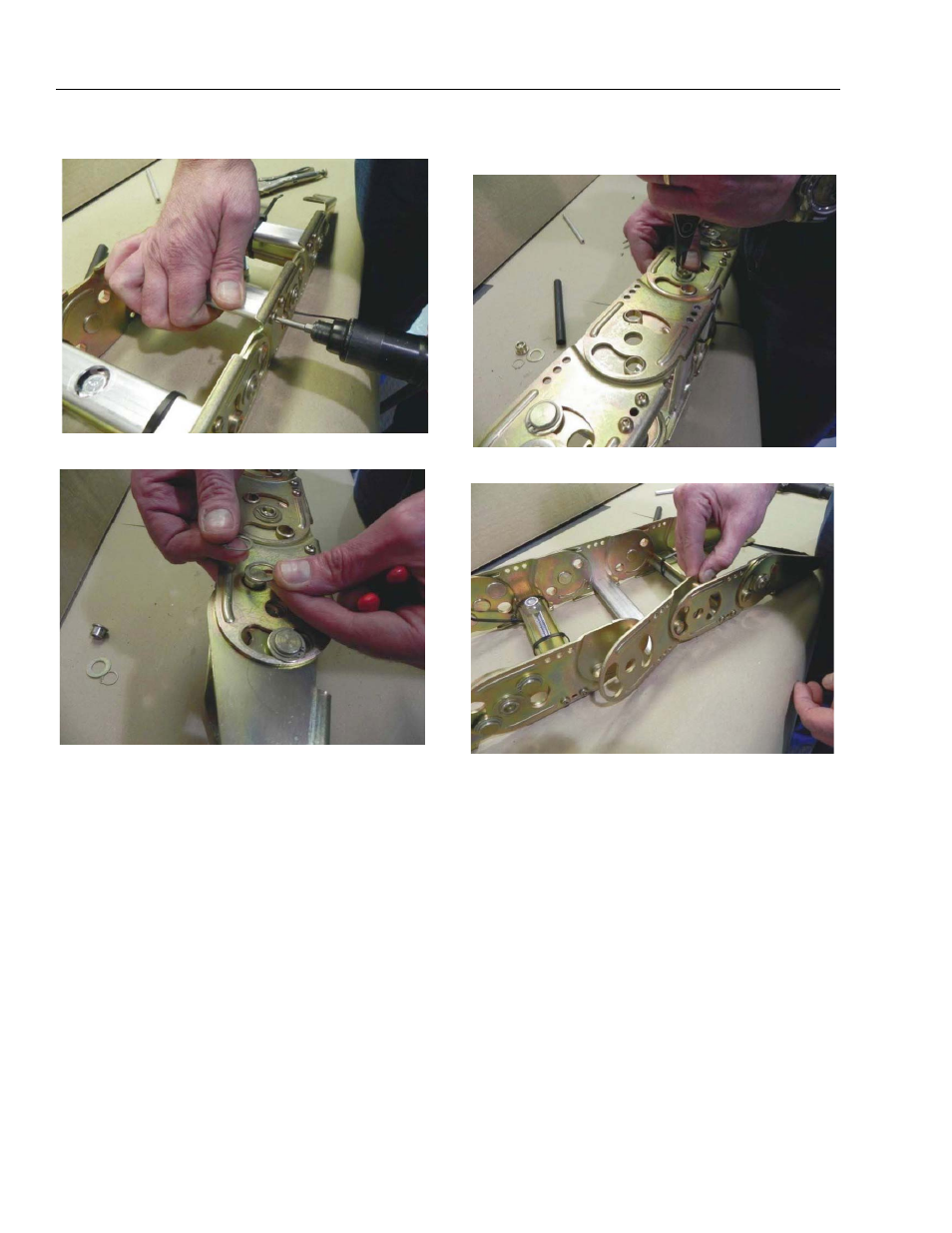

4. Hold the flat bar and remove the screws.

5. Remove the snap rings and pins.

6. Remove the screws from the bar. Remove the snap

ring and pin.

7. Slide the link out.
