SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3121684 – JLG Lift – 3-19
3.10 PLATFORM EXTENSION
(See Figure 3-10.)
This machine is equipped with an extension deck, giving the
operator better access to certain work areas. The deck extension
adds length to the front of the platform.
FOR MAXIMUM CAPACITY OF THE DECK EXTENSION SEE SECTION 5, TABLE 5-
2 OR REFER TO THE CAPACITY PLACARD ON THE PLATFORM BILLBOARD.
DO NOT “LOWER” WITHOUT COMPLETELY RETRACTING THE PLATFORM
EXTENSION.
To extend the deck:
1. Pull up on the locking pin (1) on left side mid-rail near
the front of the machine. Rotate pin 90° to hold in up
position.
2. Grasp the top handrails (2) of the extendible deck
and push the extension out until it hits the stops.
3. Re-engage the locking pin (1) and move platform
extension in or out until the locking pin engages.
To retract the deck:
1. Pull up on the mid-rail locking pin (1) and turn the pin
90° to hold in up position.
2. Pull the extension deck all the way back into the main
deck using the top handrail (2).
3. Re-engage the mid-rail locking pin (1) back to the
locked position and engage the hole in the mid-rail.

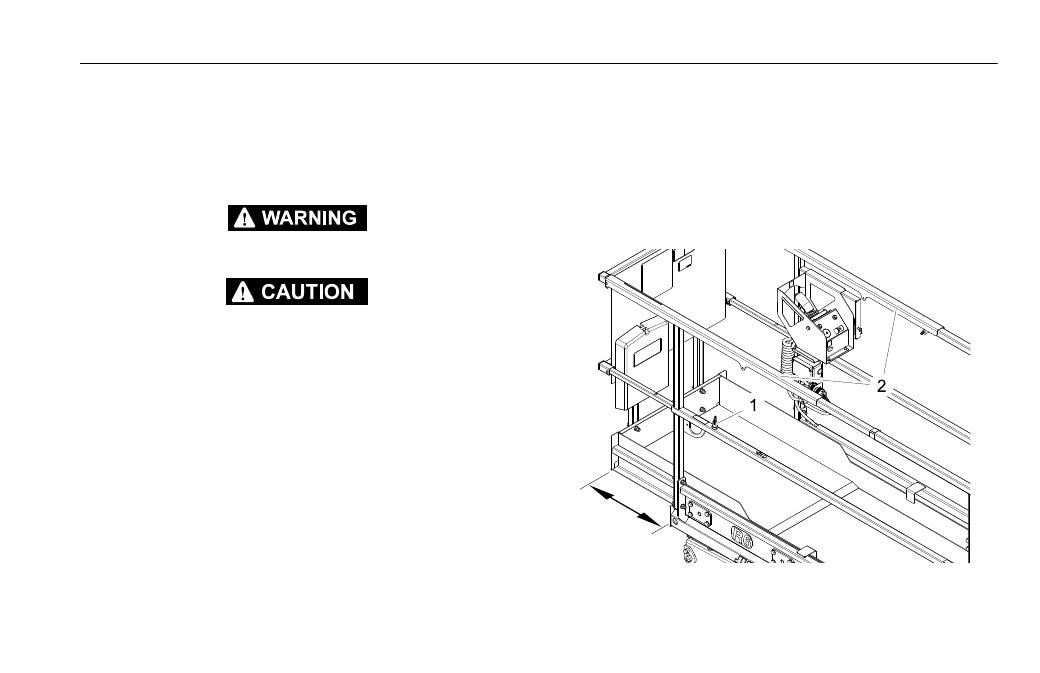

Figure 3-10. Platform Deck Extension
