SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3121684 – JLG Lift – 3-9
Platform Manual Descent Control
The platform manual descent control is used in the event of
total power failure to lower the platform using gravity. The man-
ual descent control T-handle is located on the right rear of the
machine, just in front of the drive wheel.
The lowering procedure is as follows:
1. Locate the manual descent control T-handle.
(See Figure 3-5.)
KEEP HANDS AND ARMS OUT OF THE PATH OF THE SCISSOR ARMS AND PLAT-
FORM WHILE LOWERING.
2. Grasp the T-handle and slowly pull out to lower the
scissor arms/platform, when the platform is lowered
to desired level, allow the T-handle to return to it’s
closed position.

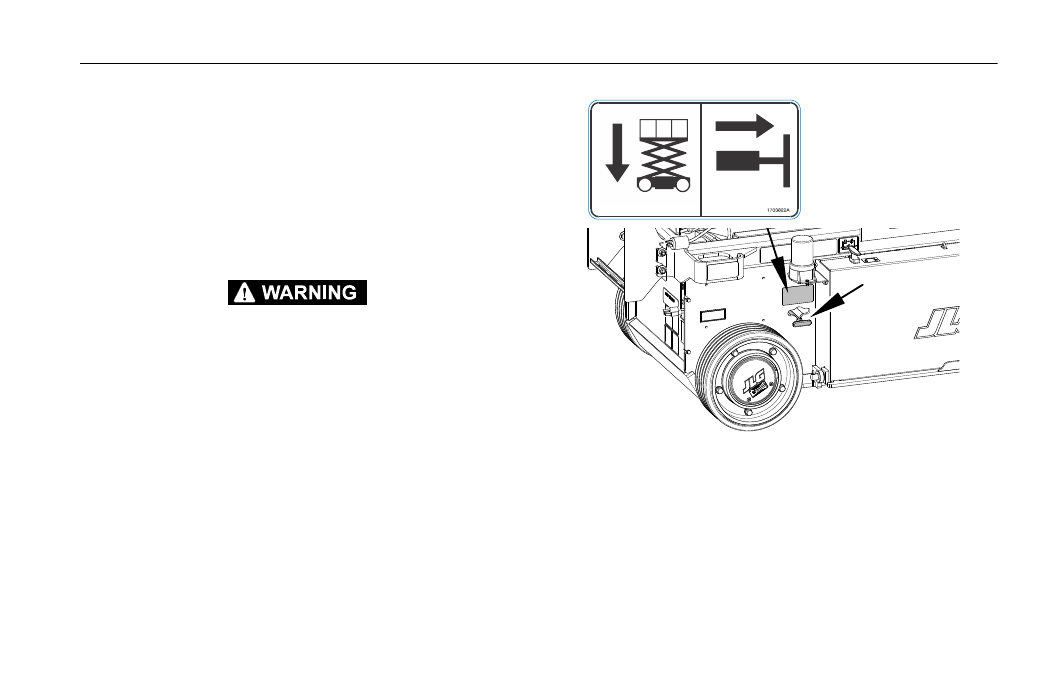

Figure 3-5. Location of Manual Descent Control
(Right Rear of Machine)
