Section 3 - Controls and Indicators
3-2 31200938

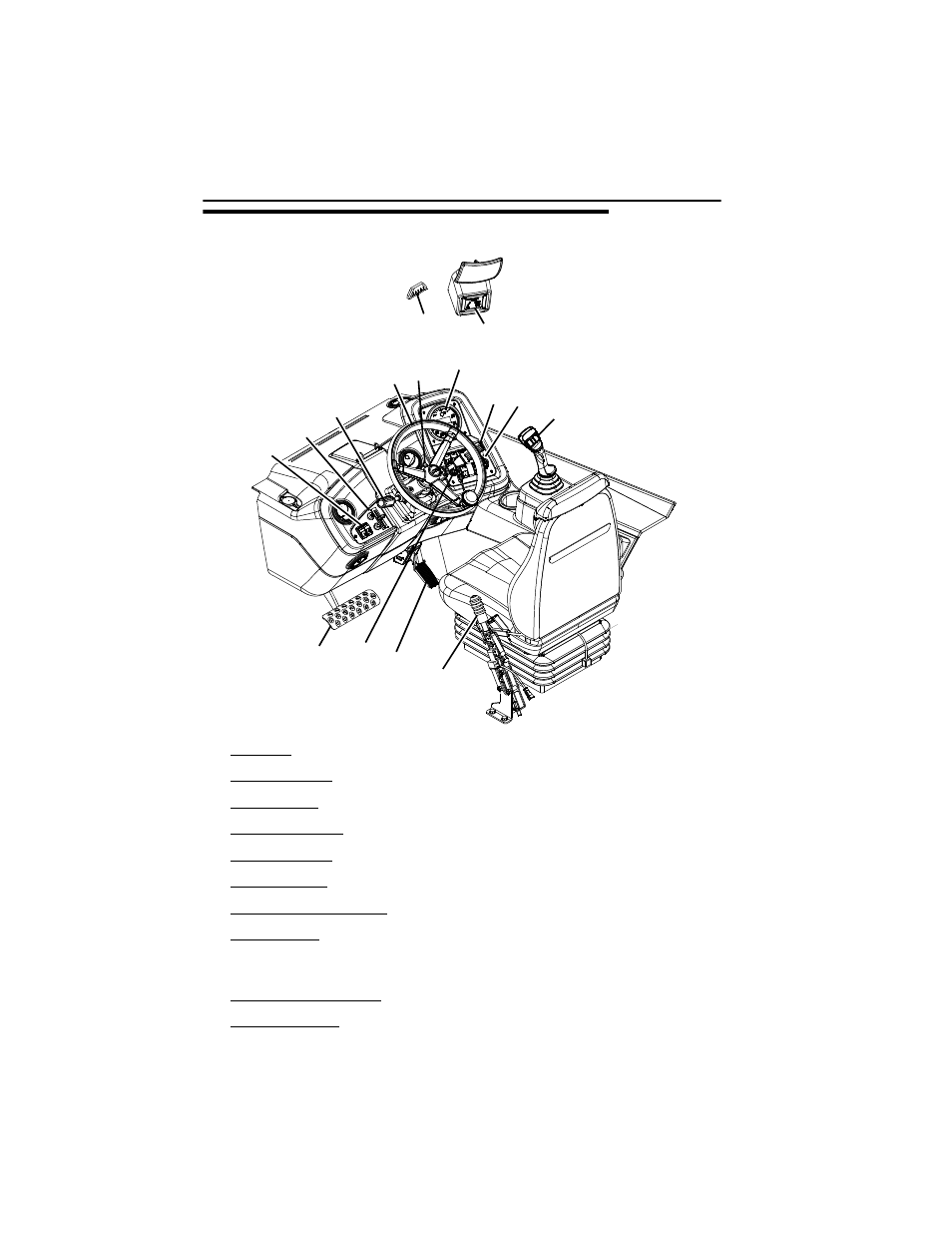

3.2 CONTROLS
1. Park Brake: See page 3-7.
2. Accelerator Pedal: Pressing down the pedal increases engine and hydraulic speed.
3. Ignition Switch: Key activated. See page 3-6.
4. Service Brake Pedal: The further the pedal is depressed, the slower the travel speed.
5. Console Switches: See page 3-20.
6. Climate Controls: See page 3-21.
7. Transmission Control Lever: See page 3-8.
8. Steering Wheel: Turning the steering wheel to the left or right steers the machine in
the corresponding direction. Three steering modes are available. See “Steer Modes”
on page 3-24.
9. Steering Column Adjuster: See page 3-12.
10. Instrument Cluster: See page 3-4.
OZ4010
9
3
1
4
2
6
7
8
5
11
10
12
13
14
5
