SECTION 4 - MACHINE CONTROLS AND INDICATORS

3121197

– JLG Lift –

4-3

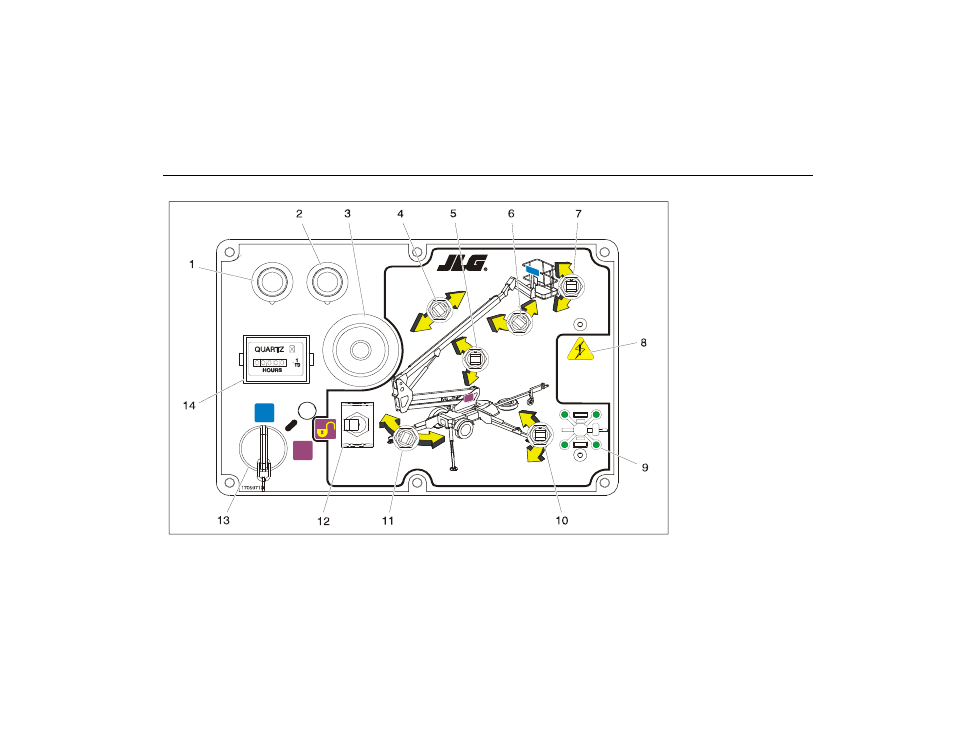

Figure 4-1. Ground Control Station

1. Start
2. Choke
3. Power/Emergency Stop
4. Telescope
5. Lift
6. Jib Lift
7. Platform Level
8. System Distress
9. Outrigger Indicator
10. Outrigger Control
11. Swing
12. Function Enable
13. Platform Ground Select
14. Hourmeter
