ELECTRICAL
G6-42A 91474001 10-26
S/N 0160040678 thru 0160045456
excluding 0160043800

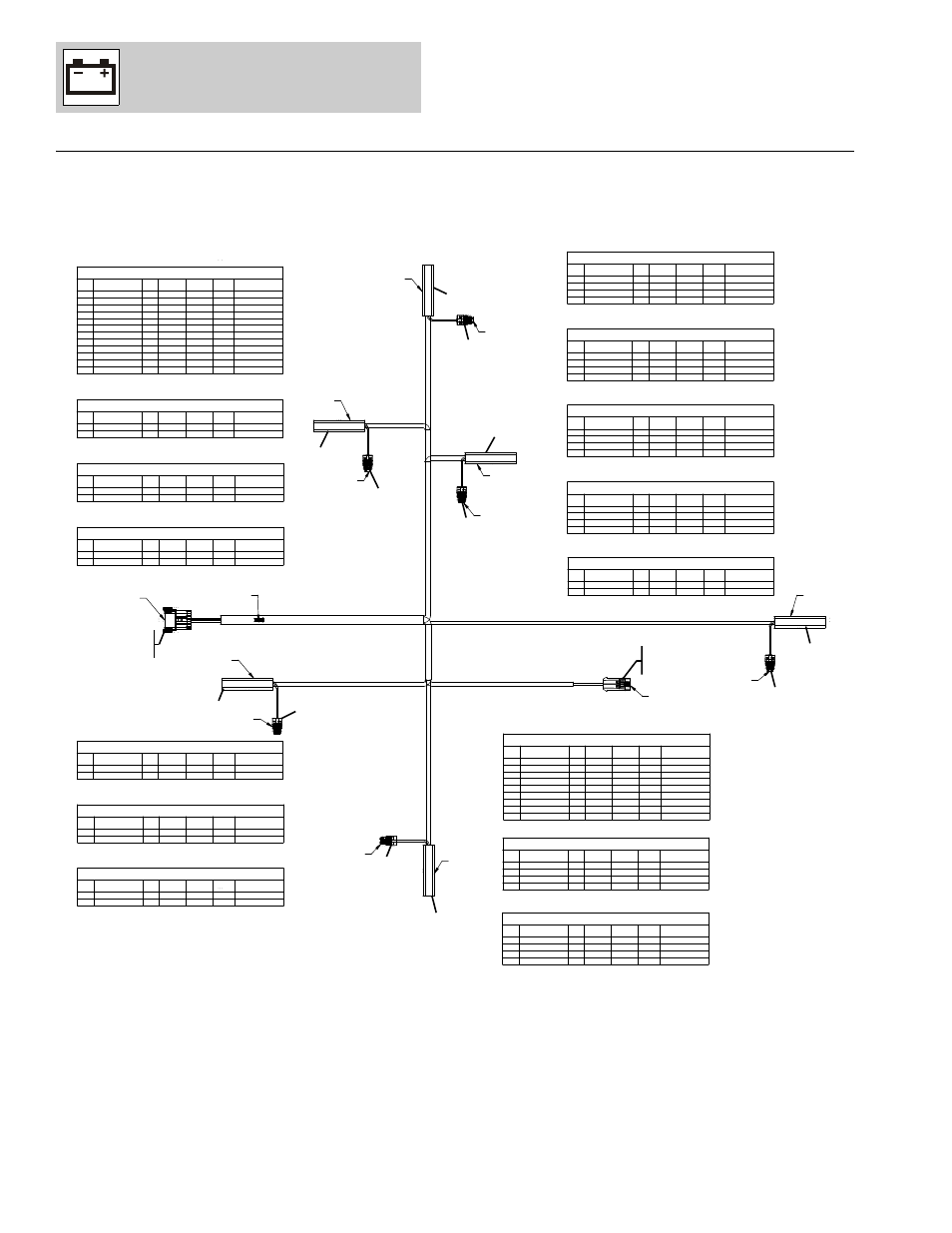

Figure 10-5 Transmission Harness
PAP22290
5
6
H2
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
1 TRANS SOL Y1 BRN 16 AWG GXL D1002 DIODE 4 (1)
2 TRANS SOL Y2 BRN 16 AWG GXL D1002 DIODE 5 (1)
3 TRANS SOL Y3 BRN 16 AWG GXL D1002 DIOCE 6 (1)
4 TRANS SOL Y4 BRN 16 AWG GXL D1002 DIODE 7 (1)
5 TRANS SOL Y5 BRN 16 AWG GXL D1002 DIODE 8 (1)
6 D1013
7 D1013
8 PK BRK SOL VIO 16 AWG GXL D1002 DIODE 9 (1)
9 D1013
10 TRANS TMP SW BLU 16 AWG GXL D1002 TEMPSW (A)
11 ENG GND BLK 16 AWG GXL D1002 SPLICE 13 (1)
12 ENG GND BLK 16 AWG GXL D1002 SPLICE 13 (1)
SOL1
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
A TRANS SOL Y1 BRN 16 AWG GXL 1027 DIODE 4 (1)
B ENG GND BLK 16 AWG GXL 1027 DIODE 4 (2)
SOL2
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
A TRANS SOL Y2 BRN 16 AWG GXL 1027 DIODE 5 (1)
B ENG GND BLK 16 AWG GXL 1027 DIODE 5 (2)
SOL3
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
A TRANS SOL Y3 BRN 16 AWG GXL 1027 DIOCE 6 (1)
B ENG GND BLK 16 AWG GXL 1027 DIOCE 6 (2)
SOL4
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
A TRANS SOL Y4 BRN 16 AWG GXL 1027 DIODE 7 (1)
B ENG GND BLK 16 AWG GXL 1027 DIODE 7 (2)
SOL5
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
A TRANS SOL Y5 BRN 16 AWG GXL 1027 DIODE 8 (1)
B ENG GND BLK 16 AWG GXL 1027 DIODE 8 (2)
PKSOL
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
A PK BRK SOL VIO 16 AWG GXL 1027 DIODE 9 (1)
B ENG GND BLK 16 AWG GXL 1027 DIODE 9 (2)
DIODE 4
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
1 TRANS SOL Y1 BRN 16 AWG GXL H2 (1)
1 TRANS SOL Y1 BRN 16 AWG GXL SOL1 (A)
2 ENG GND BLK 16 AWG GXL SOL1 (B)
2 ENG GND BLK 16 AWG GXL SPLICE 13 (2)
DIODE 5
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
1 TRANS SOL Y2 BRN 16 AWG GXL H2 (2)
1 TRANS SOL Y2 BRN 16 AWG GXL SOL2 (A)
2 ENG GND BLK 16 AWG GXL SPLICE 13 (2)
2 ENG GND BLK 16 AWG GXL SOL2 (B)
DIOCE 6
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
1 TRANS SOL Y3 BRN 16 AWG GXL H2 (3)
1 TRANS SOL Y3 BRN 16 AWG GXL SOL3 (A)
2 ENG GND BLK 16 AWG GXL SPLICE 13 (2)
2 ENG GND BLK 16 AWG GXL SOL3 (B)
DIODE 7
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
1 TRANS SOL Y4 BRN 16 AWG GXL H2 (4)
1 TRANS SOL Y4 BRN 16 AWG GXL SOL4 (A)
2 ENG GND BLK 16 AWG GXL SOL4 (B)
2 ENG GND BLK 16 AWG GXL SPLICE 13 (2)
TEMPSW
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
A TRANS TMP SW BLU 16 AWG GXL 1028 H2 (10)
B ENG GND BLK 16 AWG GXL 1028 SPLICE 13 (2)
SPLICE 13
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
1 ENG GND BLK 16 AWG GXL H2 (11)
1 ENG GND BLK 16 AWG GXL H2 (12)
2 ENG GND BLK 16 AWG GXL DIOCE 6 (2)
2 ENG GND BLK 16 AWG GXL DIODE 5 (2)
2 ENG GND BLK 16 AWG GXL DIODE 8 (2)
2 ENG GND BLK 16 AWG GXL DIODE 9 (2)
2 ENG GND BLK 16 AWG GXL DIODE 4 (2)
2 ENG GND BLK 16 AWG GXL DIODE 7 (2)
2 ENG GND BLK 16 AWG GXL TEMPSW (B)
DIODE 8
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
1 TRANS SOL Y5 BRN 16 AWG GXL H2 (5)
1 TRANS SOL Y5 BRN 16 AWG GXL SOL5 (A)
2 ENG GND BLK 16 AWG GXL SPLICE 13 (2)
2 ENG GND BLK 16 AWG GXL SOL5 (B)
DIODE 9
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TERMINAL
INDEX # TO
1 PK BRK SOL VIO 16 AWG GXL H2 (8)
1 PK BRK SOL VIO 16 AWG GXL PKSOL (A)
2 ENG GND BLK 16 AWG GXL SPLICE 13 (2)
2 ENG GND BLK 16 AWG GXL PKSOL (B)
H2
SPLICE 13
DIODE 9
PKSOL
DIODE 7
DIODE 8
SOL4
SOL5
DIODE 4
DIOCE 6
SOL1
SOL3
DIODE 5
SOL2
TEMPSW
1
2
3
3
3
3
3
3
4
4
4
4
4
4
ZF
