DRIVE TRAIN

G6-42A

91474001

5-14

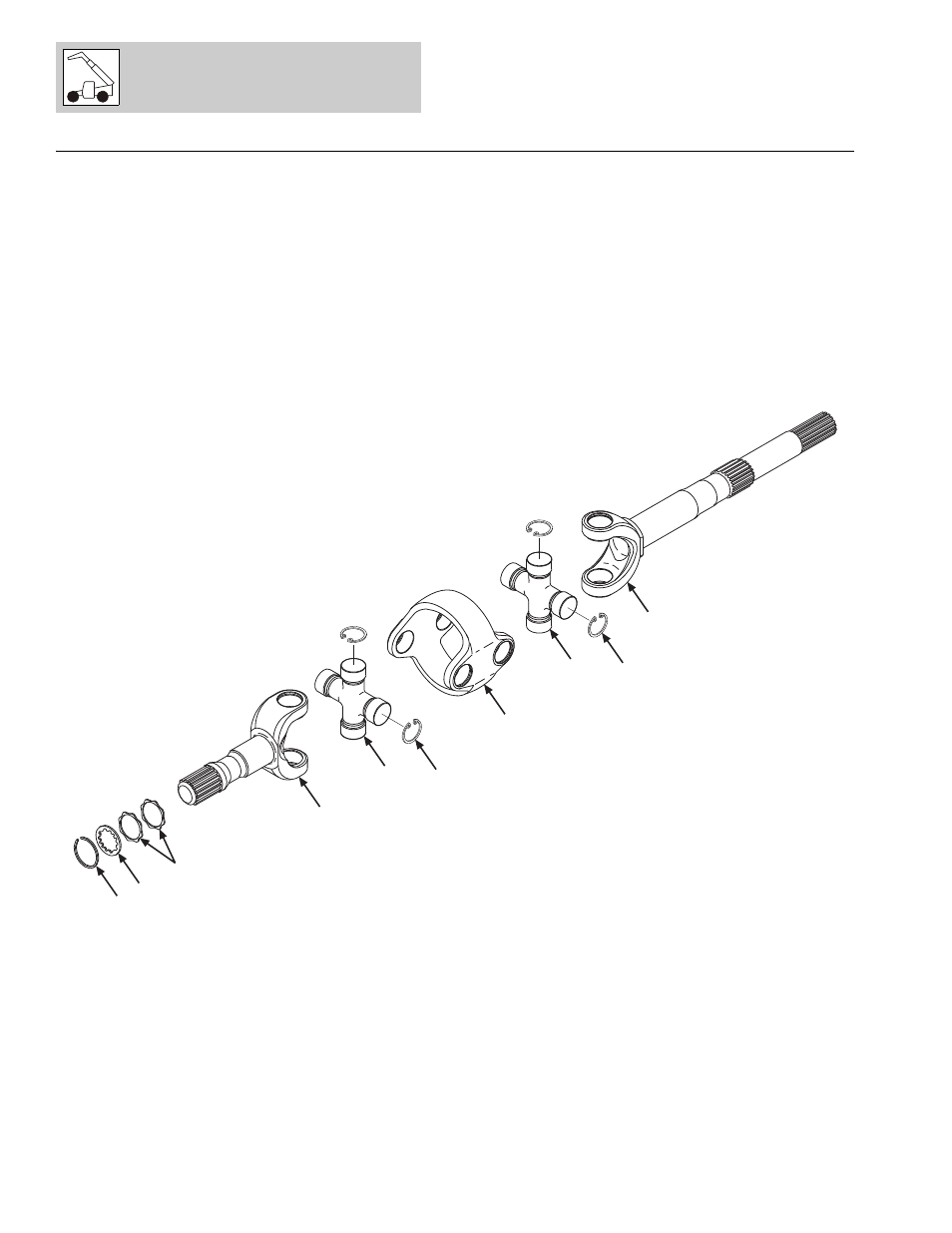

Figure 5-7 Front Double Joint - Carraro

1

2

3

4

5

6

7

8

4

5

NOTE: MACHINES WITH S/N 0190001 THRU 0190007, 0190009,

0190010, 0190012, 0190014, 0190015, 0190016, 0190017,
0190019, 0190020, 0190021, 0190024, 0190026, 0190028,
0190029, 0190033, 0190034, 0190035, 0190037, 0190038 &
0190047 COME EQUIPPED WITH A SQUARE STYLE RING &
WASHER (ITEMS 1 & 8). IF REPLACEMENT OF EITHER OF
THESE ITEMS IS NEEDED, IT REQUIRED TO ALSO ORDER
THE DOUBLE JOINT ASSY (91474132) & THRUST WASHER,
(91474133) TO ACCOMMODATE THE NEWER ROUND STYLE
RING & WASHER.

S/N 0190001 thru 0190457 &

0160000022 thru 0160000843
