ELECTRICAL
G6-42A 91474001 10-18

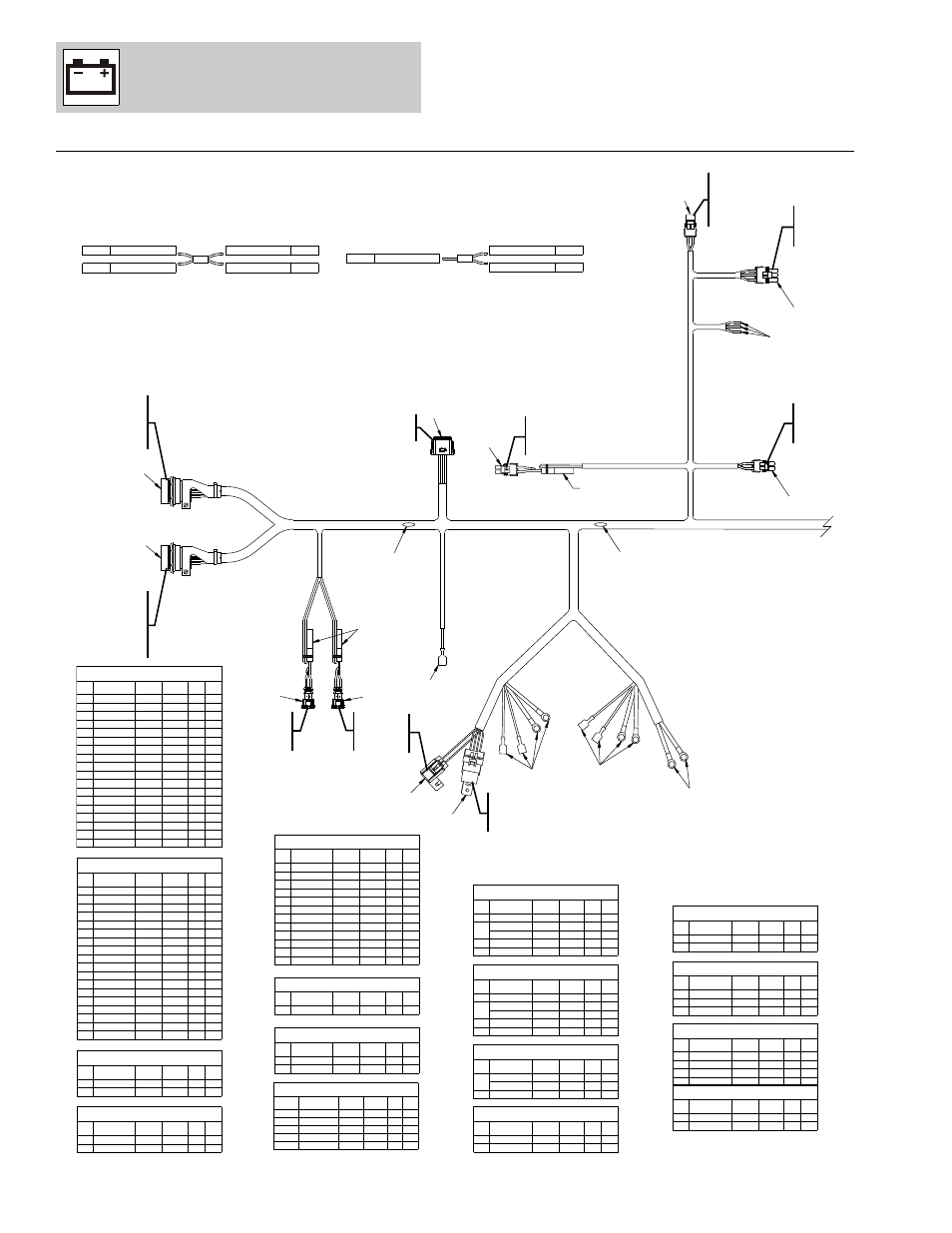

Figure 10-3 Engine Harness - Perkins Engine
PAP18630
X4
CONN
POS
WIRE
DESIGNATION
COLOR GAUGE TYPE TO
1 STR AW VIL/GRN 16 AWG GXL X1
2 GND-8 BLACK 16 AWG GXL X17
A
B
B
A
X2
X3 X4
X5
X6
X7
X8
X9
X10
X11
X12
X13
X14
X15
X16
SP1 SP2
DIODE
DIODE
"BRK SOL" TO X5 16 AWG
16 AWG "BRK SOL" TO X2
"BRK SOL" TO X12 16 AWG
SP2
"PS IGN" TO X21 16 AWG
"PS IGN" TO X25 16 AWG
16 AWG "PS IGN" TO X2
16 AWG "PS IGN" TO X8
SP1
SPLICE INFORMATION
1
2
3
4
2
3
4
5
6
7
8
28
7
8
28 9
10
11
10
12
13
14
15
16
14
15
16
15
16
17
16
20
21
22
X1
A
CB
A B
X1
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 BAT-1 RED 8 AWG GXL X19
2 HR MTR BLU/RED 16 AWG GXL X21
3 HORN ORA/YEL 16 AWG GXL X6
4 FUL GAG BLU/BLK 16 AWG GXL X13
5 ST RLY VIL/ORA 16 AWG GXL X9
6 BAT-2 RED 12 AWG GXL X19
7 SP-1 GRY/ORA 12 AWG GXL X14
8 SP-2 GRY/YEL 12 AWG GXL X14
9 ALT EXC VIL/RED 16 AWG GXL X27
10 SP-3 GRY/BLU 16 AWG GXL X14
11 STR AW VIL/GRN 16 AWG GXL X4
12 STR CRB VIL/YEL 16 AWG GXL X3
13 TRANS-B VIL/TAN 16 AWG GXL X5
14 TRANS-A VIL/WHT 16 AWG GXL X5
15 TRANS-C VIL/GRY 16 AWG GXL X5
16 TRANS-D VIL/DGN 16 AWG GXL X5
17 TRANS-E VIL/BLU 16 AWG GXL X5
18 REV AL BLUE 16 AWG GXL X16 X5
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 TRANS-A VIL/WHT 16 AWG GXL X1
2 TRANS-B VIL/TAN 16 AWG GXL X1
3 TRANS-C VIL/GRY 16 AWG GXL X1
4 TRANS-D VIL/DGN 16 AWG GXL X1
5 TRANS-E VIL/BLU 16 AWG GXL X1
6 BRK SOL BLU/TAN 16 AWG GXL SP2
7 TR LT SW BLU/WHT 16 AWG GXL X2
8 GND-9 BLACK 16 AWG GXL X17
9 GND-10 BLACK 16 AWG GXL X17
10 GND-11 BLACK 16 AWG GXL X17
11 GND-12 BLACK 16 AWG GXL X17
12 GND-13 BLACK 16 AWG GXL X17
X9
TERM
#
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 ST RLY VIL/ORA 16 AWG GXL X1
2
GND-6 BLACK 16 AWG GXL X10
GND-6 BLACK 16 AWG GXL X8
3 START SOL RED/VIL 10 AWG GXL X18
4 ST RLY PWR ORANGE 10 AWG GXL X19
X2
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 GND-1 BLACK 8 AWG GXL X17
2 BACK LT YRL/ORN 16 AWG GXL X15
3 PLUG - - - -
4 PLUG - - - -
5 PLUG - - - -
6 WORK LT YEL/BLU 16 AWG GXL X15
7 GND-2 BLACK 12 AWG GXL X17
8 STOP LT YEL/RED 16 AWG GXL X15
9 PS IGN ORN/DGN 16 AWG GXL SP1
10 OIL GAG BLU/BRN 16 AWG GXL X20
11 CLT TMP BLU/VIL 16 AWG GXL X26
12 BRK SOL BLU/TAN 16 AWG GXL SP2
13 TR LT SW BLU/WHT 16 AWG GXL X5
14 GP SW WHT/BLU 16 AWG GXL X21
15 GP SIG WHT/GRN 16 AWG GXL X10
16 PLUG - - - -
17 PLUG - - - -
18 PLUG - - - -
X3
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 STR CRB VIL/YEL 16 AWG GXL X1
2 GND-7 BLACK 16 AWG GXL X17
X6
TERM
#
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 HORN ORA/YEL 16 AWG GXL X1
X8
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 (30) FP RLY WHT/GRN 16 AWG GXL X7
2 (85) GND-6 BLACK 16 AWG GXL X9
3 (87A) - - - - -
4 (87) FUEL PUMP WHT/VIL 16 AWG GXL X22
5 (86) PS IGN ORN/DGN 16 AWG GXL SP1
X7
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
A FP PWR RED/GRN 16 AWG GXL X11
B FP RLY WHT/GRN 16 AWG GXL X8
X10
TERM
#
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 GP SIG WHT/GRN 16 AWG GXL X2
2
GND-6 BLACK 16 AWG GXL X17
GND-6 BLACK 16 AWG GXL X9
3 GLOW PLG ORN/RED 8 AWG GXL X24
4 GP RLY ORN/BLU 8 AWG GXL X11
X16
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
A REV AL BLUE 16 AWG GXL X1
B GND-5 BLACK 16 AWG GXL X17
X15
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
A BACK LT YRL/ORN 16 AWG GXL X2
B STOP LT YEL/RED 16 AWG GXL X2
C WORK LT YEL/BLU 16 AWG GXL X2
D GND-16 BLK 16AWG GXL X17
X14
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
- SP-1 GRY/ORA 12 AWG GXL X1
- SP-2 GRY/YEL 12 AWG GXL X1
- SP-3 GRY/BLU 16 AWG GXL X1
X13
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
A FUL GAG BLU/BLK 16 AWG GXL X1
B GND-4 BLACK 16 AWG GXL X17
X12
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
A BRK SOL BLU/TAN 16 AWG GXL SP2
B GND-3 BLACK 16 AWG GXL X17
X11
TERM
#
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1
GP PWR RED/GRN 8 AWG GXL X19
FP PWR RED/GRN 16 AWG GXL X7
2 GP RLY ORN/BLU 8 AWG GXL X10
18
19
S/N 0160021195 thru 0160040659
