DRIVE TRAIN

G6-42A

91474001

5-34

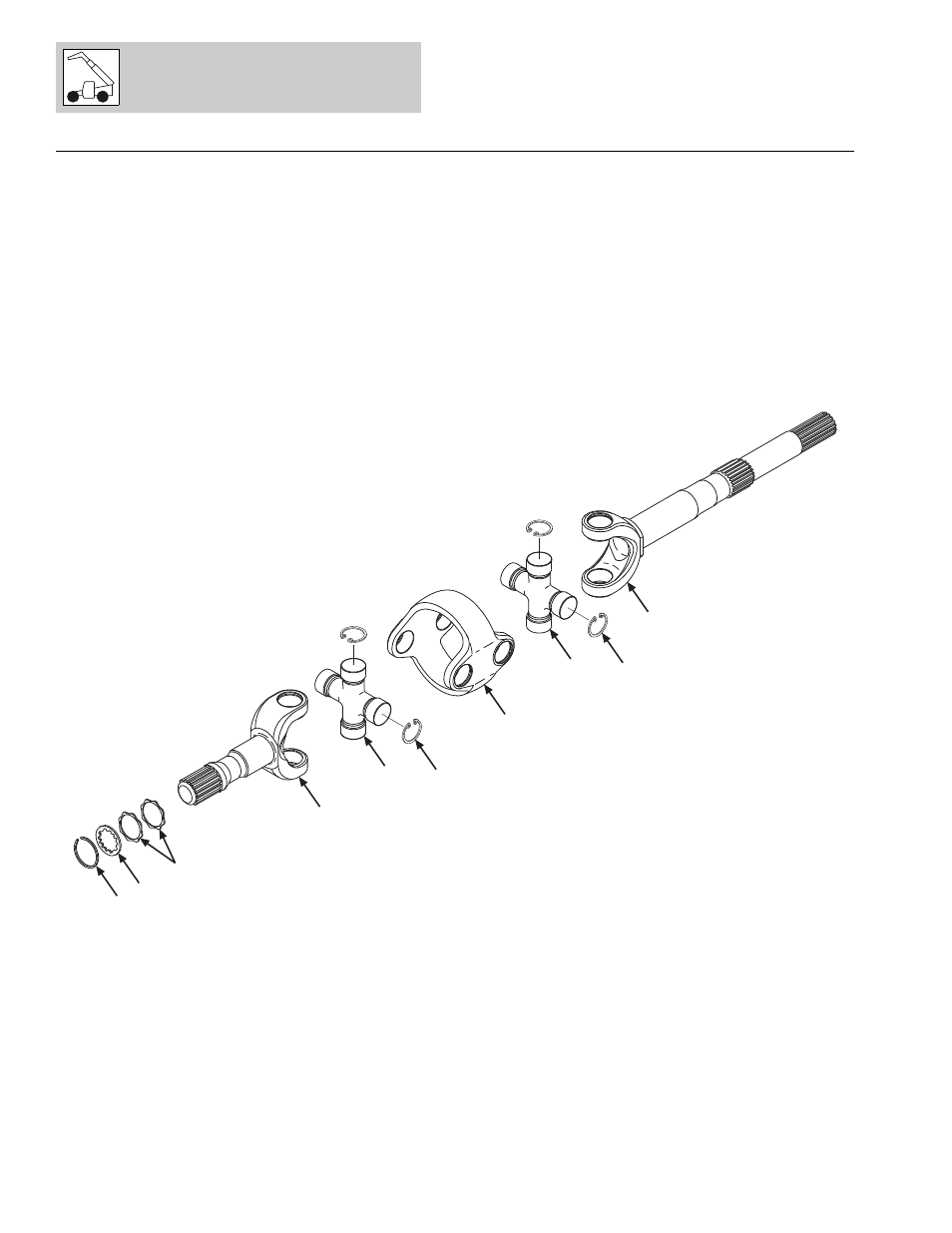

Figure 5-17 Rear Double Joint - Carraro

1

2

3

4

5

6

7

8

4

5

NOTE: MACHINES WITH S/N 0190001 THRU 0190065 COME EQUIPPED

WITH A SQUARE STYLE RING & WASHER (ITEMS 1 & 8).
IF REPLACEMENT OF EITHER OF THESE ITEMS IS NEEDED, IT IS
REQUIRED TO ALSO ORDER THE DOUBLE JOINT ASSY, (91474132)
& THRUST WASHER, (91474133) TO ACCOMMODATE THE NEWER
ROUND STYLE RING & WASHER.

S/N 0190001 thru 0190457 &

0160000022 thru 0160000843
