SECTION 1 - FRAME

28

3369LE/4069LE/M4069/M3369

3121123

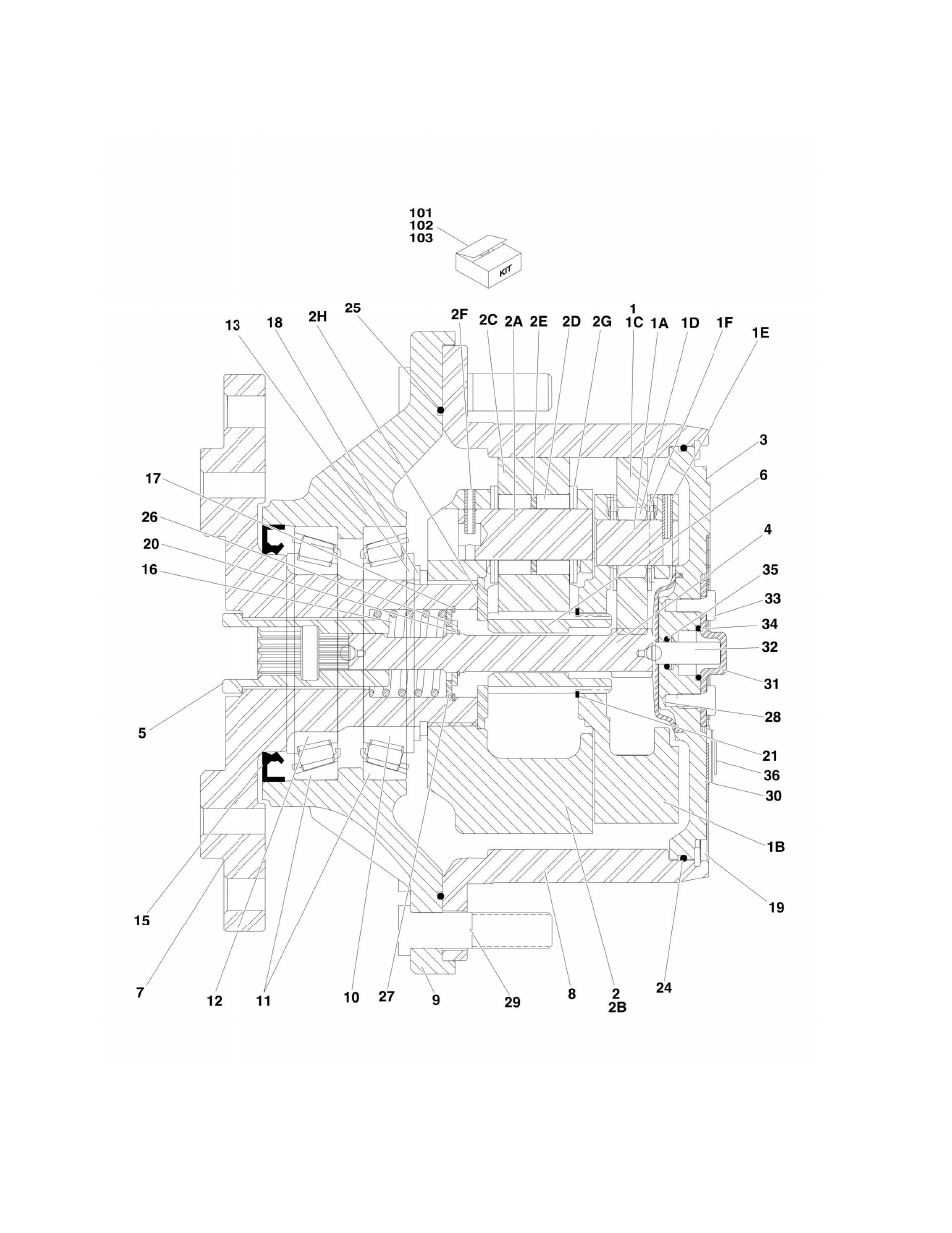

FIGURE 1-7. DRIVE HUB ASSEMBLY (USA BUILT MACHINES) (SN 0200174517 through 0200230091)
