Section 4 - Attachments
4-18 3121857
Fork Extension
P/N Description Weight
2340034 Fork Extension 2 m...................... 44,1 kg (97 lb) each
Use Carriage Attachment Capacity Chart
To determine maximum capacity of the carriage, refer to “Telehandler/Attachment/
Fork Capacity” on page 4-2. The maximum capacity of the carriage when equipped
with fork extensions may be reduced to the capacity indicated on the fork
extensions. If the load exceeds the capacity of the fork extension contact JLG to
obtain forks and/or fork extensions of the proper load rating and length.
Fork Control:

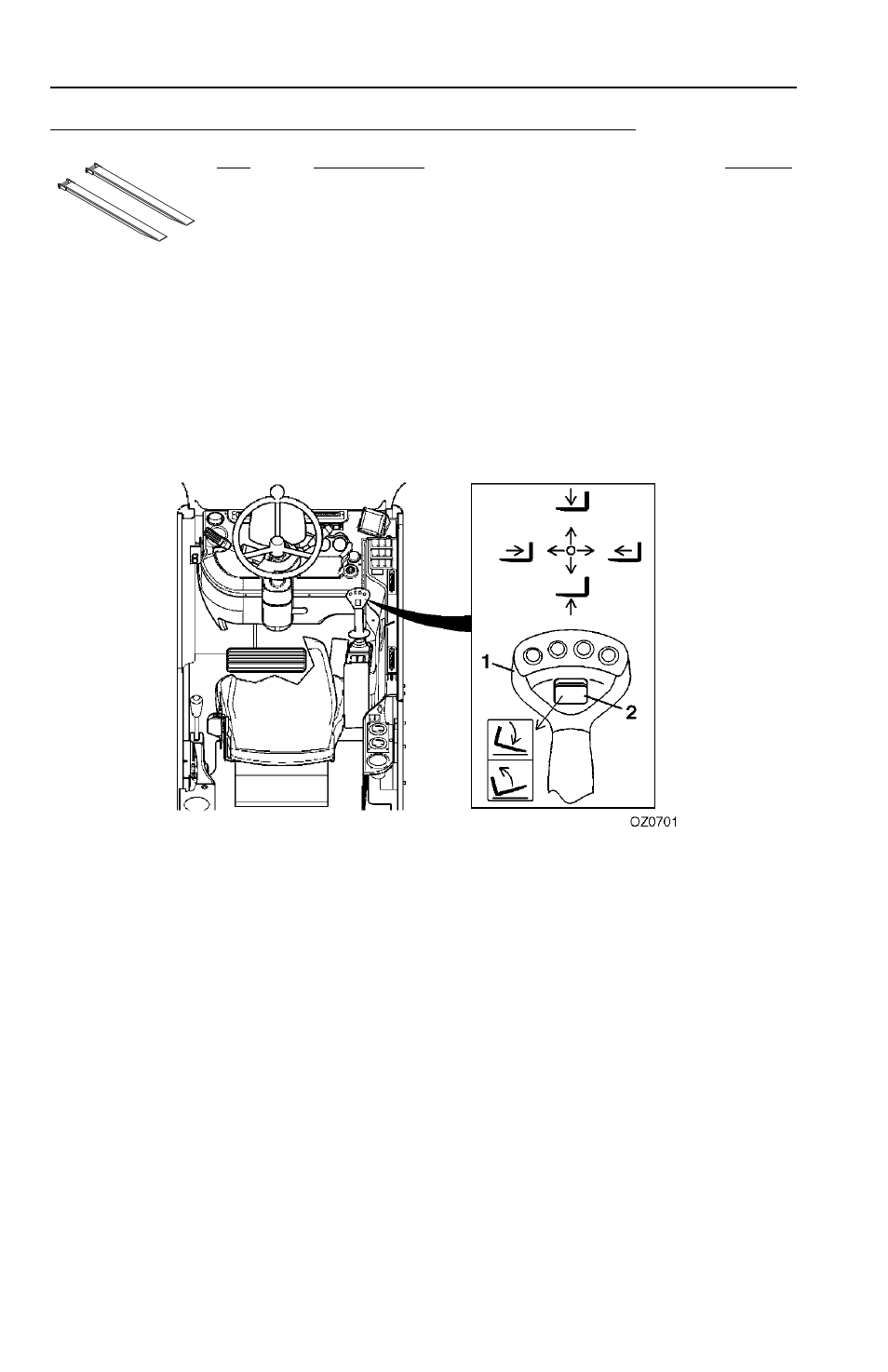

The attachment tilt rocker switch (2) located on the boom joystick (1) controls fork
tilt.
• Push rocker switch down to tilt up.
• Push rocker switch up to tilt down.
Installation Procedure:
• Refer to “Attachment Installation” on page 4-7.
• Ensure length and cross section of the parent fork arm is equal to or exceeds the
parent fork arm blade length stamped into the fork extension.
• Secure the fork extensions to the forks by sliding the fork extension onto the
parent fork and install the retaining pin behind the vertical shank of the fork.
OZ0750
