JLG 4017 Operator Manual - Manual (Page 82)

Section 4 - Attachments
4-16 3121857
Bucket
P/N Description Weight
1001145722 Bucket 0,51 m
3
(AUS) .................... 234 kg (516 lb)
4805670 Bucket 0,8 m
3
................................. 370 kg (816 lb)
1001145724 Bucket 1,0 m
3
(AUS) ...................... 435 kg (959 lb)
4802100 Bucket 1,0 m
3
.............................. 520 kg (1,146 lb)
0930001 Bucket 1,0 m
3
................................. 370 kg (816 lb)
1001145723 Bucket, 4 in 1 - 0,9 m
3
(AUS) ...... 623 kg (1,373 lb)
0930003 Bucket, 4 in 1 - 1 m
3
.................... 819 kg (1,806 lb)
1001145725 Bucket 2,0 m
3
(AUS) ................... 650 kg (1,433 lb)
0930002 Bucket 2,0 m
3
.............................. 650 kg (1,433 lb)
Use Appropriate Bucket Capacity Chart
To determine maximum capacity, refer to “Telehandler/Attachment/Fork Capacity” on
page 4-2.

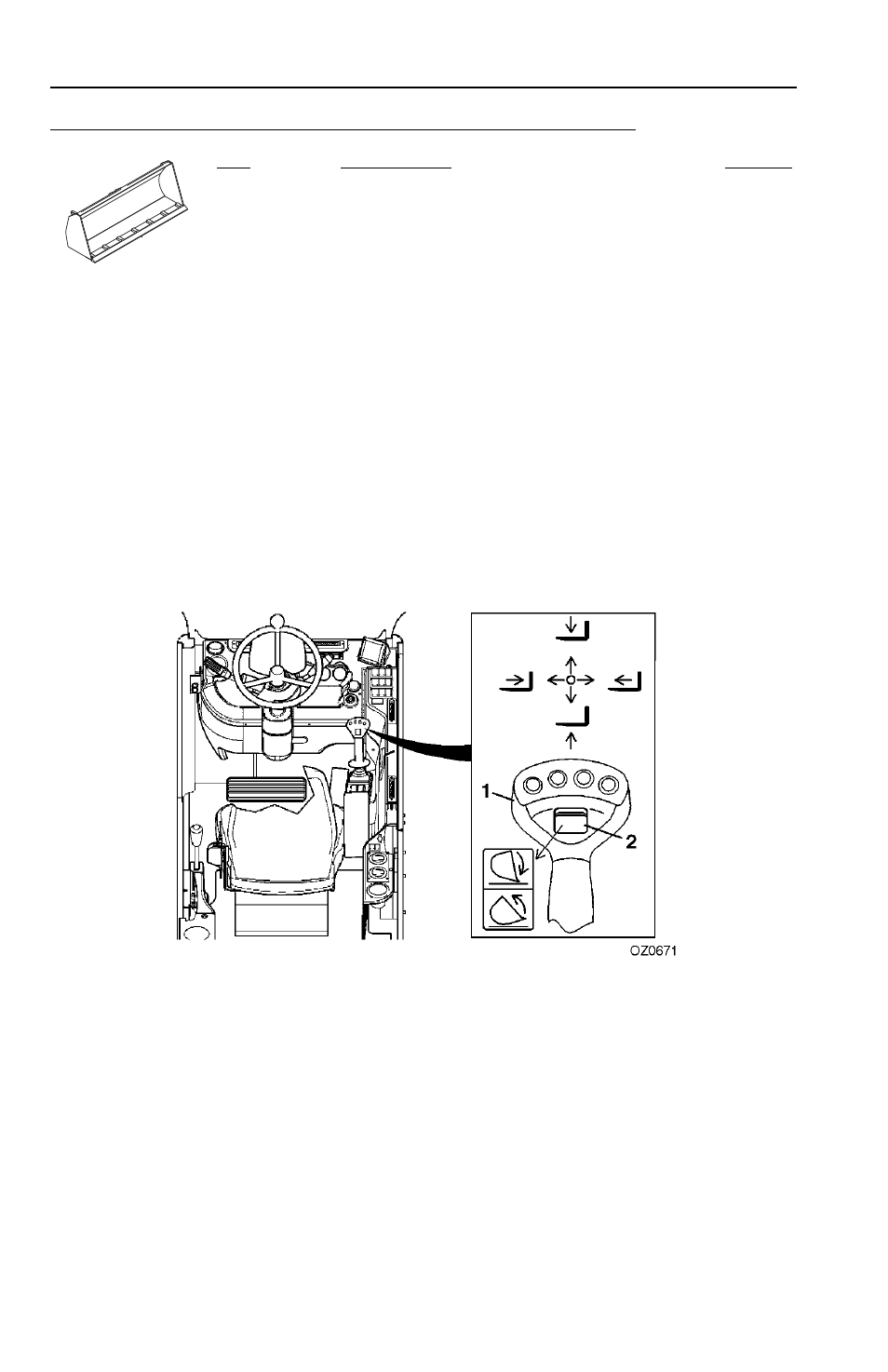

The joystick (1) controls movement of the boom.
The attachment tilt rocker switch (2) located on the boom joystick controls bucket tilt.
• Push rocker switch down to tilt up.
• Push rocker switch up to tilt down.
Installation Procedure:
• Refer to “Attachment Installation” on page 4-7.
OZ0730
