Section 4 - Attachments
4-6 3121857
Example
A contractor owns a model xxxx telehandler with a fork carriage. He knows this
attachment may be used with his model since:
• The attachment model/option number, matches the attachment number on the
capacity chart.
• The capacity chart is clearly marked for model xxxx and corresponds with
machine configuration being used.
Below are examples with various conditions the contractor may encounter and
whether or not the load may be lifted.

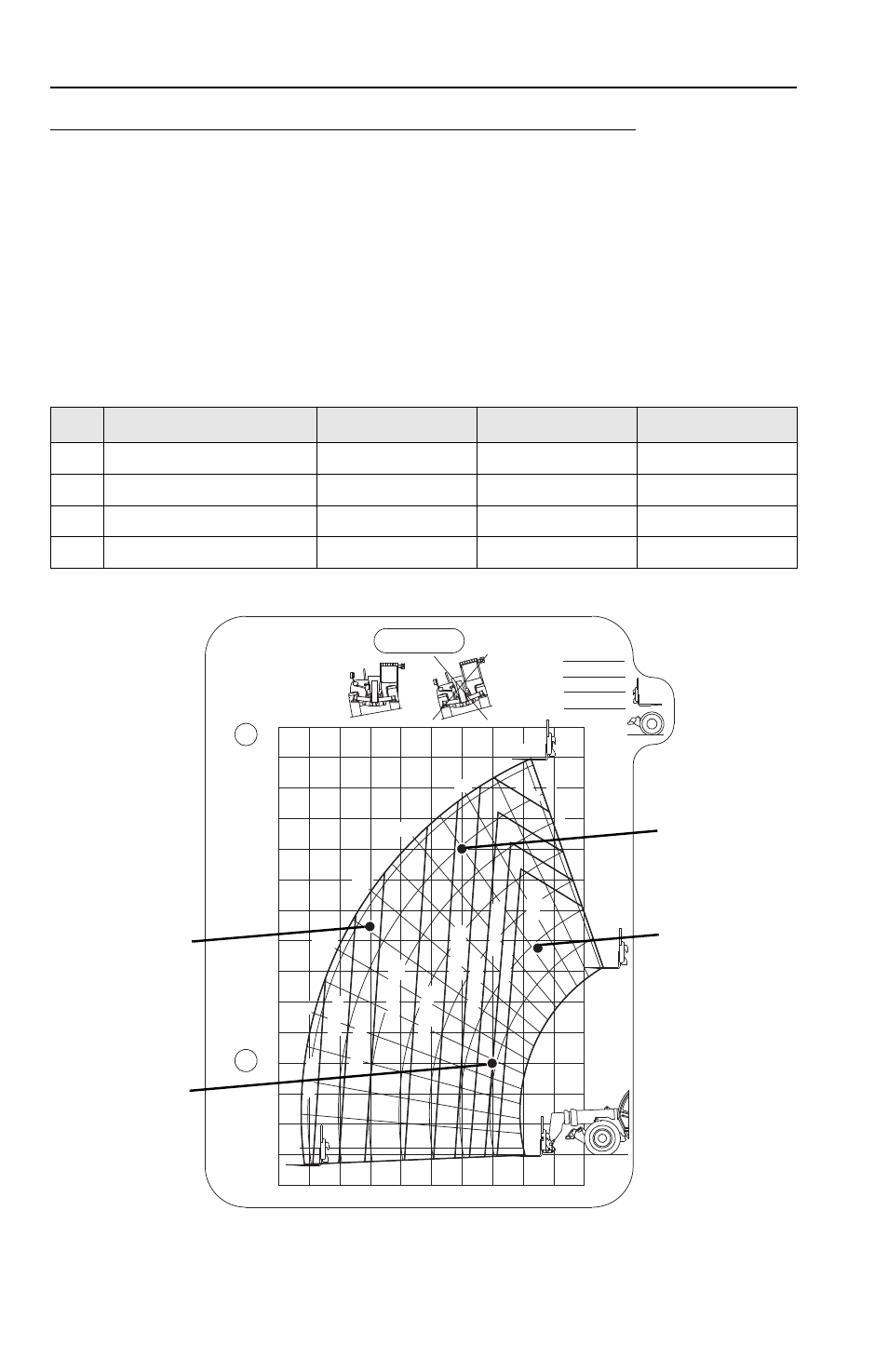

Note: This is a sample capacity chart only! DO NOT use this chart, use the one
located in your operator cab.
Load Weight Distance Height OK to Lift
1 3.000 kg (6,614 lbs) 3 m (9.8 ft) 3 m (9.8 ft) Yes
2 900 kg (1,984 lbs) 7 m (23 ft) 7,5 m (24.6 ft) NO
3 3.750 kg (8,267 lbs) 1,5 m (4.9 ft) 6,75 m (22.1 ft) Yes
4 2.500 kg (5,512 lbs) 4 m (13.1 ft) 10 m (32.8 ft) NO
