SECTION 5 - JLG CONTROL SYSTEM
3121273
– JLG Lift –
5-1
SECTION 5. JLG CONTROL SYSTEM
5.1 HAND HELD ANALYZER
Diagnostic Port
The diagnostic port to connect the Hand Held Analyzer is
located behind the hydraulic cover (machine left side) at
or near the ground control station as shown in Figure 5-2.
To Connect the Hand Held Analyzer:
1. Connect the four pin end of the cable supplied with
the analyzer, to the diagnostic port and connect the
remaining end of the cable to the analyzer.
NOTE: The cable has a four pin connector at each end of
the cable; the cable cannot be connected back-
wards.
2. Power up the Control System by turning the lower
key to the platform position and pulling both emer-
gency stop buttons on.
men u:
PRESS ENTER
HELP:
Analyzer Display
Escape Key
To return home or access
previous menu
Enter Key
Stores and selects Top Level, Sub
Level, and item menus
Left & Right Arrow Keys
Used to move between Top Level,
Sub Level, and item menus
Up & Down Arrow Keys
Value Selector

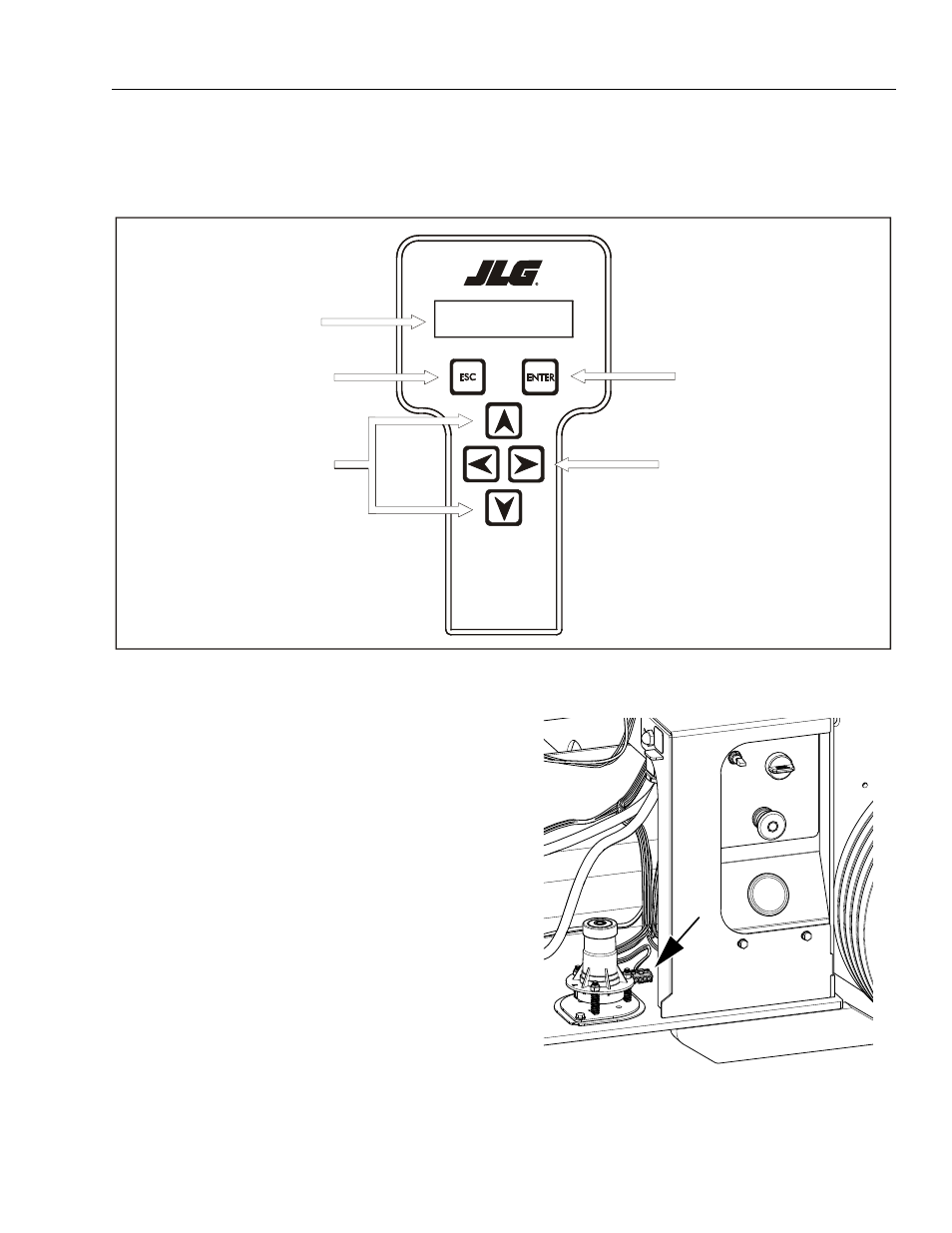

Figure 5-1. Hand Held Analyzer
Figure 5-2. Diagnostic Port Location
