SECTION 4 - HYDRAULICS
4-16 – JLG Lift – 3121273

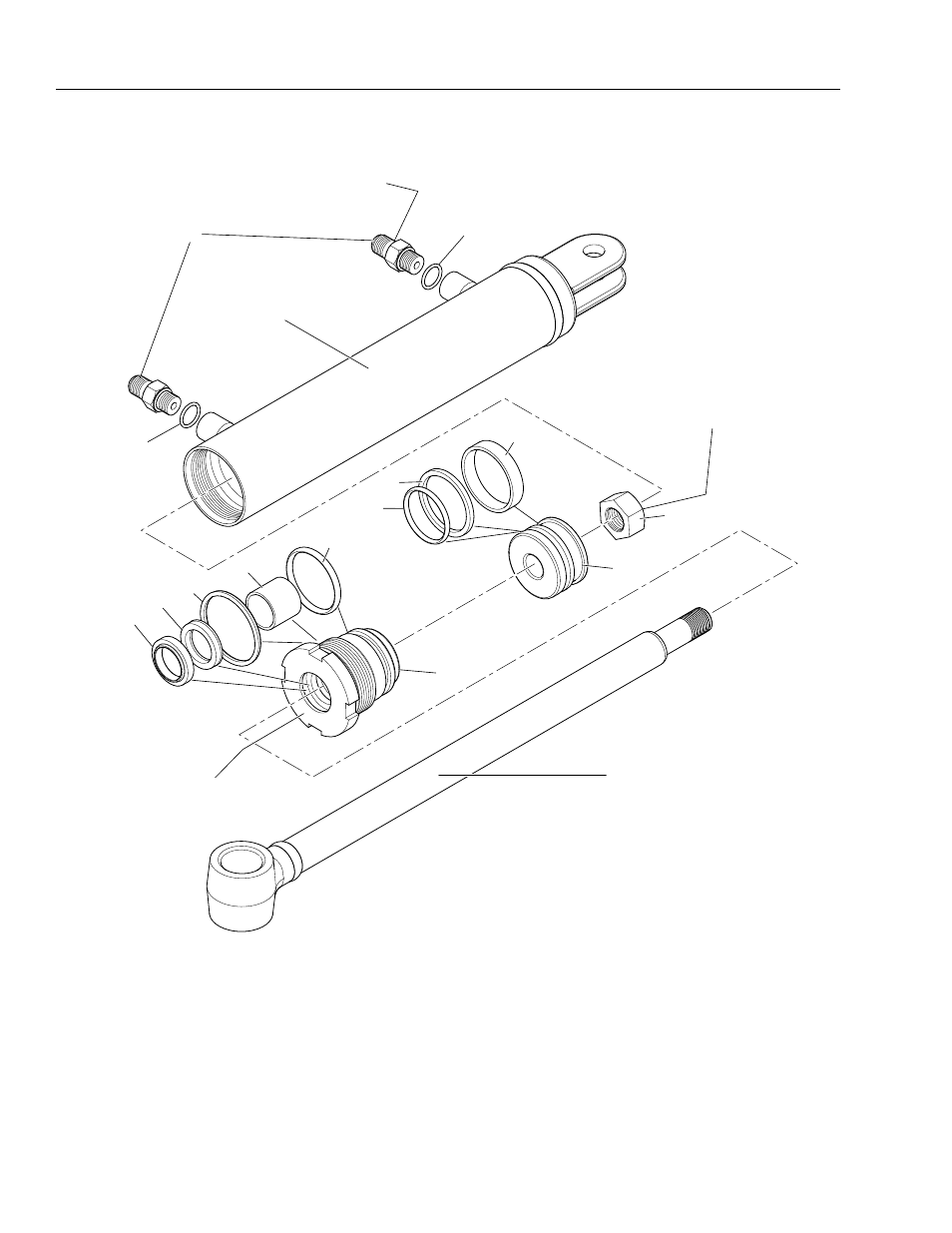

Figure 4-16. 3248RS/10RS - Steer Cylinder
1. Cylinder Barrel
2. Cylinder Rod
3. Head
4. Wiper Seal
5. Rod Seal 6. O-Ring
7. Wear Ring
8. O-Ring
9. Piston
10. Piston O-Ring
11. Piston Seal
12. Wear Ring
13. Nut
14. Hose Fittings
15. O-Ring
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Torque: 97 - 119 ft. lb.
Torque: 13 ft. lb.
131 - 161 Nm
17.6 Nm
Torque: 306 - 374 ft. lb.
415 - 507 Nm
(Apply Loctite #262 to threads
before assembly.)
15
15
