SECTION 3 - CHASSIS & SCISSOR ARMS
3121273 – JLG Lift – 3-31
Tightening and Torquing Bolts
If an air impact wrench is used to tighten bolts, extreme
care should be taken to ensure that the bolts are not tight-
ened beyond their specified torque.
The following steps describe how to tighten and torque
bolts or socket head cap screws in a bolt circle.
1. Tighten (but do not torque) bolt "A" until snug.
2. Go to the opposite side of the bolt circle and tighten
bolt "B" until equally snug.
3. Crisscross around the bolt circle and tighten remain-
ing bolts.
4. Now use a torque wrench to apply the specified
torque to bolt "A".
5. Using the same sequence, crisscross around the
bolt circle and apply an equal torque to the remain-
ing bolts.

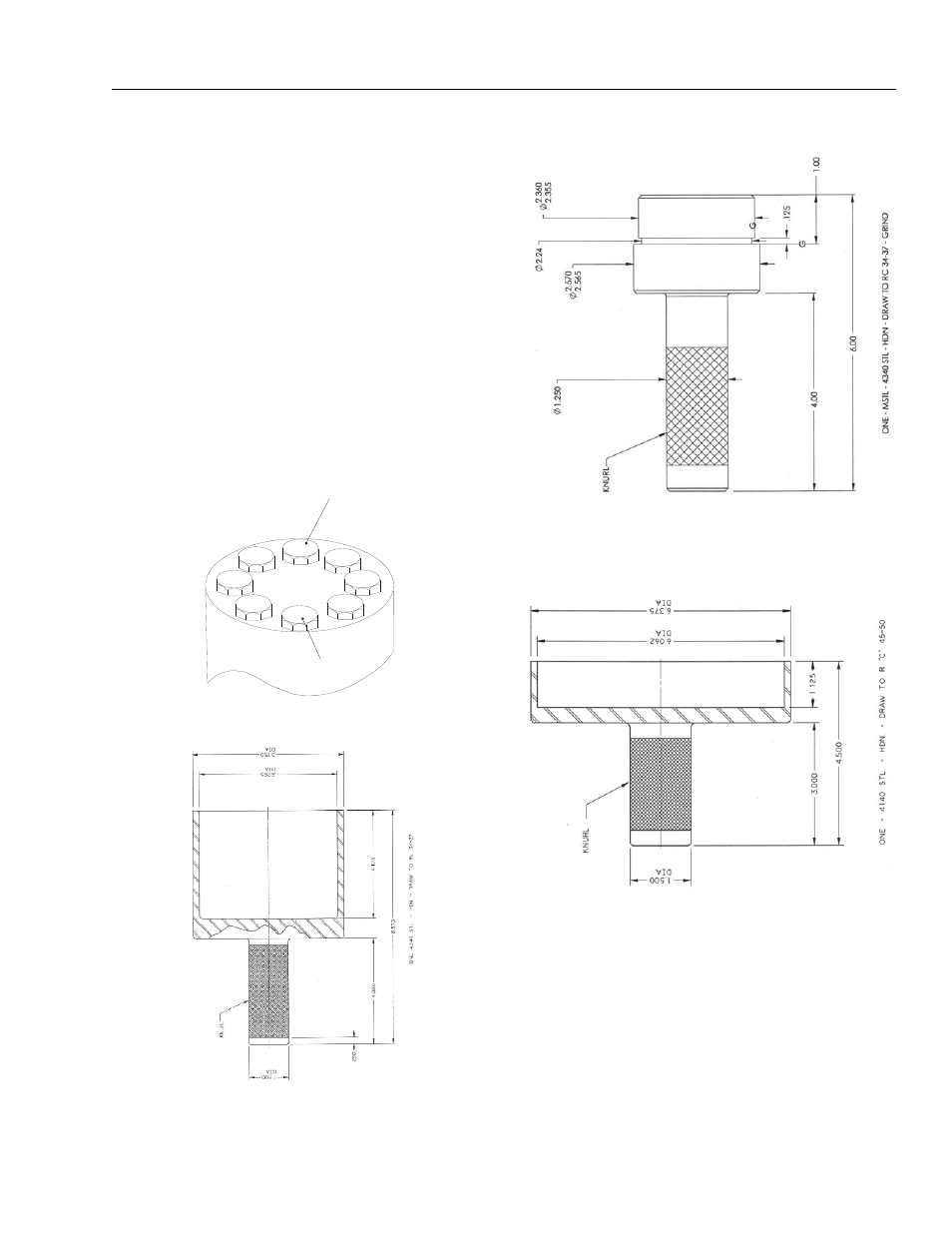

Assembly Tools
BOLT A
BOLT B
Figure 3-32. Assembly Tool 1
Figure 3-33. Assembly Tool 2
Figure 3-34. Assembly Tool 3
