SECTION 3 - CHASSIS & SCISSOR ARMS
3-48 – JLG Lift – 3121273
Joystick Controller
NOTE: For joystick calibration procedure see Joystick Cali-
bration - page 5-5.

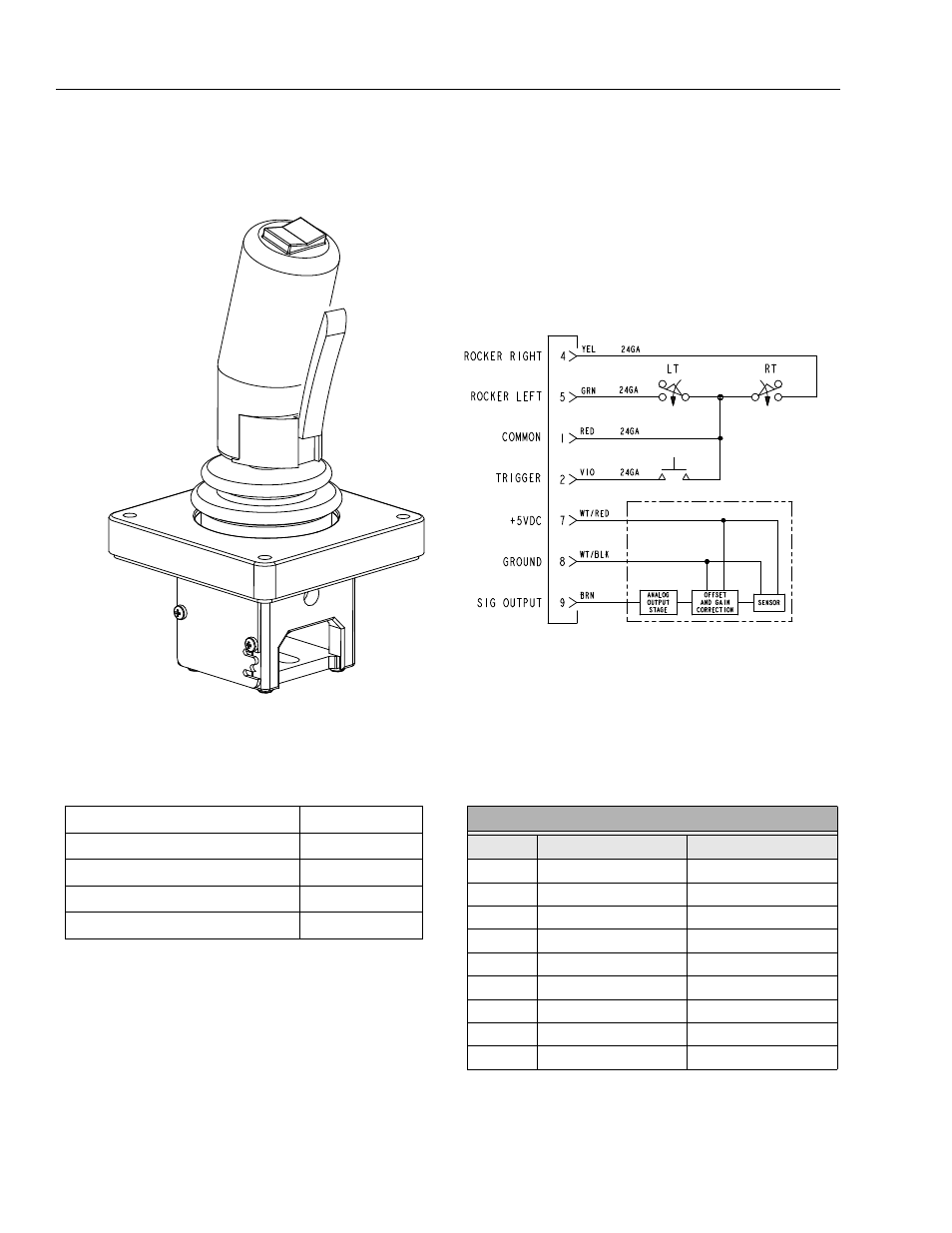

Figure 3-50. Joystick
Table 3-5. Joystick Specifications
Input Voltage +5 (±0.1) VDC
Current Consumption 10 mA @ 12 VDC
Output: Handle Centered 2.5 (±0.1) VDC
Output: Full Positive (Reverse) Deflection 4 (±0.1) VDC
Output: Full Negative (Forward) Deflection 1 (±0.1) VDC
Table 3-6. Connector Chart
CONNECTOR PINOUT
Term Color Function
1 RED HANDLE COM
2 VIOLET TRIGGER N.O.
3 -- SPARE
4 YELLOW ROCKER RT
5 GREEN ROCKER LT
6 -- SPARE
7 WHITE/RED +5VDC
8 WHITE/BLACK GROUND
9 BROWN SIG OUTPUT
