5 Operation
20
Thermomixer comfort / Thermomixer R — Operating Manual

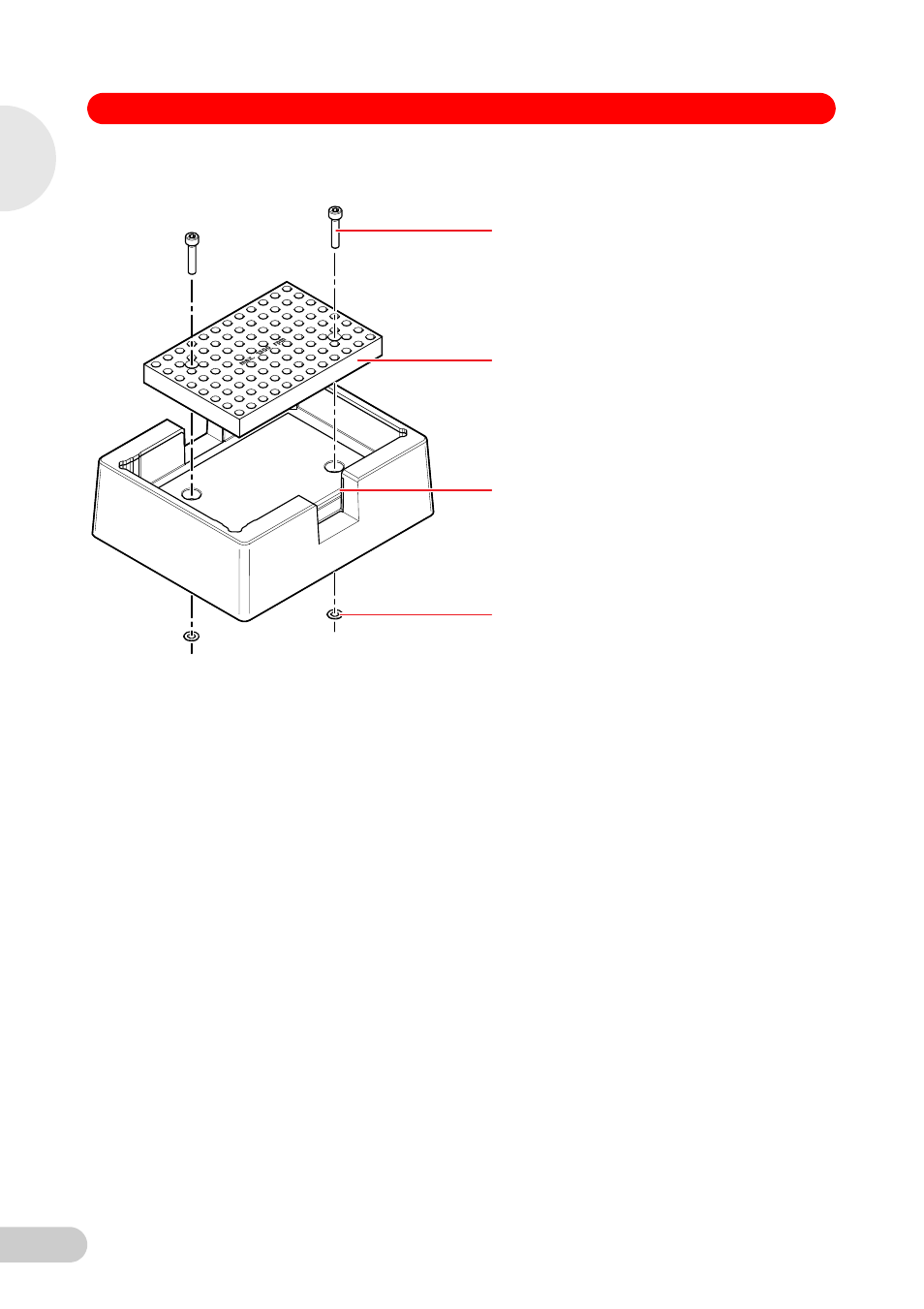

5.2.3 Adapter plate for 0.2 ml tubes or 96 Well PCR plates
1. Remove the lock washers (4) from the short screws in the exchangeable thermoblock.
2. Remove the short screws.
3. Connect the adapter plate (2) to the MTP thermoblock (3) using the long screws (1).
4. Secure the screws from below using the lock washers.
The lock washers prevent the screws from falling out of the bores if the exchangeable
thermoblock is not fixed on the unit.
5. Place the adapter plate on the device with the MTP thermoblock.
6. Tighten the screws.
5.2.4 Exchangeable thermoblocks for slides and slides DC
1. Open the lid.
2. Place the exchangeable thermoblock on the heating/cooling plate with the writing facing the
front.
3. Tighten the screws of the exchangeable thermoblock.
1
2
3
4
