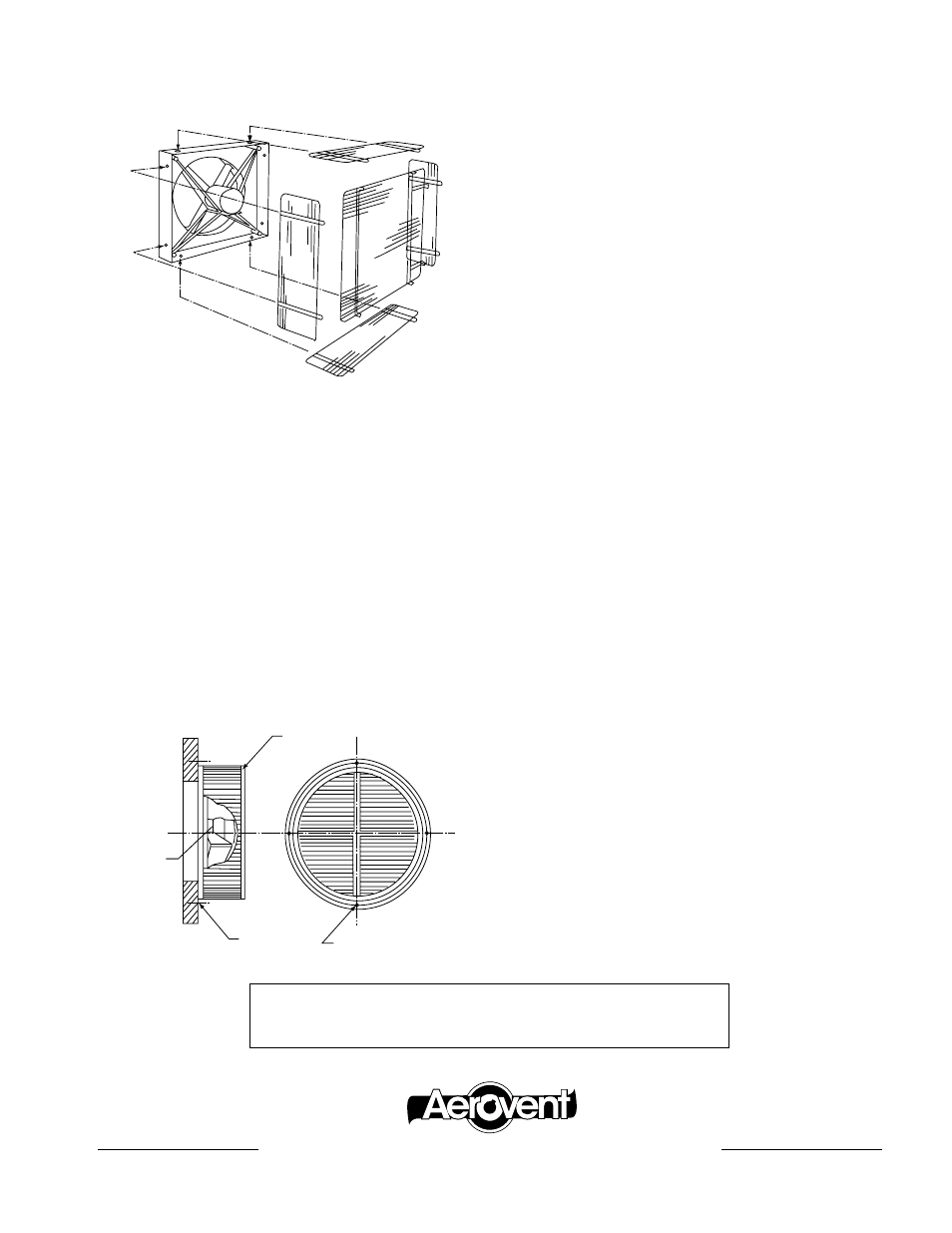

Rear Wire Guard (WWII)
(Motorside)
For Panel Fans
PARTS
(1) Rear Panel
(4) Side Panels
(16) or (24) Hex Head Locknuts
(16) or (24)
5
∕
16
" x 1" Hex Head Capscrews
(32) or (48)
3
∕
8
" I.D. Flat Washers
ASSEMBLY
1. Bolt three sides of guard to rear panel using
5
∕
16
" capscrews, nuts and flat washers.
2. Bolt partially assembled guard to panel fan
using capscrews, nuts and flat washers.
3. Arrange for electrical hook-up to fan motor. Two
methods may be used:
a. Drill out hole in fan panel and route wire or
conduit through opening.
Round Motorside Basket Guard
– OR –
b. Bend or cut side panel wire guard and route
wire or conduit through opening.
4. Assemble fourth side to guard and panel, slid-
ing along conduit or wiring if routing through
guard.
5. Securely tighten all locknuts.
Cleaning Propellers
The propeller in an axial flow fan must be kept
reasonably clean if it is to perform properly. Fans
handling fresh air for ventilating purposes will sel-
dom need cleaning. Fans exhausting process air
should be cleaned as required. Dirt or chemical
deposits will usually build up on a propeller evenly
and they present no problem to performance or
operation until they become thick enough to break
away in crust-like pieces. When this happens, the
propeller may be thrown out of balance and the
resulting vibration could be serious. Accumula-tions
of deposits should be removed by solvent cleaning
or scraping. If the propeller has been coated, be
careful not to cut through the protective covering.
Care and Maintenance
Regular and systematic inspection of all fan
parts is a necessity for good fan maintenance.
A general installation and maintenance bro-
chure (IM 100) has been supplied with this
shipment. It includes fan and motor bear-
ing lubrication, care and replacement of V-belt
drives and taperlock bushing instructions.
CAUTION: Recommended distance between fan blade and
shutter is approximately equal to
1
⁄
3
of the fan’s diameter.
4MWG06/11
Attach
Guard
To Wall
4 Mounting
Holes
Ring Fan
Basket Guard
