SPORT BAR
2013 NISSAN PATHFINDER
Page 4 of 5 4/16/13 (DP)

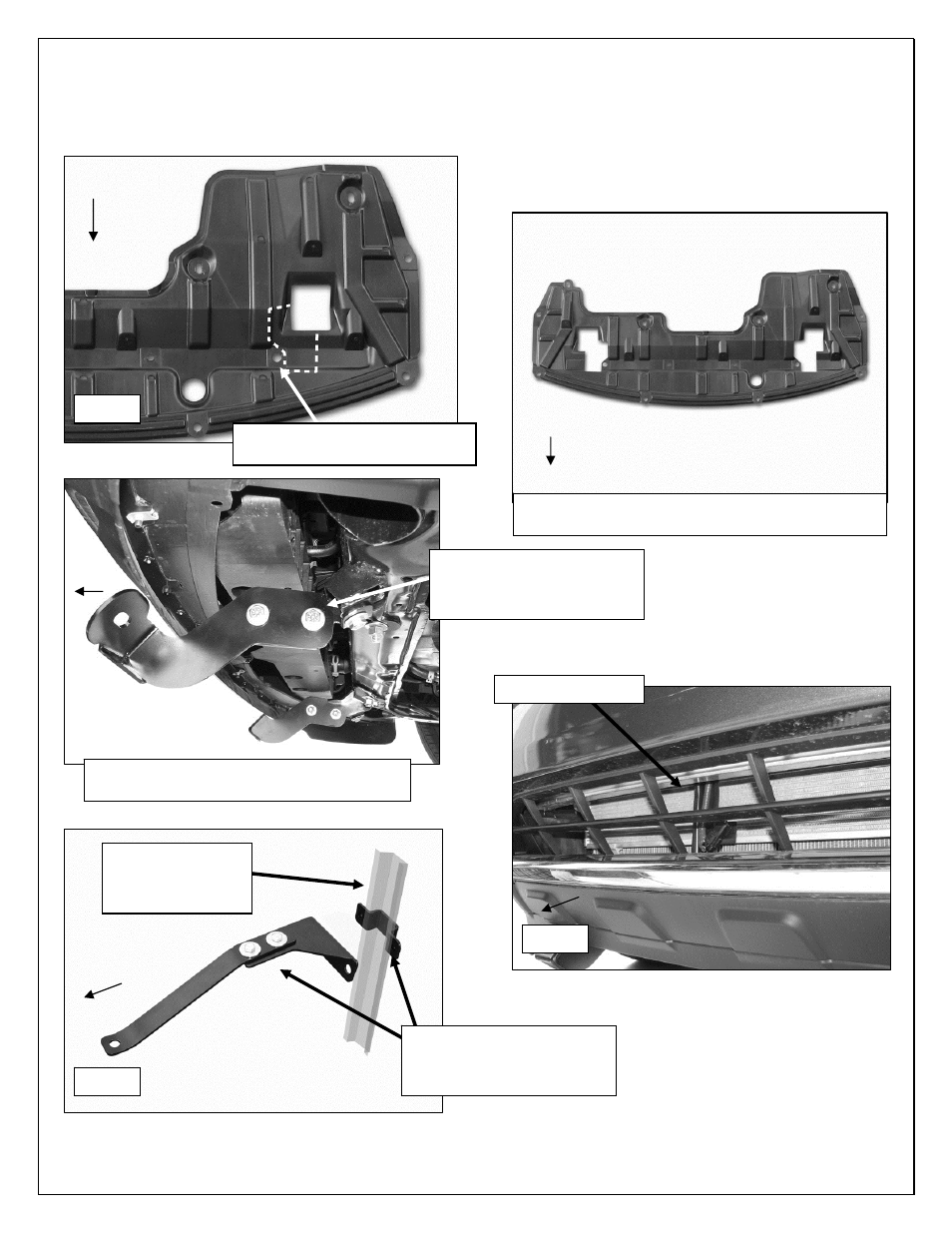

Driver Side Installation Pictured
Do not cut mounting locations
off of splash guard
Front
Front
Front
Front
(2) 10mm x 30mm Hex Bolt
(4) 10mm Flat Washers
(2) 10mm Nylon Lock Nut
Fig 7
(Fig 8) Cut out area illustrated for example only.
Actual area may differ by model and year
(Fig 9) Driver side pictured without splash
guard for instruction purposes only
Fig 10
Fig 11
(4) 6mm x 20mm Hex Bolts
(4) 6mm Lock Washers
(4) 6mm Flat Washers
Radiator support
behind center of
grille opening
Front
Radiator support
