9. STOWING & TRANSPORTING
9 - 1 P/N 0191482
„
STOWING
At the end of each work day (or in preparation for
lifting, towing, or storage) a qualified operator
should put the TB 120 into its stowed position
then lock it.

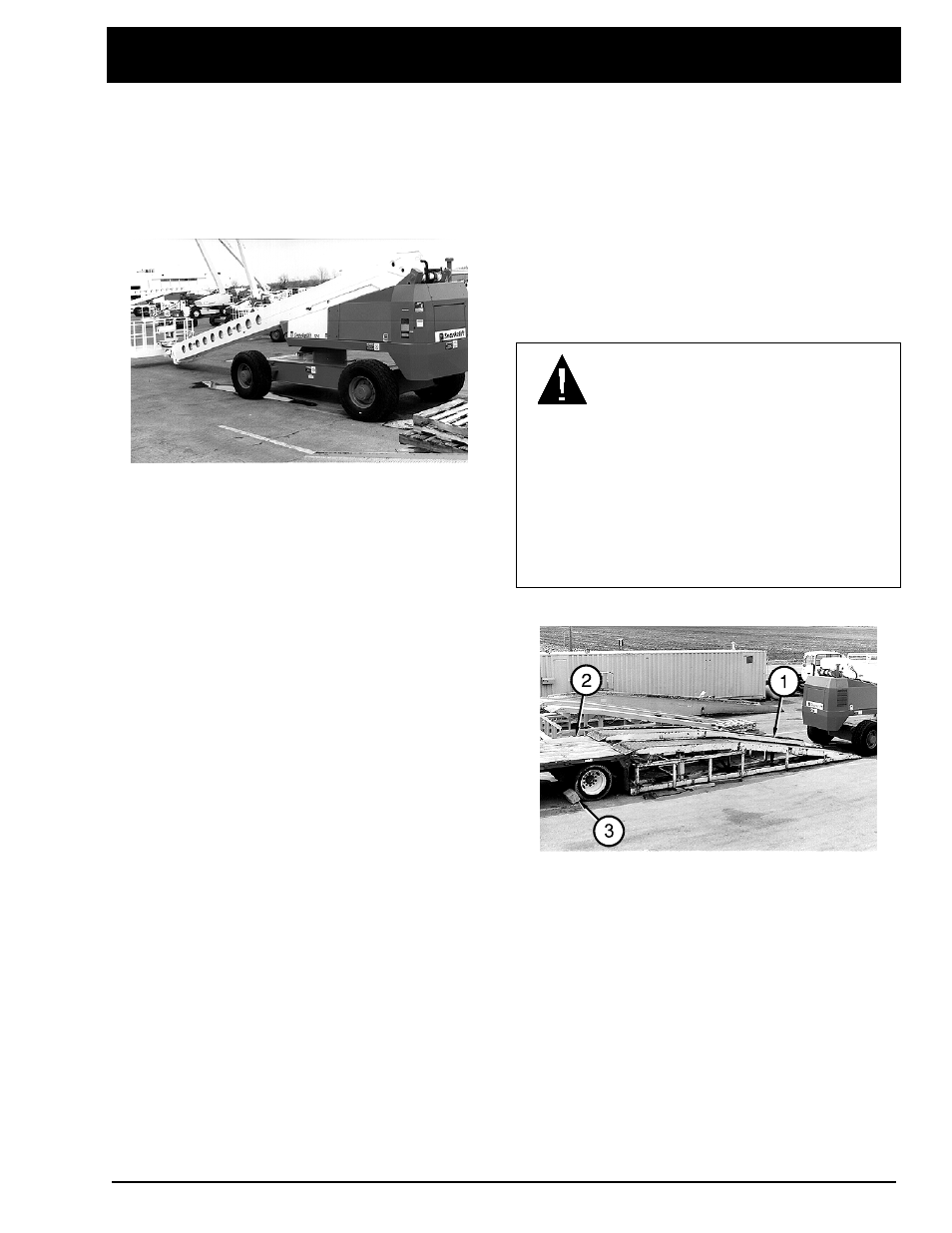

The correct stowed position is shown here.
To bring the TB 120 into the stowed position use
the controls on the ground-control box to:
1. Fully retract the main boom.
2. Fully lower the main boom.
3. Center the main boom between the rear
wheels.
4. The rear axles should be completely retracted
and the jack should be completely up.
To lock the TB 120:
1. If the engine has just been under load and is
hot, set the ENGINE THROTTLE to LO and let
the engine idle for one minute.
2. Set the MASTER KEY SWITCH to OFF,
remove the key, and close the ground-control
access door.
3. Set the BATTERY switch to OFF and lock the
BATTERY switch.
4. Close the door to the battery compartment.
5. (OPTION - LPG) For machines equipped with
LPG, close the valve on the LPG-tank
(completely screwed in).
6. Close and latch all other doors.
„
TRANSPORTING
The user assumes all responsibility for choosing
the proper method of transportation, and the
proper selection and use of transportation and
tie-down devices, making sure the equipment
used is capable of supporting the weight of the
aerial platform and that all manufacturer’s
instructions and warnings, regulations and safety
rules of their employer, the DOT and/or any other
state or federal law are followed.
Y Y
Trailering
D A N G E R
A TB 120 weighs approximately 39,500
pounds (17,917 kg). Loading ramps must be
able to support that weight. Transport trailers
must be able to safely transport that weight.
Do not load a TB 120 on grades over 25%;
with the turntable rotated with respect to the
chassis; or on ramps with poor traction,
uneven surfaces, or steps.
To safely drive a TB 120 onto a transport trailer:
1. Visually inspect the alignment of the loading
ramp (1) and the truck or trailer (2). They should
both be on the same straight line.
2. Chock (3) the wheels of the truck or trailer so
it cannot roll away form the loading ramp (1)
while the TB 120 is being loaded.
3. Set the ground-control box for platform
operation.
